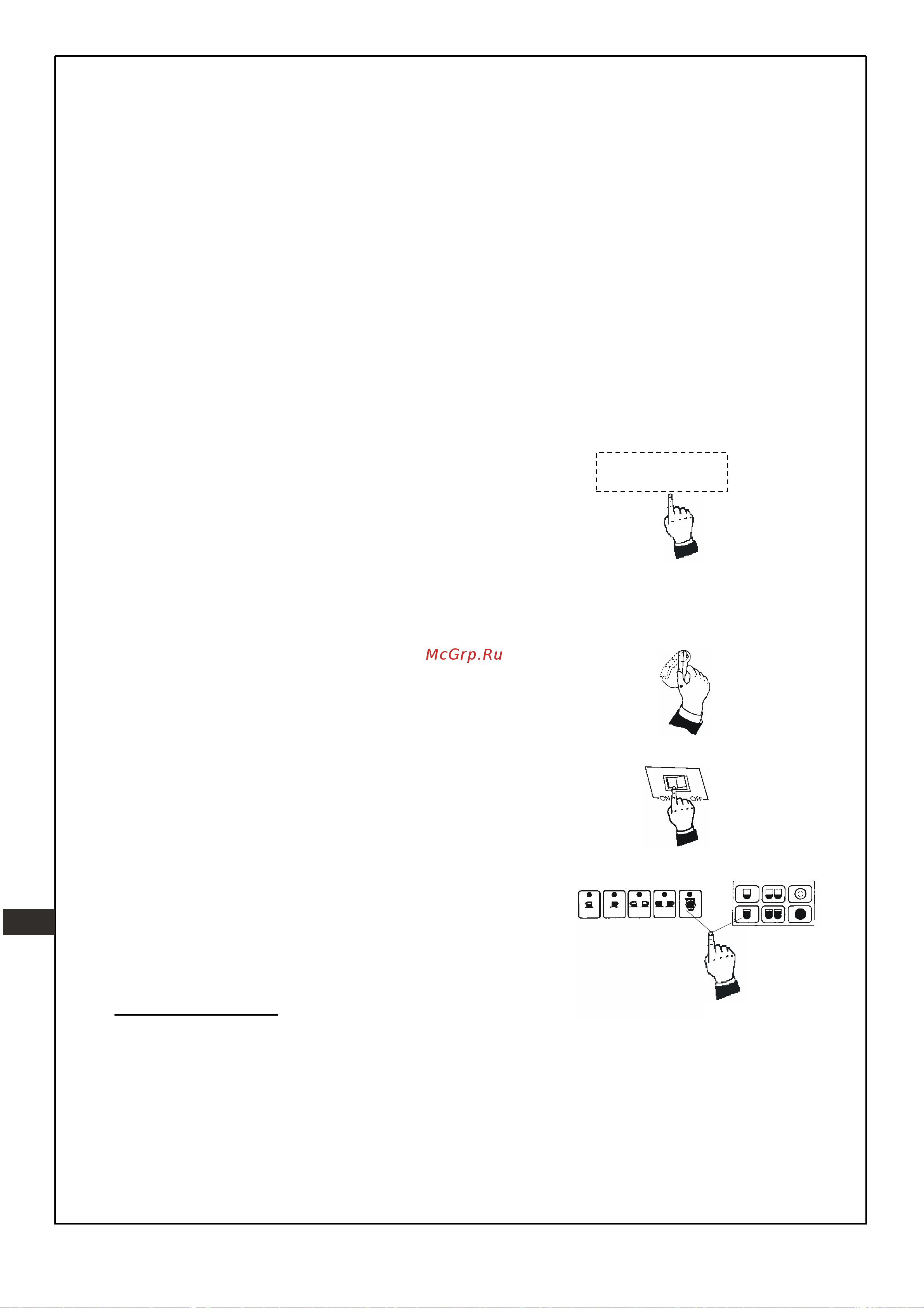

OPERATION OF THE MACHINE:
PROCEDURE FOR OBTAINING ESPRESSO CREAM COFFEE.- Fill the filter (2k) with 1 or 2 coffees
and smooth it in the coffee press (1 c) on the grinder.
Check that the machine is in operational condition (green zone) as shown on the gauge (2l).
Activate the coffee dispensing head using the buttons or controls depending on the model. (See
page12).
Check the coffee output as follows:
* For coffees of 50 - 60 cl. it should take a minimum of 20 seconds and a maximum of 35 seconds.
* If the times vary considerably from the above, adjust the grinder control.
* It is advisable that the cups used to serve the coffee are warmed to guarantee that the coffee
maintains its temperature and to prevent premature cooling.
MACHINES WITH AUTOMATIC HOT WATER
DISPENSERS: (Fig. 1).
a) To programme the amount of hot water enter in
programming as part a) page 10
b)
Press the hot water button “INFUSIONS” and
allow the water to be dispensed to the desired
level. Press the button again to stop.
c) Go out from programming as per part C) page 10
d) Check correct dosage by pressing button
“INFUSIONS” on the keypad.
SEMIAUTOMATIC MODEL (Mechanical head) (Fig. 2)
Turn the lever until the required amount of coffee is
obtained. Then back to the original position to stop
dispensing coffee.
SEMIAUTOMATIC MODEL (Electrical head) (Fig. 3)
Press the switch until the required amount of coffee is
obtained. Press again to stop dispensing coffee.
AUTOMATIC ELECTRONIC MODEL (Fig 4)
The button 1, 2, 3, 4 correspond to the four possible
selected amounts of water, button 5 is for continuous
dispensing. Stop dispensing by pressing any of the
buttons 1, 2, 3, 4, 5.
ILLUMINATION OF PUSH BUTTON LEDS
Three possible modes
MODE 1 – The LED’s corresponding to the coffee and hot water push buttons are switched off. When any
one of the buttons for coffee or hot water is pressed, the LED on that button lights up.
MODE 2 – The LED’s on the push buttons for coffee and hot water remain on. When one of the coffee
push buttons is pressed, the LED for that button remains on, whilst the LED’s of the other push buttons for
the same group switch off. In the case of the hot water button, when this is pressed, its LED switches off
whilst hot water is being dispensed.
MODE 3 – The LED’s of the push buttons for coffee and hot water remain on. When one of the coffee
push buttons is pressed, the LED for that button switches off, whilst the LED’s of the other push buttons for
the same group remain on. In the case of hot water, when the button is pressed, its LED switches off
whilst hot water is being dispensed. This mode is the inverse of MODE 1
12
INFUSIONS
Hot water button
1
1
2
2
3
3
4
4
5
5
Figure 1
Figure 4
Figure 3
Figure 2
GB
