ECHO INCORPORATED ECHO DM-6110 (деталировка) [10/19] Throttle lever
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [10/19] Throttle lever](/views2/2002318/page10/bga.png)
DM-6110(20)ET

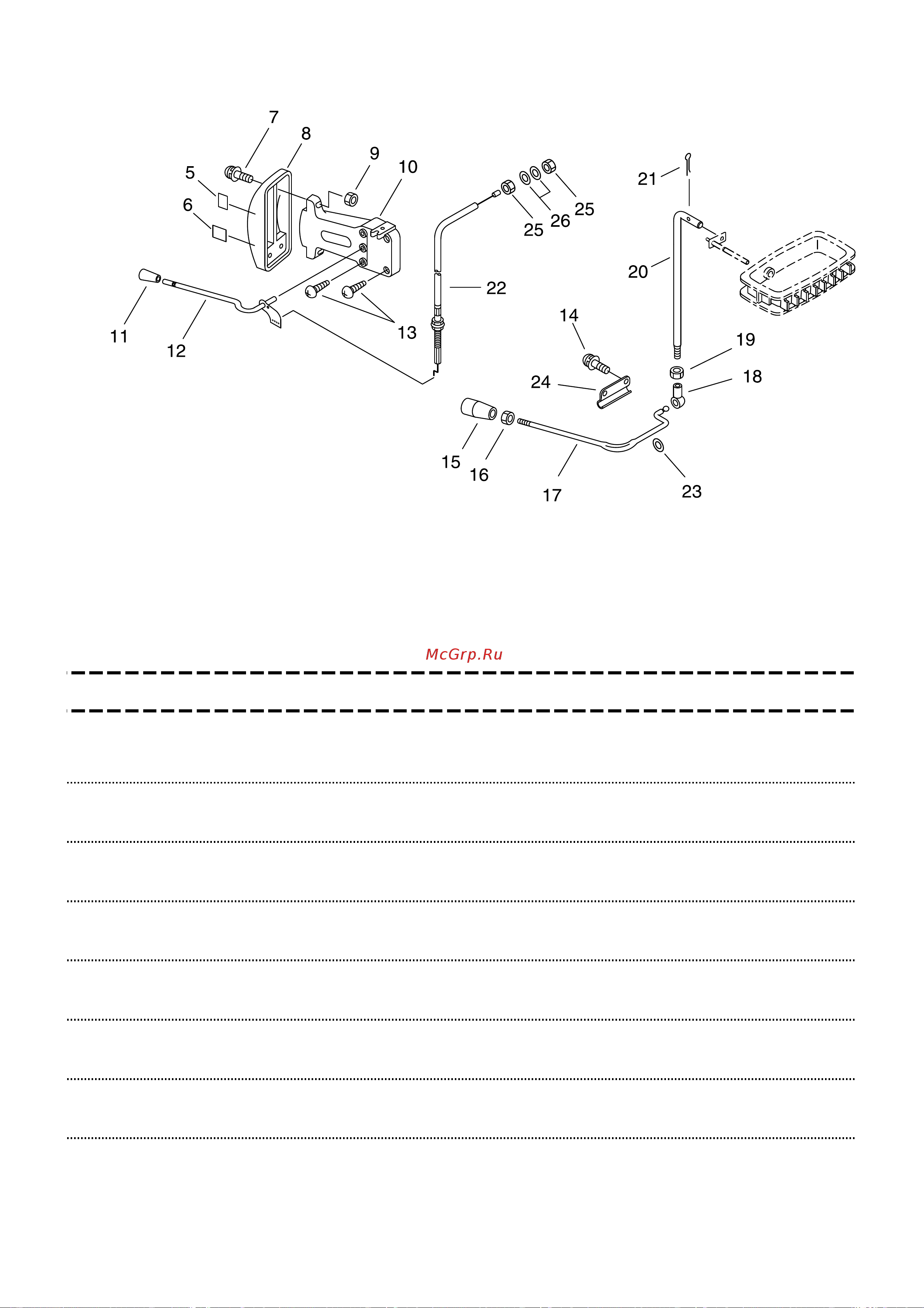

6. THROTTLE LEVER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 890348-05060 1
LABEL, SPEED
6 890157-39130 1
LABEL, SWITCH
7 900292-05025 2
SCREW 5*25
5*25 SUS
8 701111-06213 1
DIAL
9 900504-00005 2
NUT 5B
5B
10 701112-06414 1
BRACKET, DIAL
11 E151-000010 1
KNOB,LEVER
12 C453-000131 1
LEVER,THROTTLE
13 900286-05025 4
SCREW 5*25 SUS
5*25 SUS
14 900292-05014 2
SCREW 5*14
5*14 SUS
15 701007-06610 1
KNOB, LEVER
16 900502-00006 1
NUT 6 (3N)
3N6
17 701010-06610 1
LEVER, CONTROL
18 701020-05510 1
CONNECTOR
19 900500-00005 1
NUT 5
5
20 701014-06510 1
ROD, CONTROL LEVER
21 605612-06510 1
PIN, SNAP
22 V430-001330 1
CABLE,BOWDEN
23 900600-00008 1
WASHER 8
8
24 701028-06210 1
HOLDER, STOPPER
25 900503-00006 2
NUT (3N 6*0.75)
3N 6*0.75
26 900600-00006 2
WASHER 6
6
- 9 -
