ECHO INCORPORATED ECHO DM-6110 (деталировка) [9/19] Harness
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [9/19] Harness](/views2/2002318/page9/bg9.png)
DM-6110(20)ET

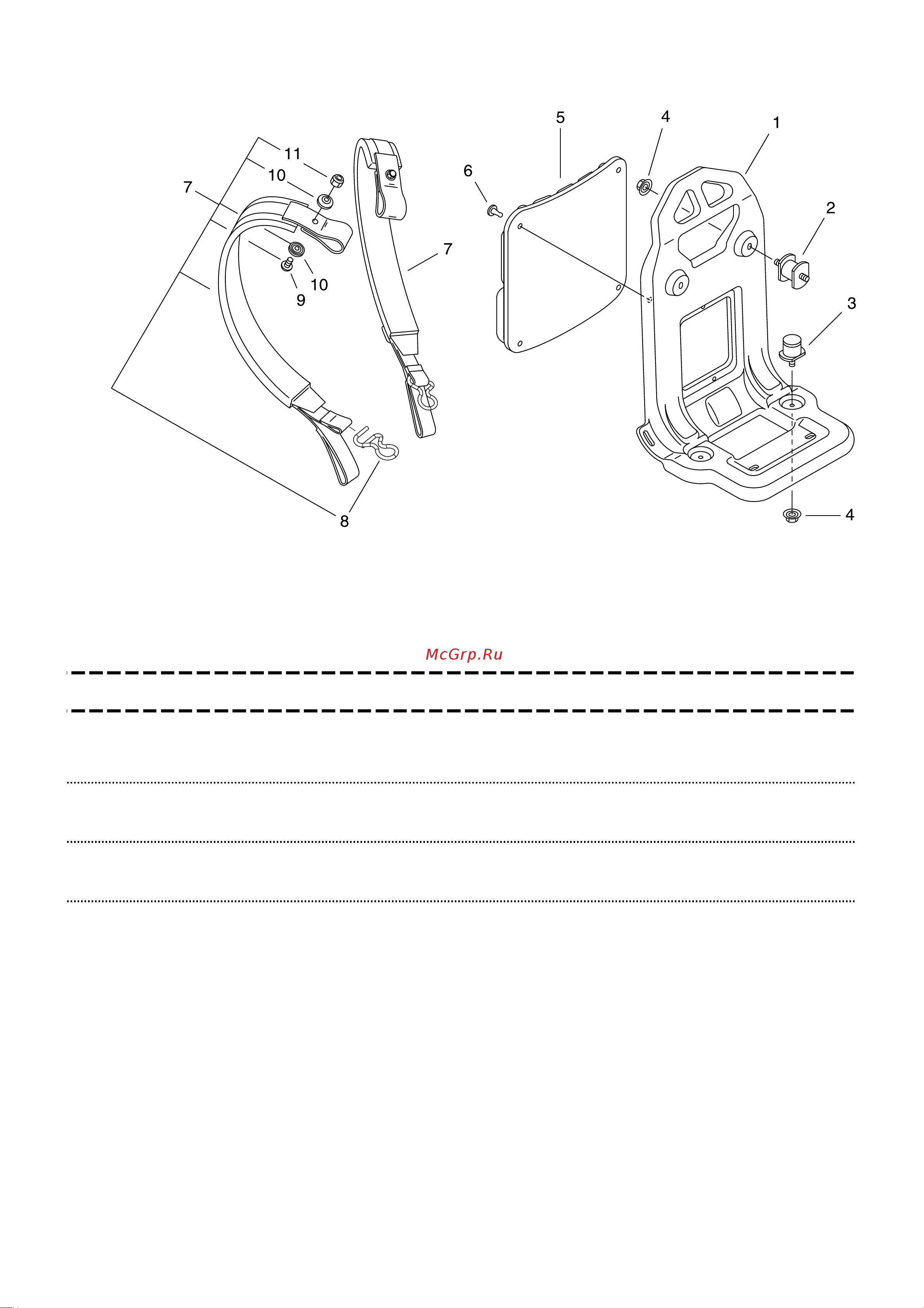

5. HARNESS
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 300010-07312 1
FRAME, BACKPACK
2 200910-06210 2
CUSHION
3 200916-03210 2
CUSHION
4 250916-06210 4
NUT
5 300111-14010 1
CUSHION, KNAPSACK
6 300333-06160 4
CLIP
7 P021-041100 2
HARNESS,ASM BACKPACK
8 + C646-000120 2
RING, HARNESS
9 + 900216-05016 2
SCREW, 5*16
5*16
10 + 300328-03210 4
WASHER, HARNESS
11 + 900560-00005 2
NUT, LOCK 5
5
- 8 -
