ECHO INCORPORATED ECHO DM-6110 (деталировка) [2/19] Cylinder crankcase piston
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [2/19] Cylinder crankcase piston](/views2/2002318/page2/bg2.png)
DM-6110(20)ET

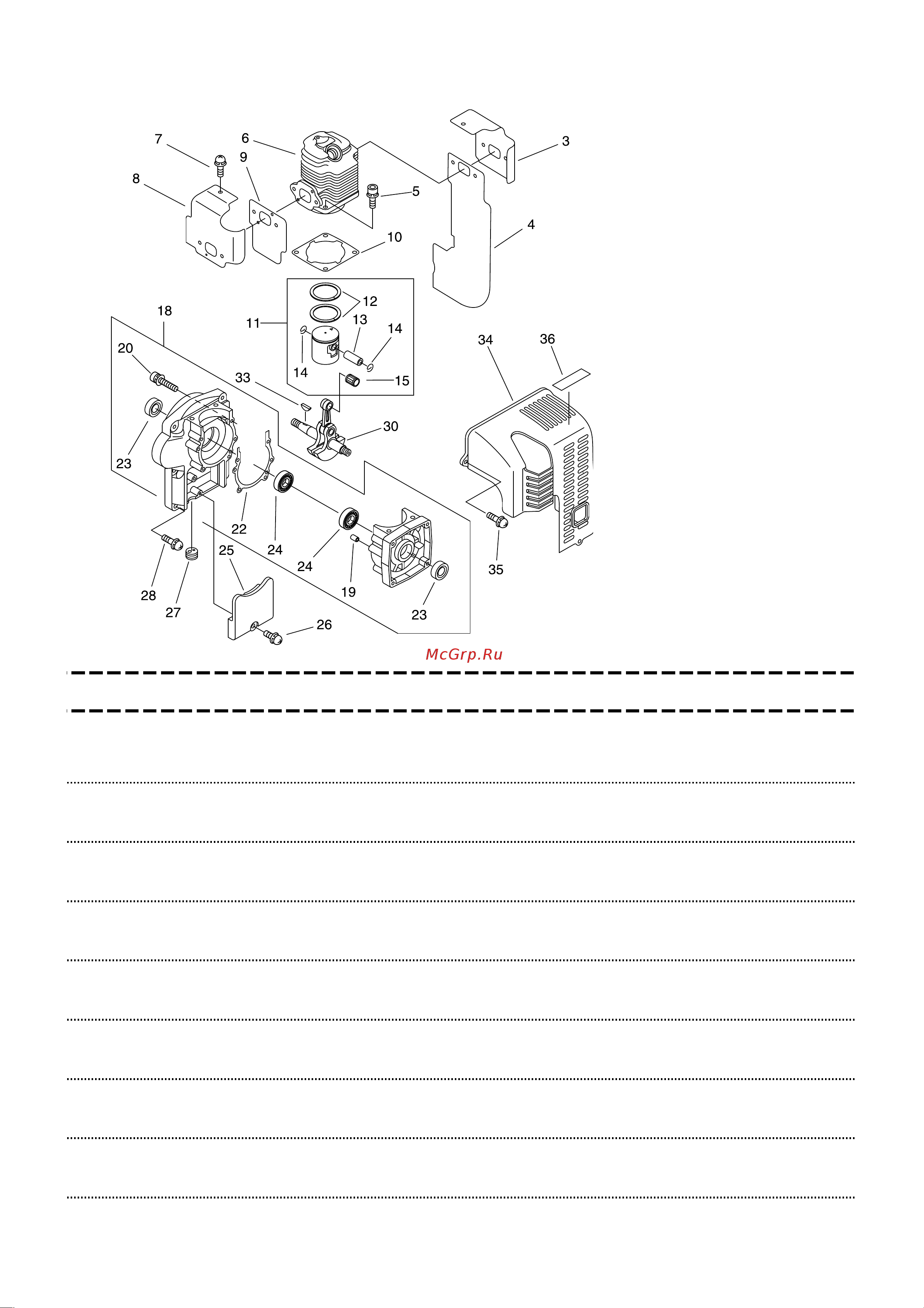

1. CYLINDER, CRANKCASE, PISTON
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
3 101514-06210 1
COVER, CYLINDER
4 145512-06211 1
GASKET, MUFFLER
5 900162-05022 4
BOLT, H.S. 5*22
5*22 W,SW
6 A130-000111 1
CYLINDER
7 900242-05010 1
SCREW 5*10
8 A160-000680 1
COVER,CYLINDER
9 V103-001540 1
GASKET,INTAKE
10 101010-06211 1
GASKET, CYL. BASE
11 P021-038580 1
PISTON KIT
12 + 100011-08360 2
RING, PISTON
13 + 100013-06210 1
PIN, PISTON
14 + V580-000010 2
RING,END
10
15 + 100012-12330 1
BEARING, NEEDLE
18 P021-014700 1
CRANKCASE SET
19 + 100215-03930 2
PIN, DOWEL
20 + 900162-05040 4
BOLT, H.S. 5*40
5*40 W,SW
22 + 100242-10721 1
GASKET, CRANKCASE
23 + 100213-00310 2
OILSEAL
ISCD 15 25 7
24 + 900810-36202 2
BEARING, BALL 6202
6202/C3
25 159129-08261 1
COVER, DUST
26 900238-05018 1
SCREW 5*18
5*18
27 150112-00310 1
BUSHING
28 900292-05025 6
SCREW 5*25
5*25 SUS
30 100100-06210 1
CRANKSHAFT ASSY
33 900323-03014 1
KEY WOODRUFF
3*14
- 1 -
