ECHO INCORPORATED ECHO DM-6110 (деталировка) [6/19] Magneto starter
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [6/19] Magneto starter](/views2/2002318/page6/bg6.png)
DM-6110(20)ET

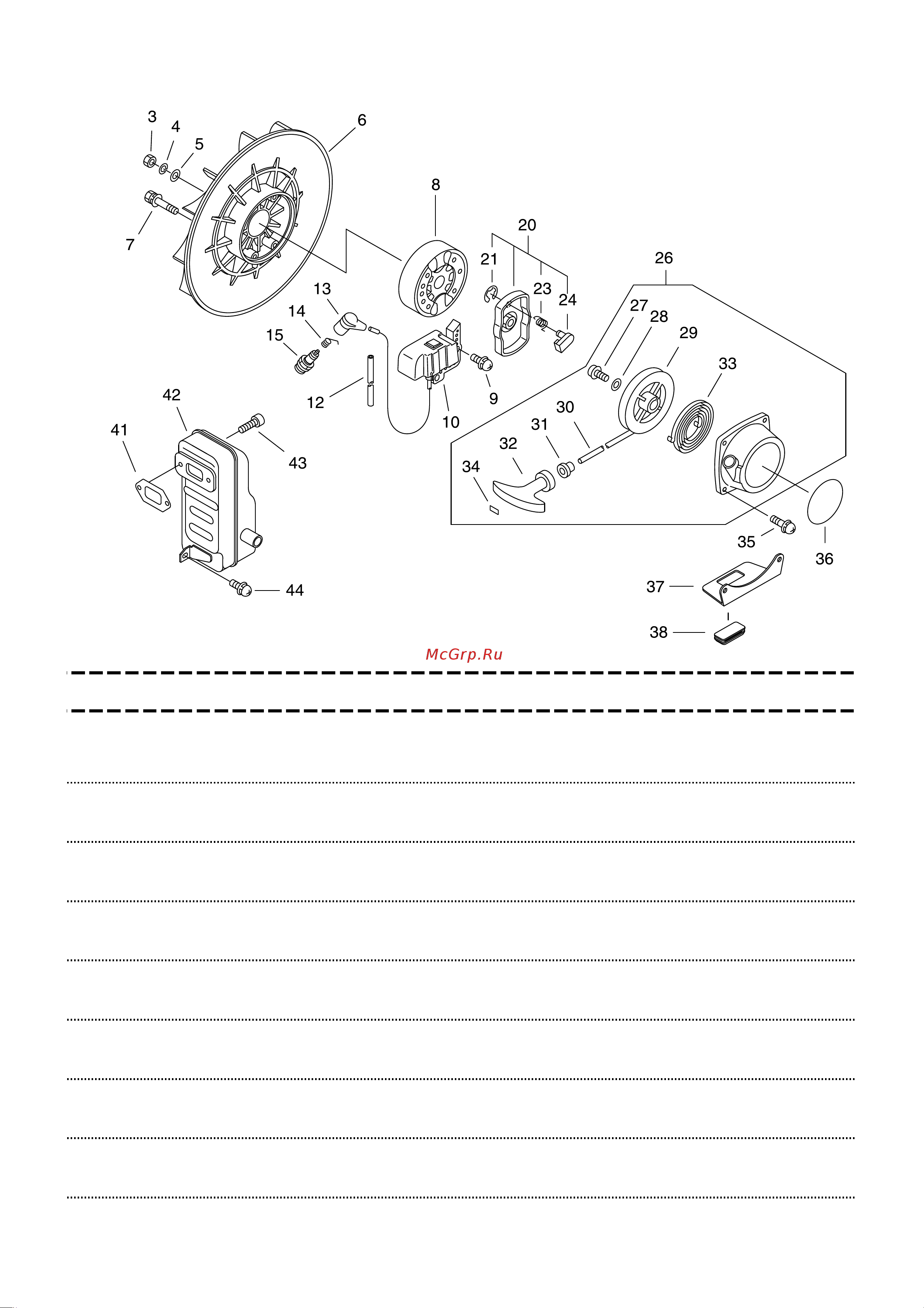

3. MAGNETO, STARTER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
3 900501-00010 1
NUT 10*1.25
10*P1.25
4 900605-00010 1
WASHER, SPRING 10
10
5 900602-00010 1
WASHER 10(10.5*21*2)
10.5*21*2
6 200005-06210 1
FAN
7 900148-05035 4
BOLT 5*35
5*35
8 156800-06161 1
ROTOR, MAGNETO
9 900238-05018 2
SCREW 5*18
5*18
10 156601-06211 1
C.D. IGNITION MODULE
12 156611-04260 1
TUBE
6*8*340
13 159012-03433 1
CAP, SPARK PLUG
14 159011-03432 1
COIL, SPARK PLUG
15 159010-19630 1
PLUG, SPARK (BPM-7Y)
BPM-7Y
20 177202-06210 1
PAWL ASSY, STARTER
21 + P022-002100 1
E-RING
4
23 + 177234-40630 1
SPRING, RETURN
24 + 177218-40630 1
PAWL, STARTER
WHITE
26 177200-06210 1
STARTER ASSY
27 + 177236-40630 1
SCREW
28 + P022-022280 1
WASHER
29 + P022-022290 1
DRUM, STARTER
30 + 177226-11120 1
ROPE, STARTER
3.8*1400
31 + 177227-42030 1
GUIDE, ROPE
32 + 177228-11120 1
GRIP, STARTER
33 + 177220-11120 1
REWIND SPRING
34 + 177246-11120 1
CLIP, STARTER ROPE
- 5 -
