DM-6110(20)ET

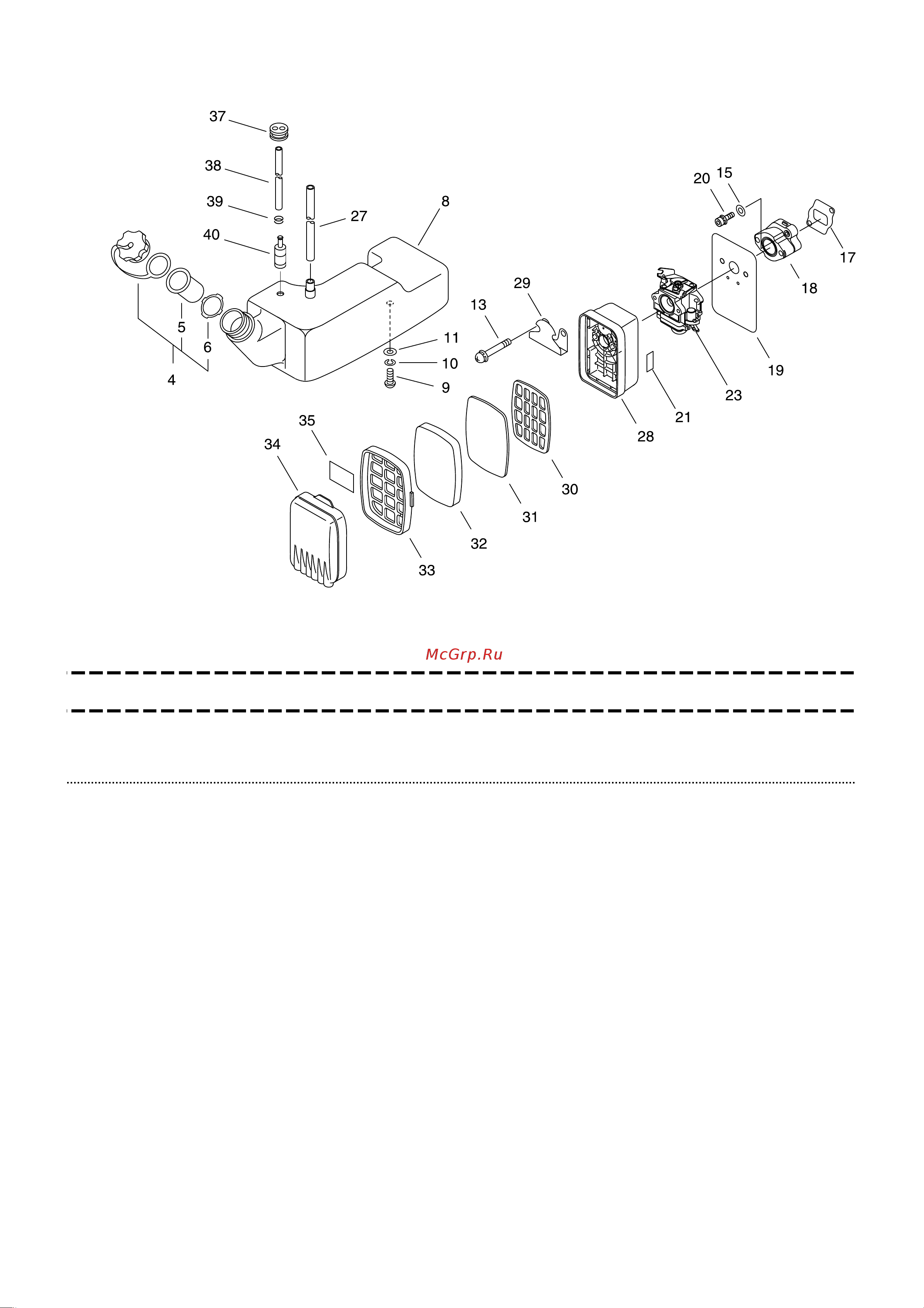

2. AIR CLEANER, FUEL TANK
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
38 V471-000770 1
PIPE
39 V490-001230 1
CLIP
40 131205-19831 1
STRAINER, FUEL
- 4 -
