DM-6110(20)ET

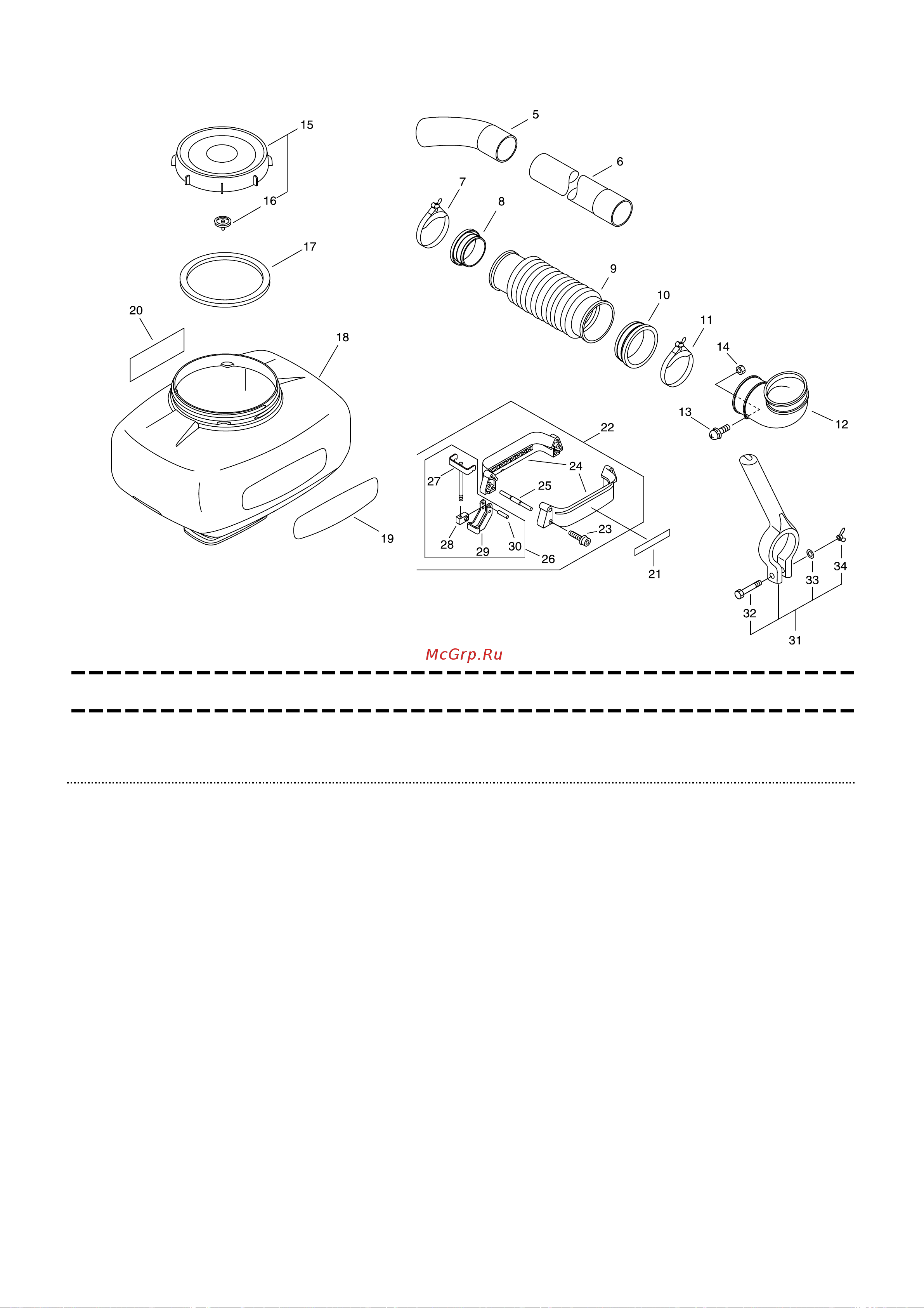

7. CHEMICAL TANK
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
30 ++ 900333-70380 2
PIN, STRAIGHT
31 C040-000020 1
HANDLE,FRONT
32 + 900100-06045 1
BOLT 6*45
6*45
33 + 900600-00006 1
WASHER 6
6
34 + 900525-00006 1
NUT, WING 6
BN6
- 11 -
