DM-6110(20)ET

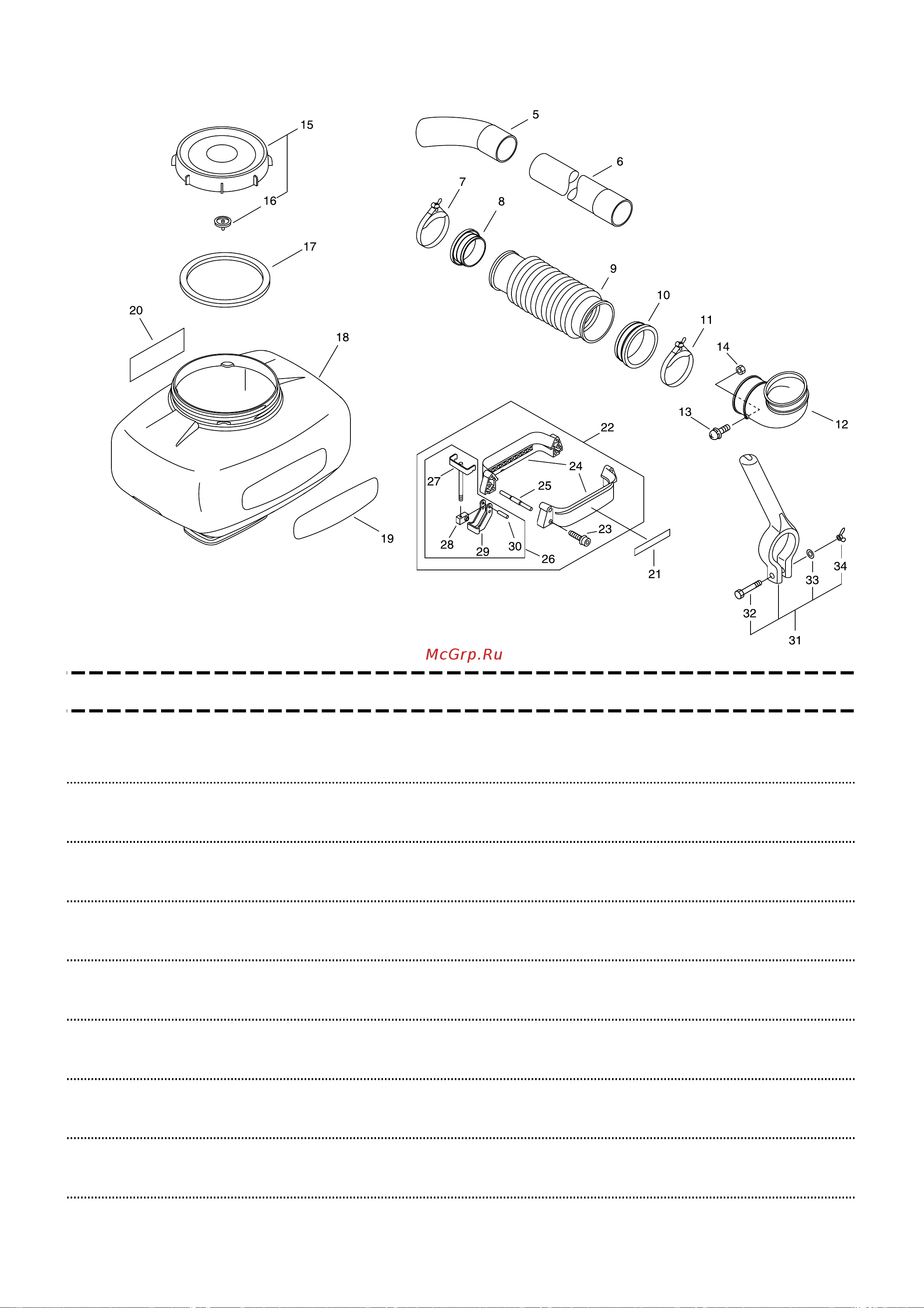

7. CHEMICAL TANK
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 210023-01060 1
PIPE, CURVED (BL)
6 E165-000600 1
PIPE,BLOWER
7 V495-001171 1
BAND
8 210032-04110 1
PACKING, FLX. PIPE
9 210013-04111 1
PIPE, FLEXIBLE
10 210036-04110 1
GASKET, FLX. PIPE
11 V495-001201 1
BAND
12 210011-05510 1
ELBOW, BLOWING
13 900242-05014 1
SCREW 5*14
14 900500-00005 1
NUT 5
5
15 250001-05610 1
CAP, CHEMICAL TANK
16 + 250013-00310 1
CAP, INSIDE
17 250011-02011 1
PACKING
18 250017-08013 1
TANK, CHEMICAL
23 L
19 X502-000440 1
LABEL,ECHO
20 890160-09461 1
LABEL, CAUTION
21 X503-008360 1
LABEL,MODEL
DM-6110
22 270000-06311 1
HOLDER ASSY, C.TANK
23 + 91148-05035 4
BOLT HS FL TAPP
M5*35
24 + 250910-06310 2
HOLDER, C. TANK
25 + 250914-06210 2
PIN, TANK HOLDER
26 + 250902-06310 1
BRACKET ASSY, C.TANK
27 ++ 250915-06310 2
BOLT, TANK HOLDER
28 ++ 250930-06210 2
CONNECTOR, BRACKET
29 ++ 250932-06210 2
BRACKET, TANK
- 10 -
