ECHO INCORPORATED ECHO DM-6110 (деталировка) [7/19] Magneto starter
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [7/19] Magneto starter](/views2/2002318/page7/bg7.png)
DM-6110(20)ET

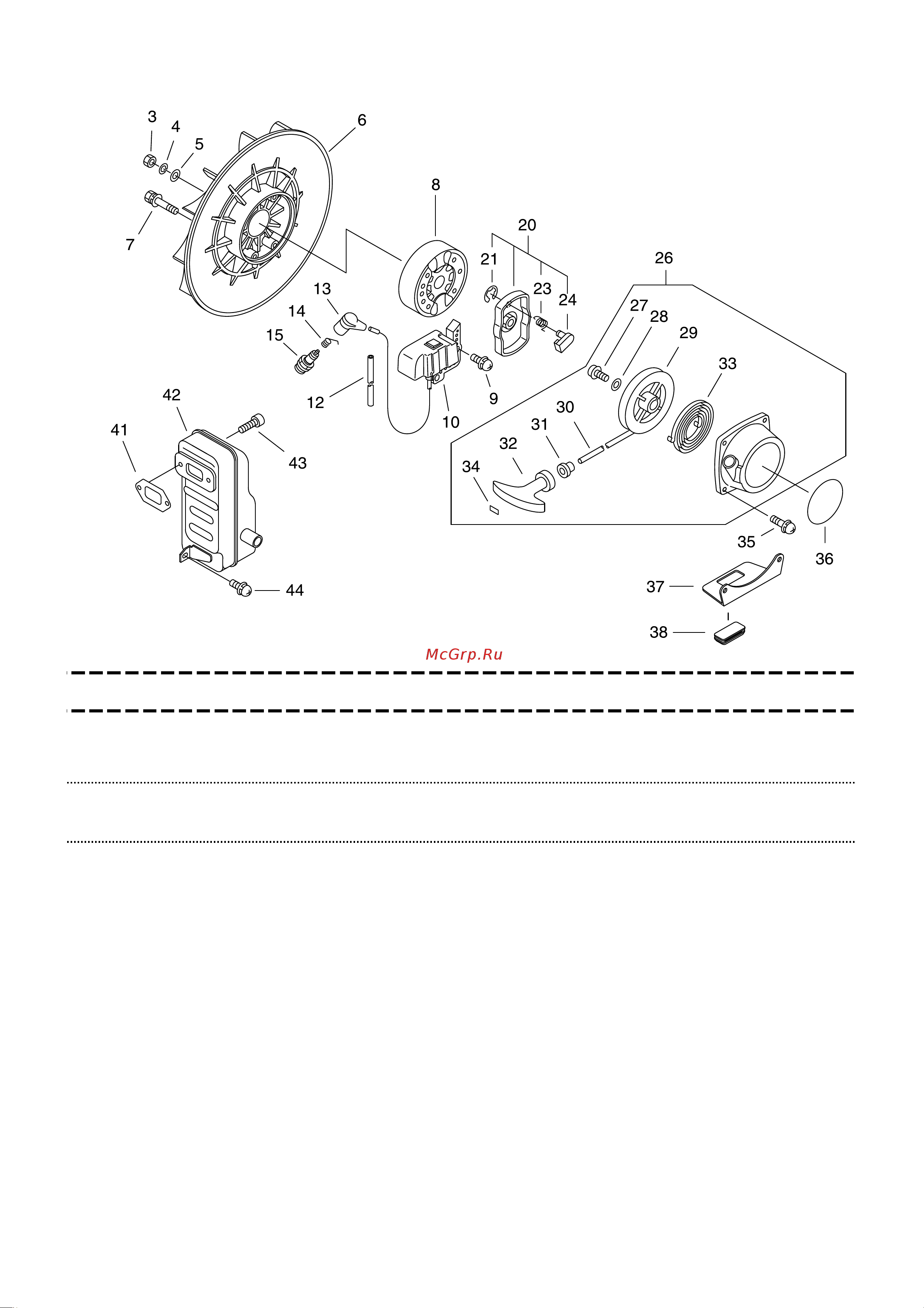

3. MAGNETO, STARTER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
35 900292-04018 4
SCREW 4*18
4*18 SUS
36 X502-000780 1
LABEL,ECHO
37 300029-06210 1
PLATE, ANGLE
38 305117-03360 1
CUSHION
41 145510-06211 1
GASKET, MUFFLER
42 P021-008630 1
MUFFLER ASY
43 900105-06020 2
BOLT, H.S. 6*20
6*20
44 900242-05014 1
SCREW 5*14
- 6 -
