ECHO INCORPORATED ECHO DM-6110 (деталировка) [4/19] Air cleaner fuel tank
![ECHO INCORPORATED ECHO DM-6110 (деталировка) [4/19] Air cleaner fuel tank](/views2/2002318/page4/bg4.png)
DM-6110(20)ET

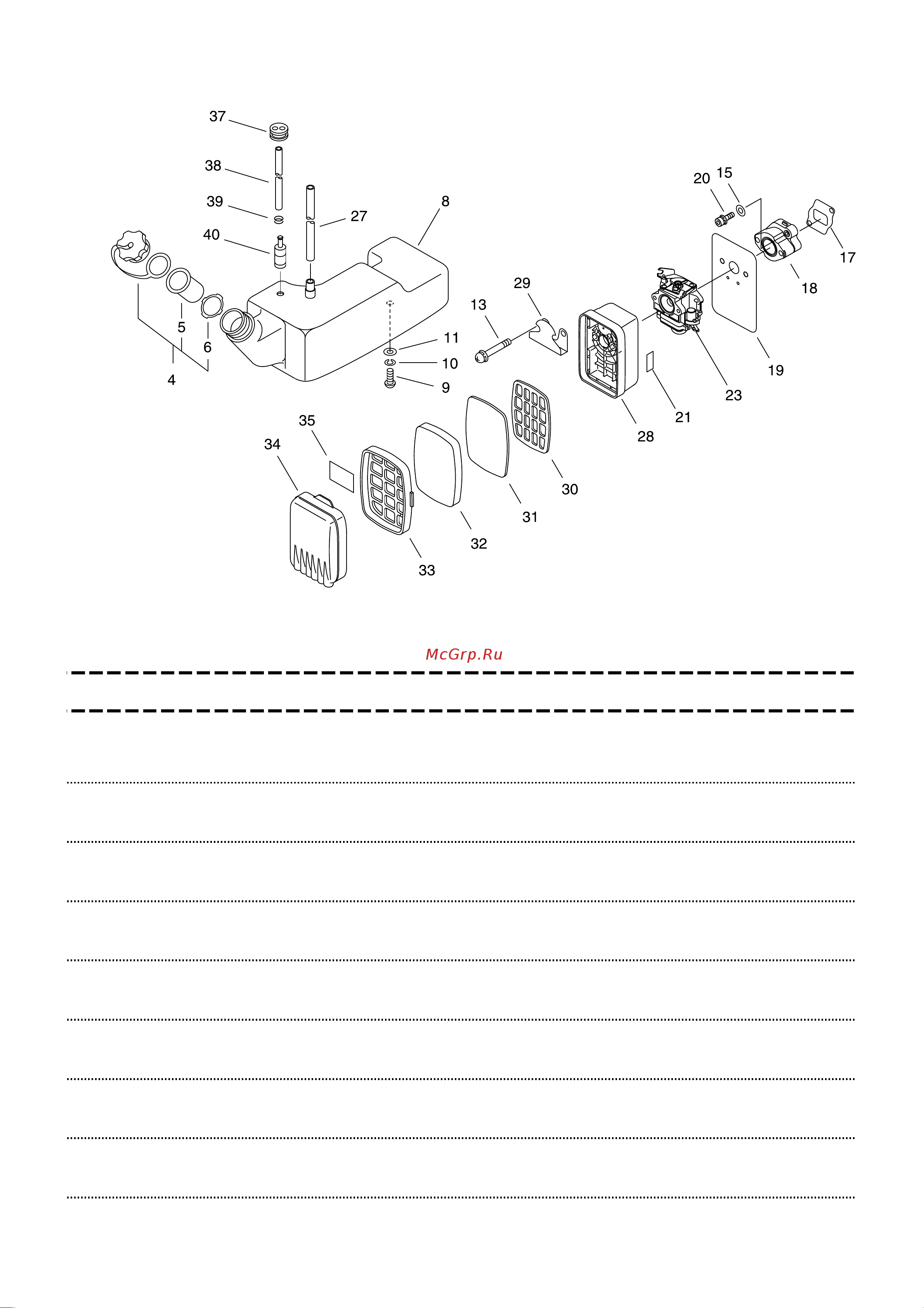

2. AIR CLEANER, FUEL TANK
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
4 131600-42230 1
CAP ASSY, FUEL TANK
5 + 131003-21230 1
CUP SET, VENT
6 + 131016-21060 1
GASKET, FUEL CAP
8 A350-000342 1
TANK,FUEL
9 900220-06014 2
SCREW +-SR 6*14
6*14
10 900605-00006 2
WASHER, SPRING 6
6
11 145642-00760 2
WASHER 6.5*18*1.6
6.5*18*1.6
13 91331-05060 2
SCREW
SR 5*60ZM
15 145712-14730 2
WASHER
17 V103-001520 1
GASKET,INTAKE
18 A200-000191 1
INSULATOR,INTAKE
19 V103-001530 1
GASKET,INTAKE
20 900105-05030 2
BOLT, H.S. 5*30
5*30
21 890121-65830 1
LABEL, CHOKE
23 A021-003800 1
CARBURETOR,DIAPHRAGM
27 V471-000550 1
PIPE
3*6*145
28 P021-008620 1
CLEANER CASE ASY
29 A244-000020 1
PLATE,PREVENT
30 130319-03710 1
GRID, AIR CLEANER
31 130317-03710 1
FILTER, AIR
32 130310-02910 1
FILTER, AIR
33 130311-03710 1
GRID, AIR CLEANER
34 130313-03712 1
COVER, AIR CLEANER
35 890187-03710 1
LABEL, CLEANER
37 132115-56230 1
GROMMET, FUEL
- 3 -
