ECHO INCORPORATED ECHO HC-1500 (деталировка) [10/14] Carburetor
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [10/14] Carburetor](/views2/2002324/page10/bga.png)
HC-1500(24)

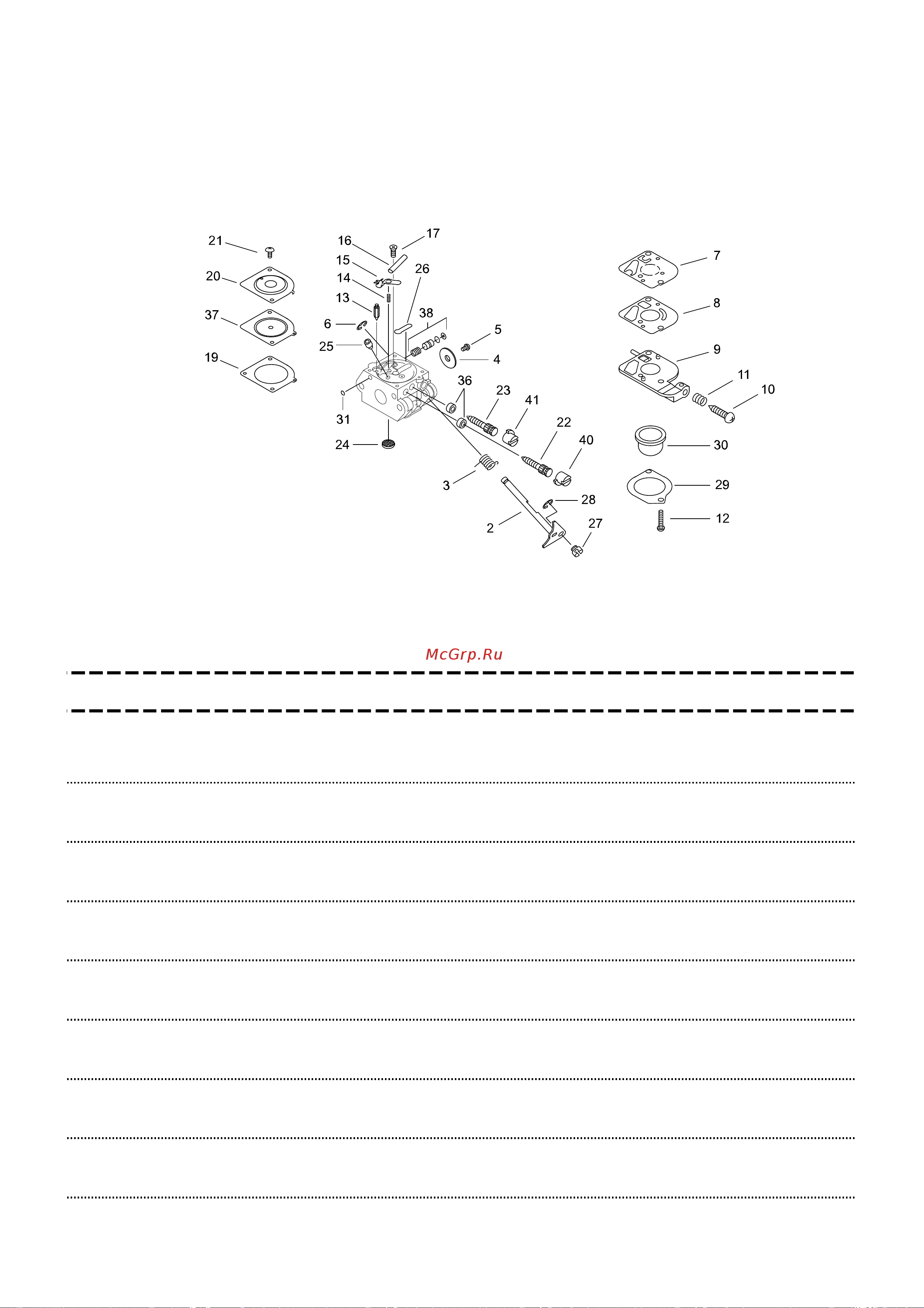

7. CARBURETOR
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
125200-05964 1
CARBURETOR
C1U-K51
2 + 125317-13310 1
SHAFT, THROTTLE
3 + 125313-42030 1
SPRING, THRT. RETURN
4 + 125316-49030 1
VALVE, THROTTLE
5 + 125314-13930 1
SCREW
3*4
6 + 125327-15130 1
CLIP
7 + 125312-12820 1
DIAPHRAGM, FUEL PUMP
8 + 125325-13310 1
GASKET, PUMP
9 + P005-000590 1
BASE,ASY PRIMER
10 + 125334-06960 1
SCREW,THROTTLEADJUST
11 + 125333-06960 1
SPRING,IDLE ADJUSTER
12 + 125310-11610 2
SCREW
13 + 125337-06960 1
VALVE,INLET NEEDLE
14 + 125322-42030 1
SPRING, COIL
15 + 125323-42030 1
LEVER, METERING
16 + 125338-13930 1
PIN, METERING ARM
17 + 125339-42030 1
SCREW
19 + 125340-51030 1
GASKET, DIAPHRAGM
20 + 125342-52130 1
COVER, DIAPHRAGM
21 + 125344-52130 2
SCREW
22 + 125320-13310 1
NEEDLE, HIGH SPEED
23 + 125318-13120 1
SCREW, IDLE NEEDLE
24 + 125326-42030 1
STRAINER
25 + P005-002210 1
NOZZLE, CHECK VALVE
26 + 125345-15130 1
PLUG, WELCH
- 9 -
