ECHO INCORPORATED ECHO HC-1500 (деталировка) [9/14] Gear case cutter
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [9/14] Gear case cutter](/views2/2002324/page9/bg9.png)

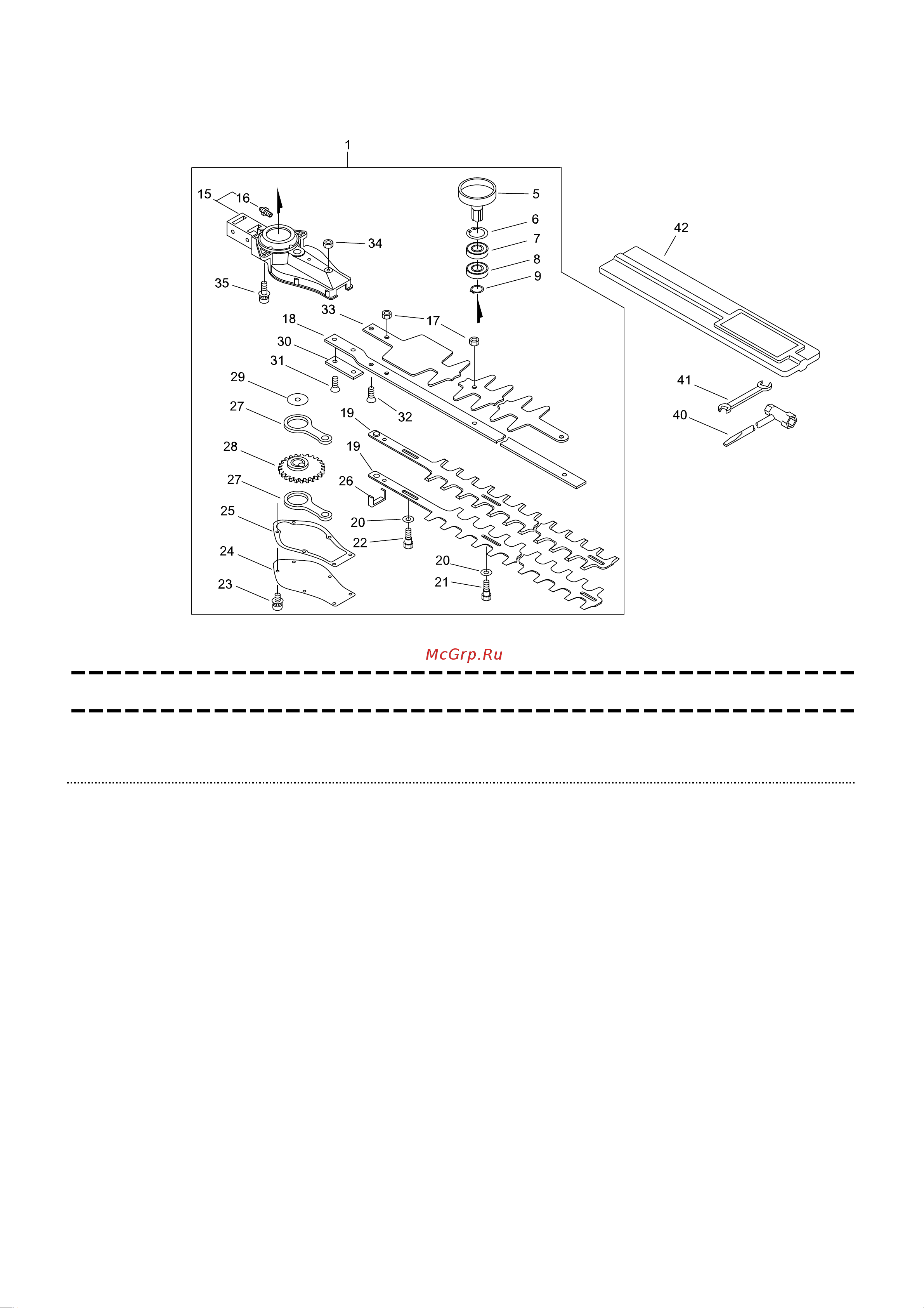

HC-1500(24)
6. GEAR CASE, CUTTER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
34 + 900500-00006 2
NUT 6
6
35 + 900162-05020 3
BOLT, H.S. 5*20
5*20 W,SW
40 895410-03930 1
WRENCH, W/S. DRIVER
41 895112-00330 1
SPANNER 8*10
42 X495-000051 1
SCABBARD,BLADE
- 8 -
