ECHO INCORPORATED ECHO HC-1500 (деталировка) [5/14] Air cleaner muffler
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [5/14] Air cleaner muffler](/views2/2002324/page5/bg5.png)
HC-1500(24)

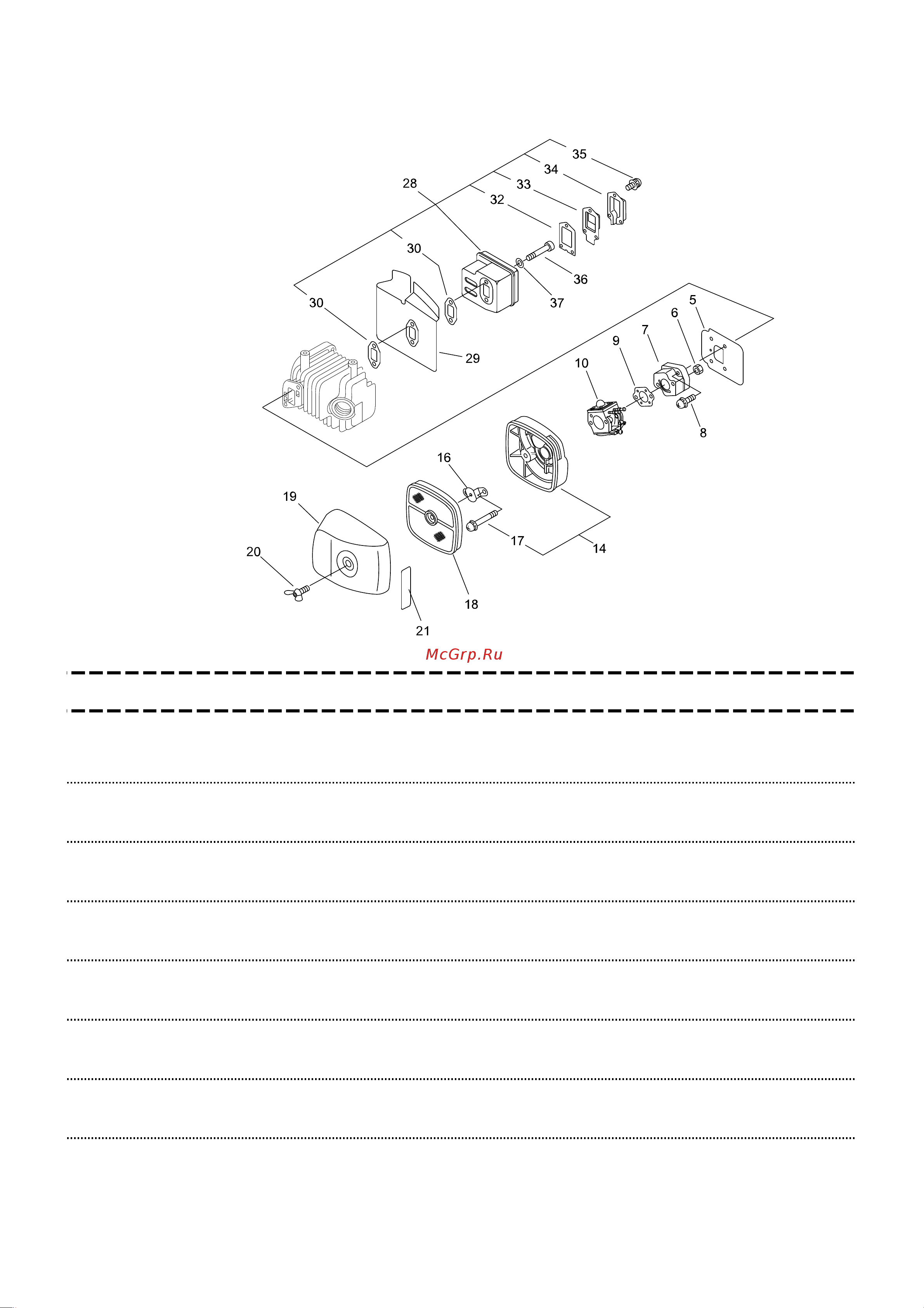

3. AIR CLEANER, MUFFLER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 130010-42032 1
GASKET,INTAKE
6 900500-00005 2
NUT 5
5
7 130017-42031 1
INSULATOR, INTAKE
8 900238-05020 2
SCREW 5*20
5*20
9 130016-42031 1
GASKET, INTAKE
10 125200-05964 1
CARBURETOR
C1U-K51
14 P021-010350 1
CASE,CLEANER ASY
17 + 900242-05065 2
SCREW 5*65
5*65
16 129011-52730 1
PLATE, PREVENT
18 A226-001410 1
ELEMENT,AIR FILTER
19 130313-05863 1
LID, AIR CLEANER
20 210417-52730 1
BOLT, WING
5*20
21 890121-05360 1
LABEL, METERING
29 145871-05360 1
COVER, MUFFLER
28 145802-05361 1
MUFFLER ASY (SAM)
30 + V104-000160 2
GASKET,EXHAUST
32 + 145866-42031 1
GASKET, MUFFLER LID
33 + 145876-42030 1
LID, MUFFLER (B)
34 + A313-000010 1
GUIDE,EXH
ID#4000
35 + 900242-04010 3
SCREW 4*10
4*10
36 900105-05050 2
BOLT, H.S. 5*50
5*50
37 900600-00005 2
WASHER 5
5
- 4 -
