ECHO INCORPORATED ECHO HC-1500 (деталировка) [6/14] Fuel tank
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [6/14] Fuel tank](/views2/2002324/page6/bg6.png)
HC-1500(24)

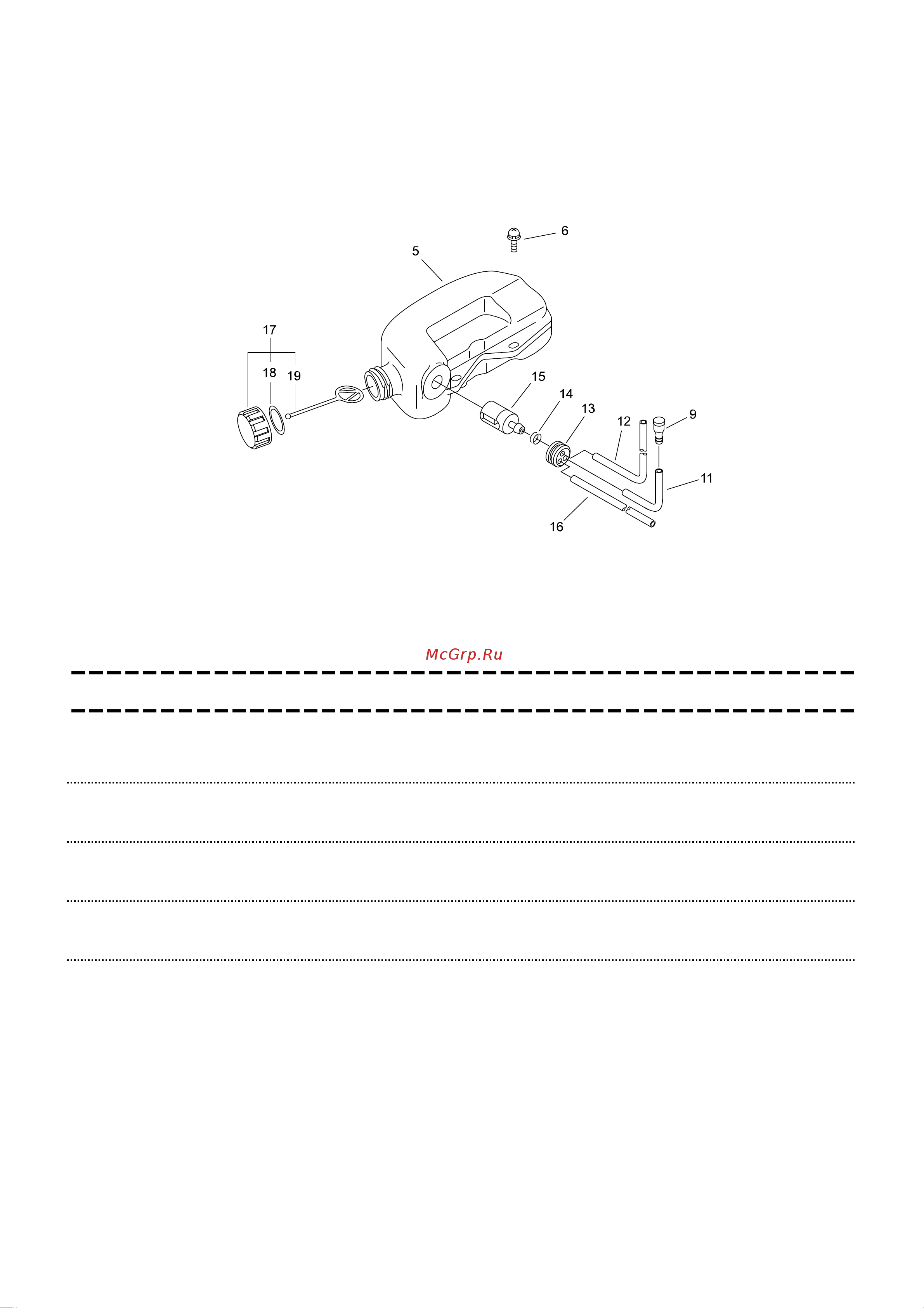

4. FUEL TANK
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 A350-000272 1
TANK,FUEL
6 900239-05016 2
SCREW 5*16
5*16
9 131300-56430 1
VALVE, CHECK
11 V471-001200 1
PIPE
3*5*70 NBR
12 V470-000580 1
PIPE
3*5*195
13 132115-46730 1
GROMMET, FUEL
14 132013-09820 1
CLIP
6MM
15 131205-07320 1
STRAINER, FUEL
16 132010-06460 1
PIPE 3* 6*110
3*6*110 YL
17 131004-08960 1
CAP ASSY, FUEL
18 + 131016-55830 1
GASKET, FUEL CAP
19 + 131051-52430 1
CONNECTOR, CAP
80L
- 5 -
