ECHO INCORPORATED ECHO HC-1500 (деталировка) [7/14] Handle
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [7/14] Handle](/views2/2002324/page7/bg7.png)
HC-1500(24)

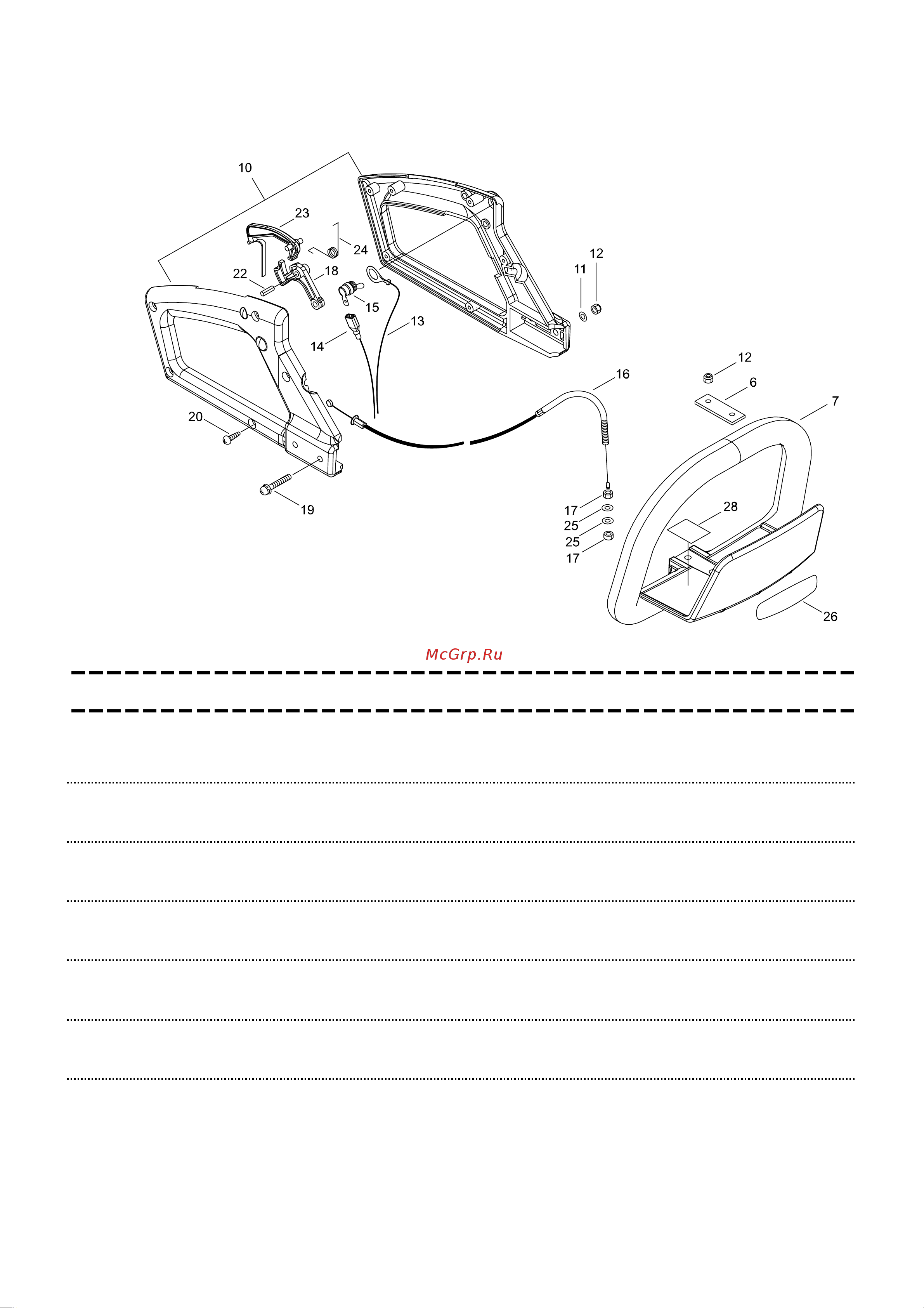

5. HANDLE
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
6 351611-05360 1
WASHER
7 351610-05360 1
HANDLE, FRONT
10 351100-06560 1
HANDLE SET, REAR
11 900600-00005 2
WASHER 5
5
12 900560-00005 3
NUT, LOCK 5
5
13 162010-05360 1
LEAD, GROUND
14 162014-05360 1
LEAD, GROUND
15 163400-03460 1
SWITCH, IGNITION
16 178001-05360 1
WIRE, THROTTLE
17 900502-00006 2
NUT 6 (3N)
3N6
18 178010-06560 1
CONTROL, THROTTLE
19 900242-05050 2
SCREW 5*50
5*50
20 900255-04016 5
SCREW 4*16
4*16
22 900342-50025 1
PIN, SPRING 5*25
5*25
23 178090-06560 1
LOCKOUT, T. CONTROL
24 178043-15130 1
SPRING, THR. RETURN
25 900600-00006 2
WASHER 6
6
26 X502-000430 1
LABEL,ECHO
28 X505-002030 1
LABEL,CAUTION
37*35
- 6 -
