ECHO INCORPORATED ECHO HC-1500 (деталировка) [2/14] Cylinder crankcase piston
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [2/14] Cylinder crankcase piston](/views2/2002324/page2/bg2.png)
HC-1500(24)

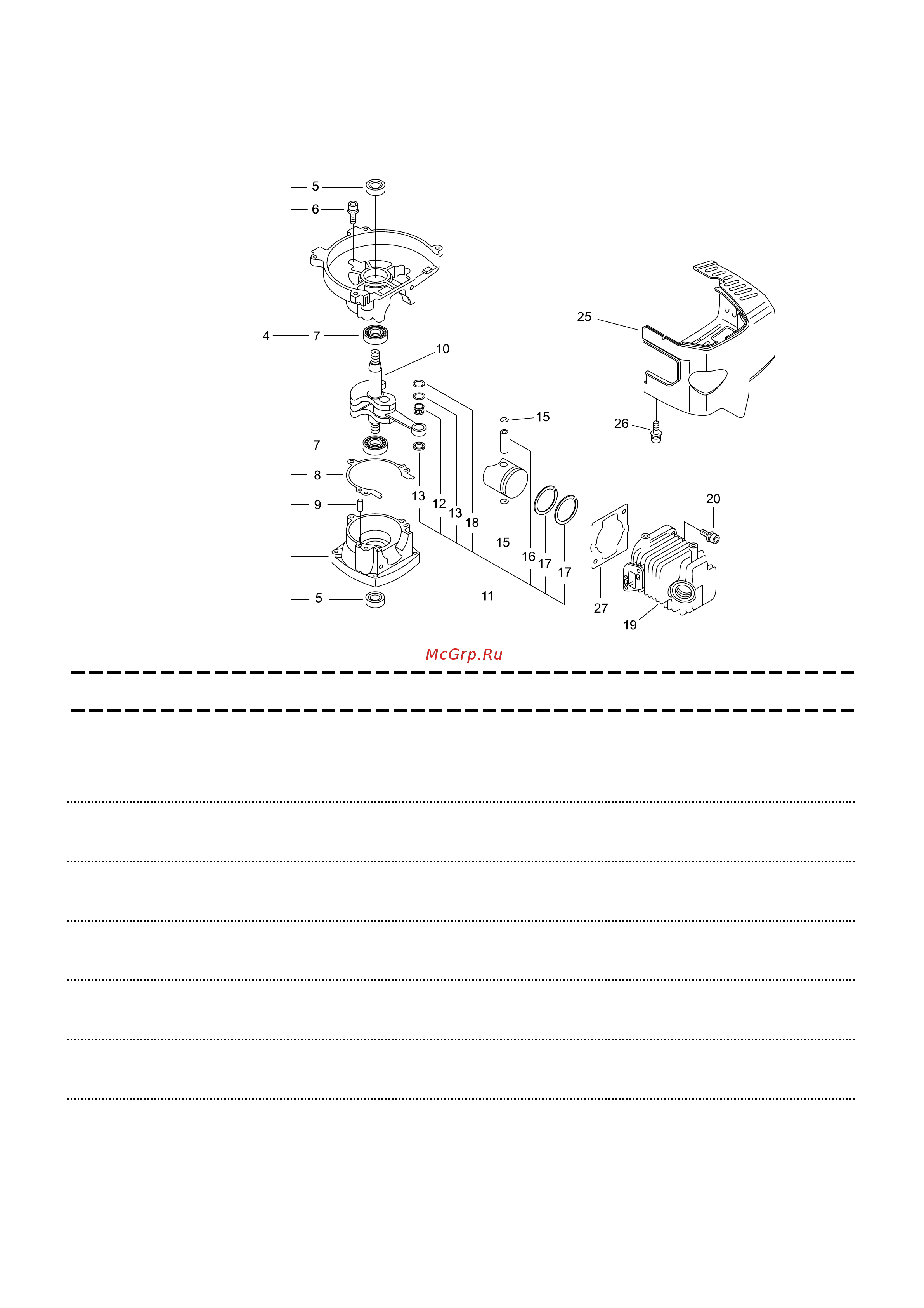

1. CYLINDER, CRANKCASE, PISTON
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
4 100204-05361 1
CRANKCASE KIT
5 + 100212-42031 2
OILSEAL
ISCD 12*22*4.5
6 + 900162-05028 3
BOLT, H.S. 5*28
5*28 W,SW
7 + 94035-36201 2
BEARING BALL
6201X3JR2C3
8 + 100242-42030 1
GASKET, CRANKCASE
9 + 100215-03930 2
PIN, DOWEL
10 100100-06564 1
CRANKSHAFT
11 P021-001113 1
PISTON KIT
12 + 100113-05930 1
BEARING, NEEDLE
8*12*8
13 + 100014-08960 2
SPACER, PISTON PIN
15 + 100015-04630 2
CIRCLIP, PISTON PIN
16 + 100013-11520 1
PIN, PISTON
17 + A101-000000 2
RING,PISTON
18 + V306-000150 1
WASHER,CIRCULAR 8
8.2*13*0.8
19 101011-06562 1
CYLINDER
20 900162-05022 2
BOLT, H.S. 5*22
5*22 W,SW
25 101514-05361 1
COVER, CYLINDER
26 900162-04020 2
BOLT, H.S. 4*20
4*20 W,SW
27 101010-44332 1
GASKET, CYL. BASE
- 1 -
