ECHO INCORPORATED ECHO HC-1500 (деталировка) [8/14] Gear case cutter
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [8/14] Gear case cutter](/views2/2002324/page8/bg8.png)
HC-1500(24)

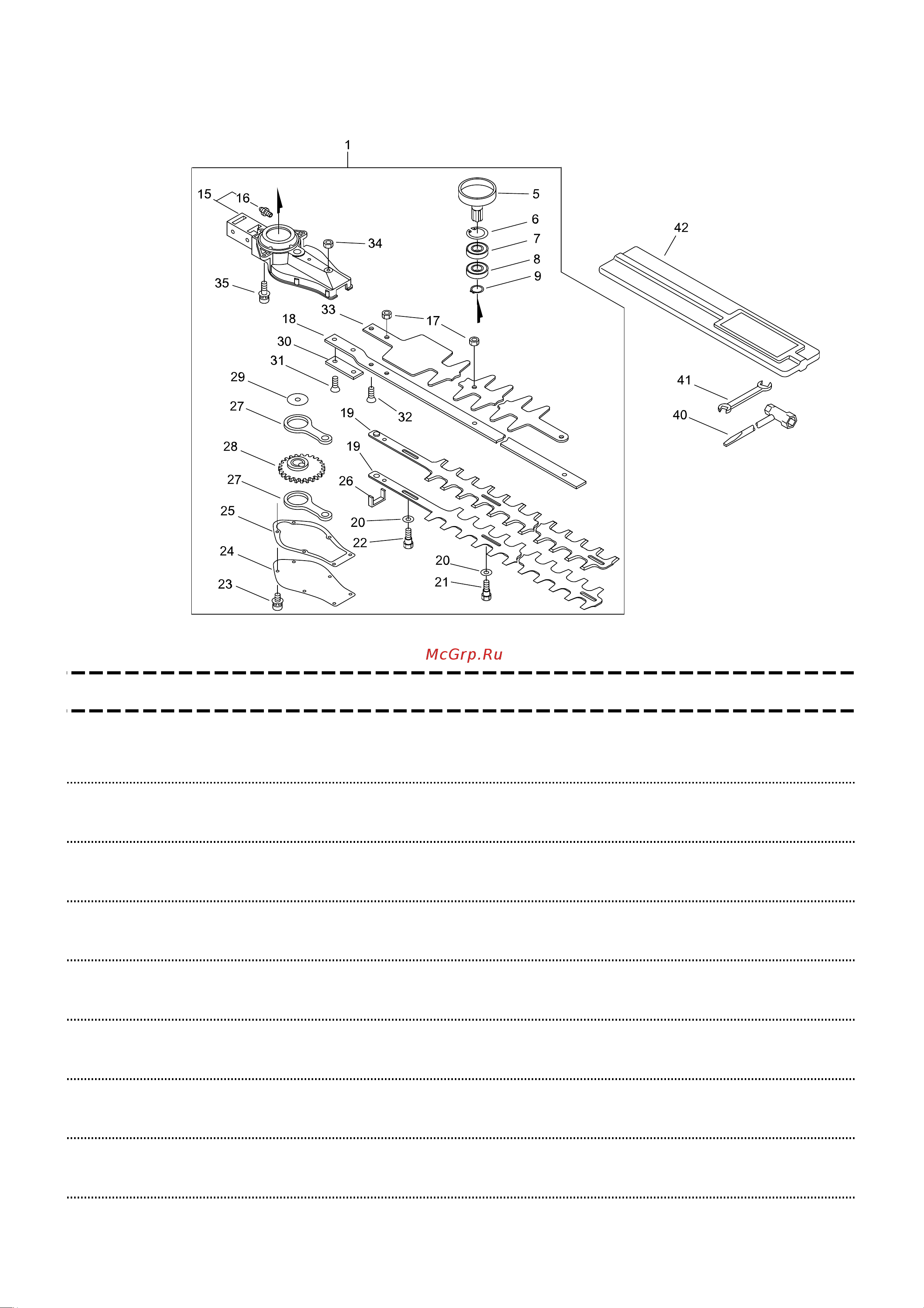

6. GEAR CASE, CUTTER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 P021-009370 1
HOUSING ASSY,GEAR
5 + 175005-04560 1
DRUM, CLUTCH
6 + 900702-00035 1
CIRCLIP 35
CRｰ35
7 + 900813-36202 1
BEARING, BALL 6202
6202Z/C3
8 + 900810-36202 1
BEARING, BALL 6202
6202/C3
9 + 900701-00014 1
CIRCLIP 14
CS-14
15 + 610407-05361 1
CASE, GEAR
16 ++ 880110-10860 1
NIPPLE, GREASE
17 + 433022-06460 4
NUT
18 + 699110-06960 1
BAR, FRAME
19 + X411-000280 2
CUTTER
20 + 699118-04560 4
WASHER
21 + 699115-04660 3
BOLT 6
6*18L
22 + 699115-05360 1
BOLT
23 + 900162-04010 6
BOLT, H.S. 4*10
4*10 W,SW
24 + 610411-05361 1
LID, GEARCASE
25 + 610414-05360 1
GASKET, GEAR HOUSING
26 + 610425-04560 1
SEAL
27 + C532-000120 2
ROD, CONNECTING
28 + 610312-04560 1
GEAR
29 + 610350-04560 1
WASHER
30 + 610440-04560 1
HOLDER, FRAME
31 + 900212-06025 2
SCREW 6*25
+SF6*25
32 + 900212-05030 1
SCREW (5*30*P0.8)
+SF5*30
33 + 699125-06560 1
BLUNT
539L
- 7 -
