ECHO INCORPORATED ECHO HC-1500 (деталировка) [4/14] Starter magneto clutch
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [4/14] Starter magneto clutch](/views2/2002324/page4/bg4.png)
HC-1500(24)

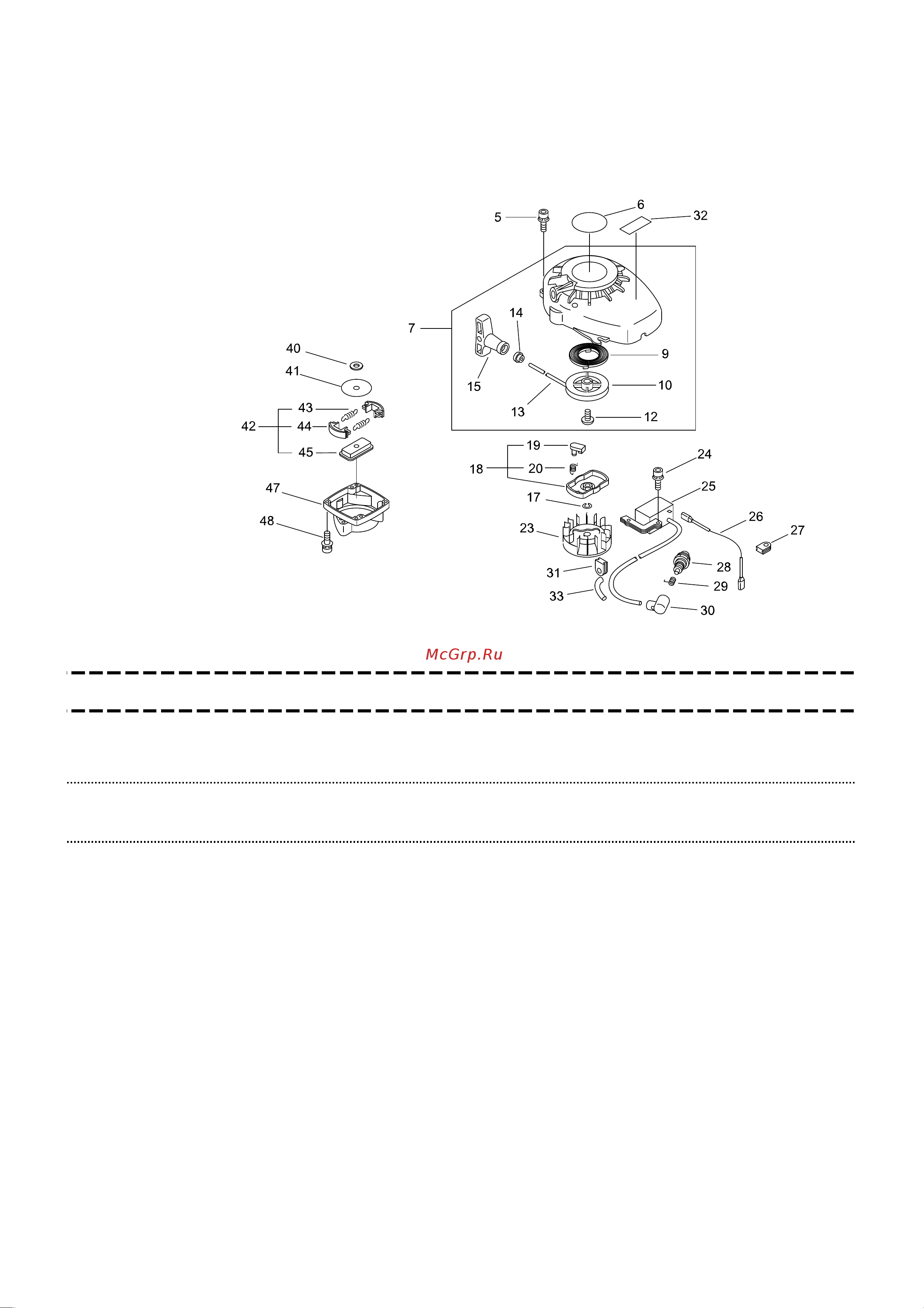

2. STARTER, MAGNETO, CLUTCH
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
41 175019-04920 1
PLATE, CLUTCH
42 175000-06560 1
CLUTCH ASSY
43 + 175018-05960 2
SPRING, CLUTCH
44 + 175009-05131 2
SHOE, CLUTCH
45 + 175016-04920 1
HUB, CLUTCH
47 175055-05360 1
HOUSING, CLUTCH
48 900162-04016 2
BOLT, H.S. 4*16
4*16 W,SW
- 3 -
