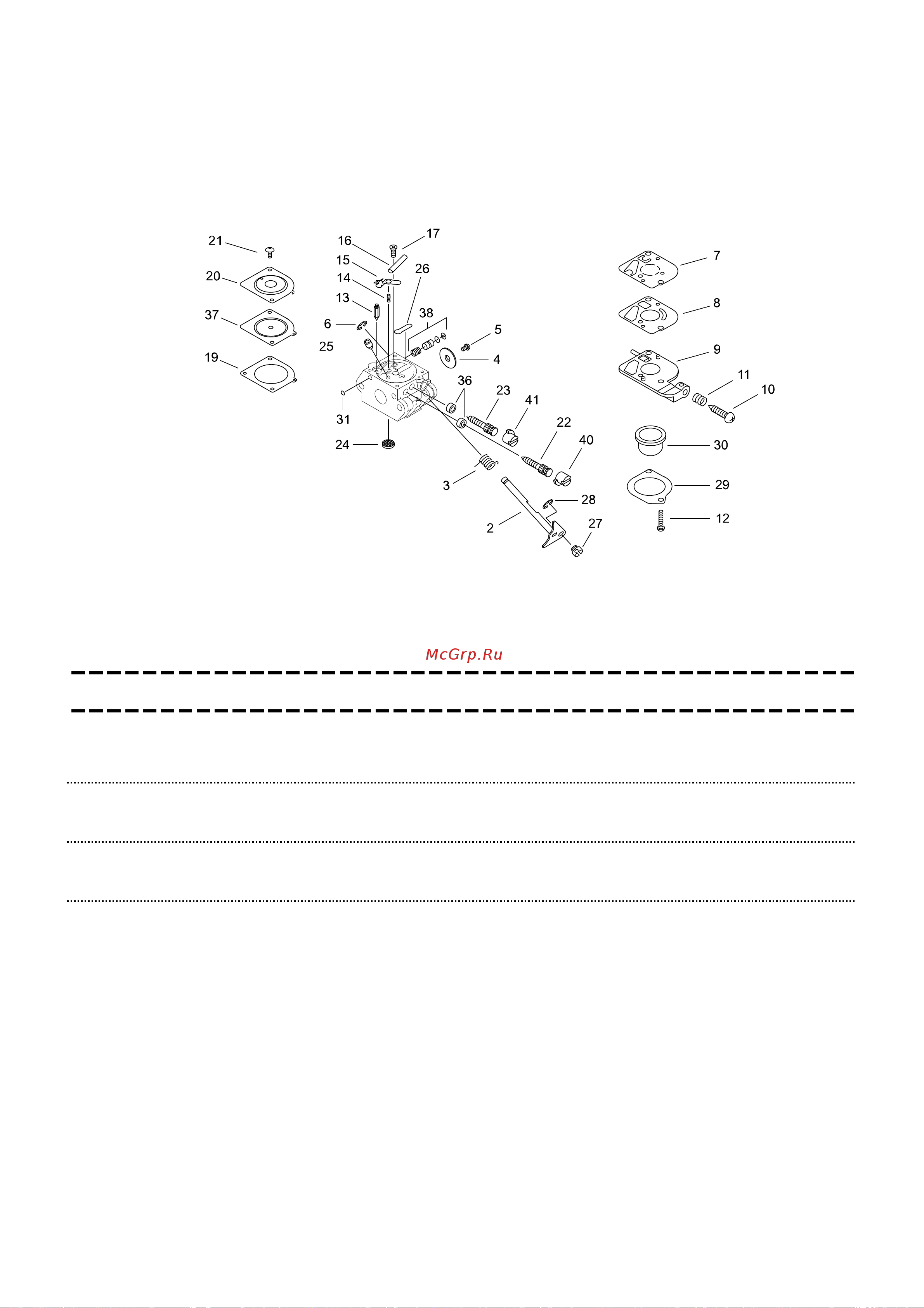

ECHO INCORPORATED ECHO HC-1500 (деталировка) [11/14] Carburetor
![ECHO INCORPORATED ECHO HC-1500 (деталировка) [11/14] Carburetor](/views2/2002324/page11/bgb.png)
HC-1500(24)
7. CARBURETOR
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
27 + 125372-42030 1
SWIVEL
28 + 125327-13930 1
CLIP
29 + 125363-11610 1
RING
30 + 125381-08660 1
PUMP, PRIMING
31 + 125345-13310 1
PLUG, WELCH
36 + 125363-12820 2
RETAINER
37 + 125341-49030 1
DIAPHRAGM
38 + P005-002020 1
PUMP KIT, ACC
40 + 125329-39030 1
LIMITER, MIXTURE
41 + 125329-09860 1
LIMITER, MIXTURE
- 10 -
