BEFORE INSTALLATION, CHECK THE FOLLOWING:

* That the voltage, cable section and rating of the magnetothermal circuit breaker (3) (20A) are correct

for each model, and

is accessible, omni polar, and with a contact separation of more than 3mm.

It is

advisable that the installation have a differential switch (RCD) with a rated residual operating current

legislation in the place of installation.

1.- To make level the machine by means of the support feet

NOTE:

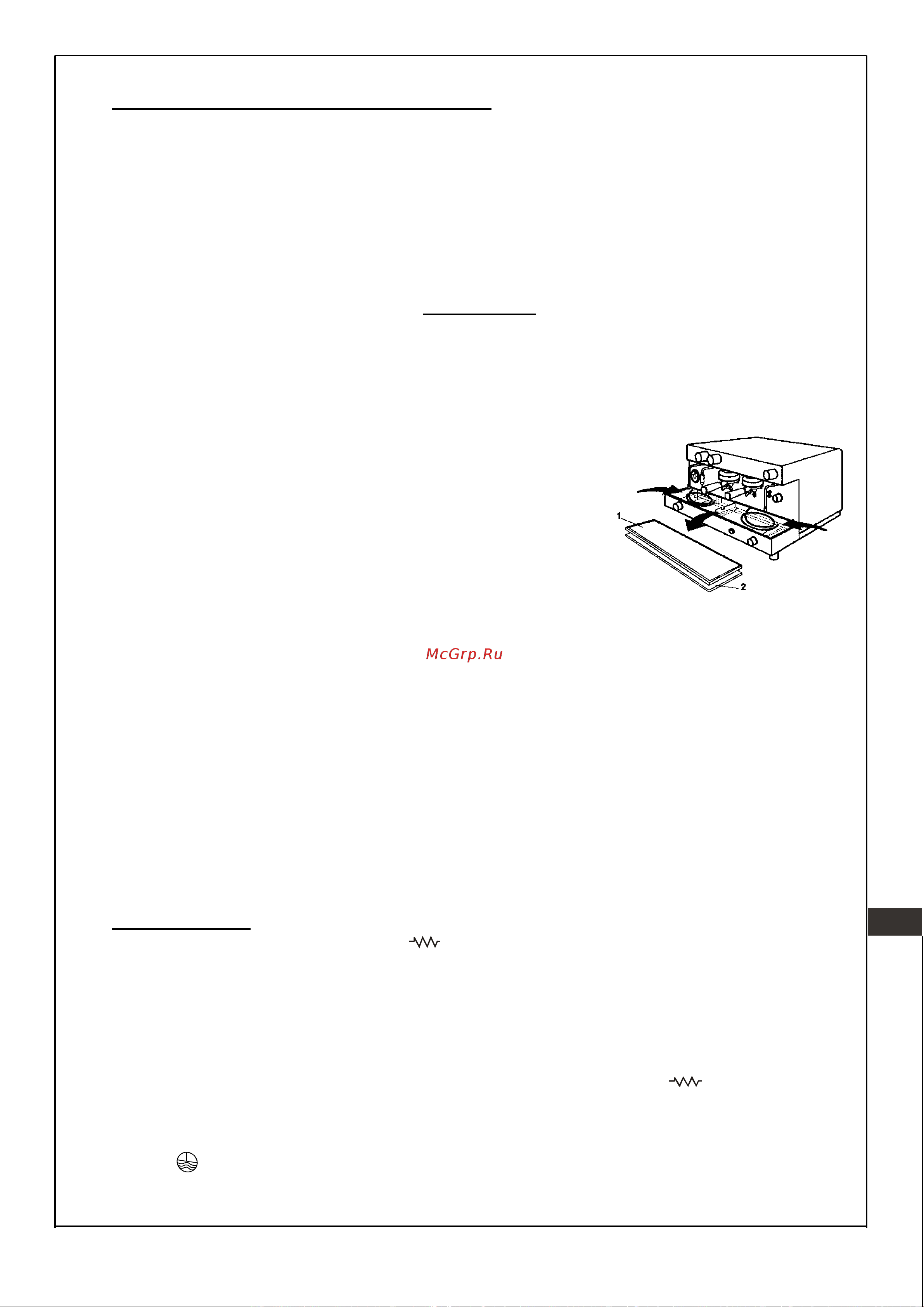

To pull out the cables to connect to the mains, proceed as follows:

remove the cover (1) and the lower tray (2), cut the ties securing the

cables to the chassis, then replace the cover (1) and the lower tray (2)

in their place.

3.- Connect the drainage pipe (B) to the funnel (2p) on the machine and the drainage pipe (4).

4.-

Connect the pipe (short flexible tube not supplied with the machine)

the upper tap of the water purifier (6b).

5.- NOTE: Before connection to the pump inlet (2o), open tap (5) and allow water to circulate through the

inverse operation, that is, first the cables of the active part and then the mass cable

9.- NOTE: Make sure that the earth connection is correctly installed and in accordance with current

machine in "2" (OFF ).

10.-Arm the magnetothermal circuit breaker (3), positioning it in the "ON" position.

machine will automatically begin to fill with water until reaching the ideal level. On the machines equipped

with the boiler level indicator lights (2e), the upper green light indicates the level is correct, the lower red

light indicates boiler refill. On the models equipped with the level indicator lights located on the left upper

part (2e) the symbol lights up when the machine is refilling.
