SELECTING THE CHOSEN MODE
1. Turn the main switch to the “off” position – 0;
2. On the push buttons for the left hand group, press and hold down together the buttons for 1 short coffee
and continuous coffee whilst turning the main switch back to position 1 – “on”. Three push button lights on
the left group will start flashing: 1 short coffee =MODE 1, 1 long coffee =MODE 2, and 2 short coffees
=MODE 3;
3. Select the chosen mode by pressing the corresponding button: 1 short coffee =MODE 1, 1 long coffee
=MODE 2, or 2 short coffees =MODE 3;
Once the button for the chosen mode has been pressed, the machine will become operative after a few
seconds. If the Mode needs to be changed, start again at step 1 above.
MACHINES WITH DRAINED AUTOMATIC OF THE BOILER
In the models that incorporate a button for hot water “INFUSIONS”, the boiler can be emptied simply and
easily,

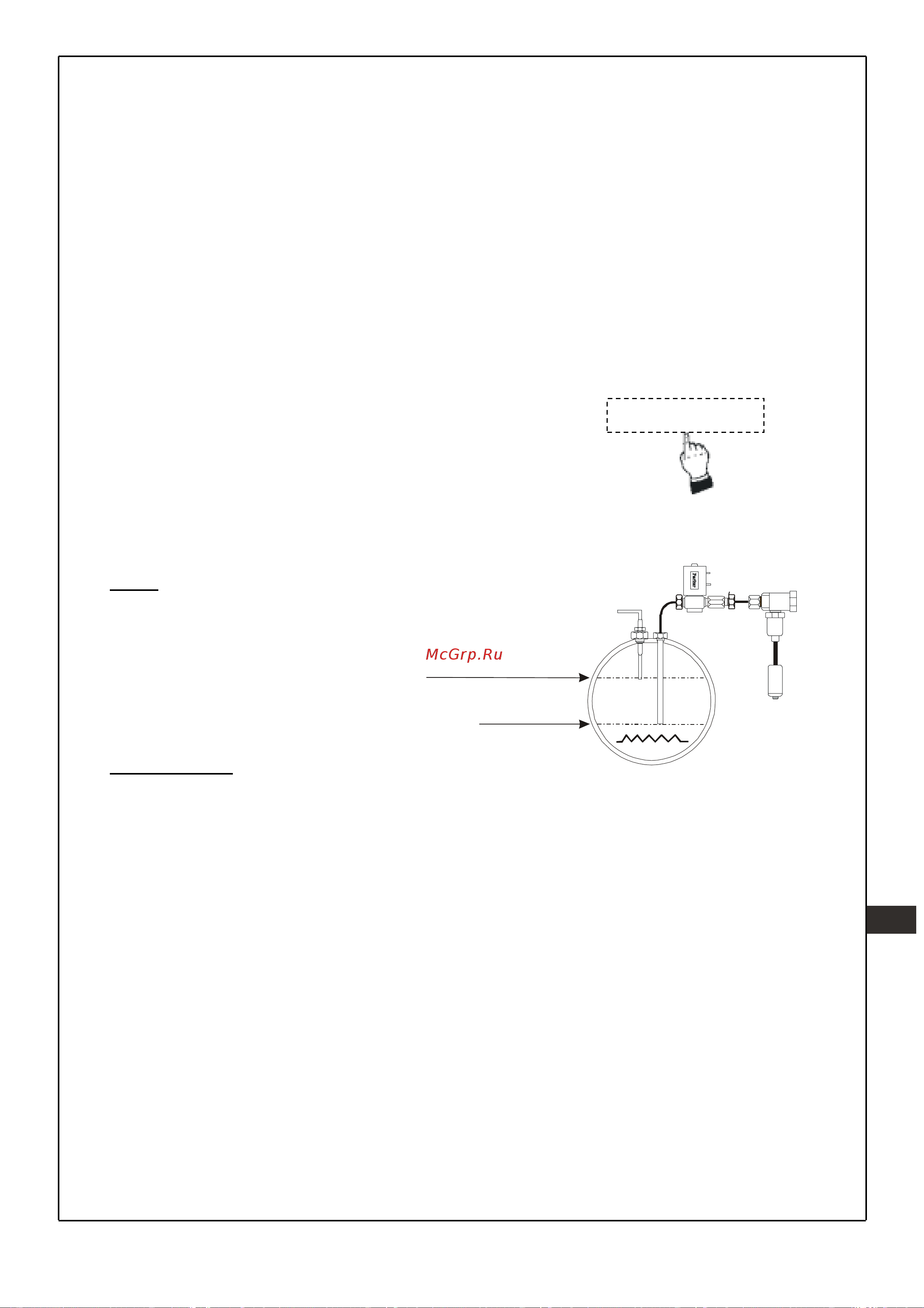

To empty the boiler partially, press the “INFUSIONS” button
(See figure 5) until the LED (luminous indicator) on the button
starts flashing.
Hot water will be released until the minimum level is reached as
in figure 6.
Once this level is reached, the machine will start to refill
automatically.
NOTE:
To interrupt the boiler emptying cycle before it
reaches the minimum level, just press the hot water
button again. The machine will start to refill
automatically.
SAFETY ADVICE
If the power supply cable is damaged it must be replaced by a cable or special assembly to be supplied by
the manufacturer, or by the after-sales service, and must be installed by authorised personnel, so as to avoid
any possible risk of danger
Any adjustment in the hydraulic system will have to be done only by authorized personnel.
This device is not suited for use outdoors unless it is protected from weather conditions (rain, wind, etc.).
This device cannot be exposed to or cleaned with jets of water or steam.
This device must not be touched with wet hands or when not wearing footwear.
This device can only be installed and used by qualified personnel.
This device must operate at ambient temperatures above 1º C and below temperatures withstood by people.
To prevent the device from freezing if it is stored at temperatures that are equal to or less than 0º C, drain
the water hydraulic circuit before being stored. If the device does freeze, put it in a place with a temperature
exceeding 10º C and wait for it to thaw. Never turn on the machine’s heating circuit until it has thawed.
This device must not be used for any purpose other than that for which it has been designed (dispensing
espresso coffee or hot water for infusions and supplying steam to heat non-flammable liquids).
This device does not exceed 70 dB of acoustic pressure.
Hot water button
Figure 5
12b
INFUSIONS
Work level
Reference level of the outflow pipe for the
“INFUSIONS” hot water outlet
Figure 6
