2. Operation Guide

2.2 Editing

2.2.7 Modify a Step or Steps

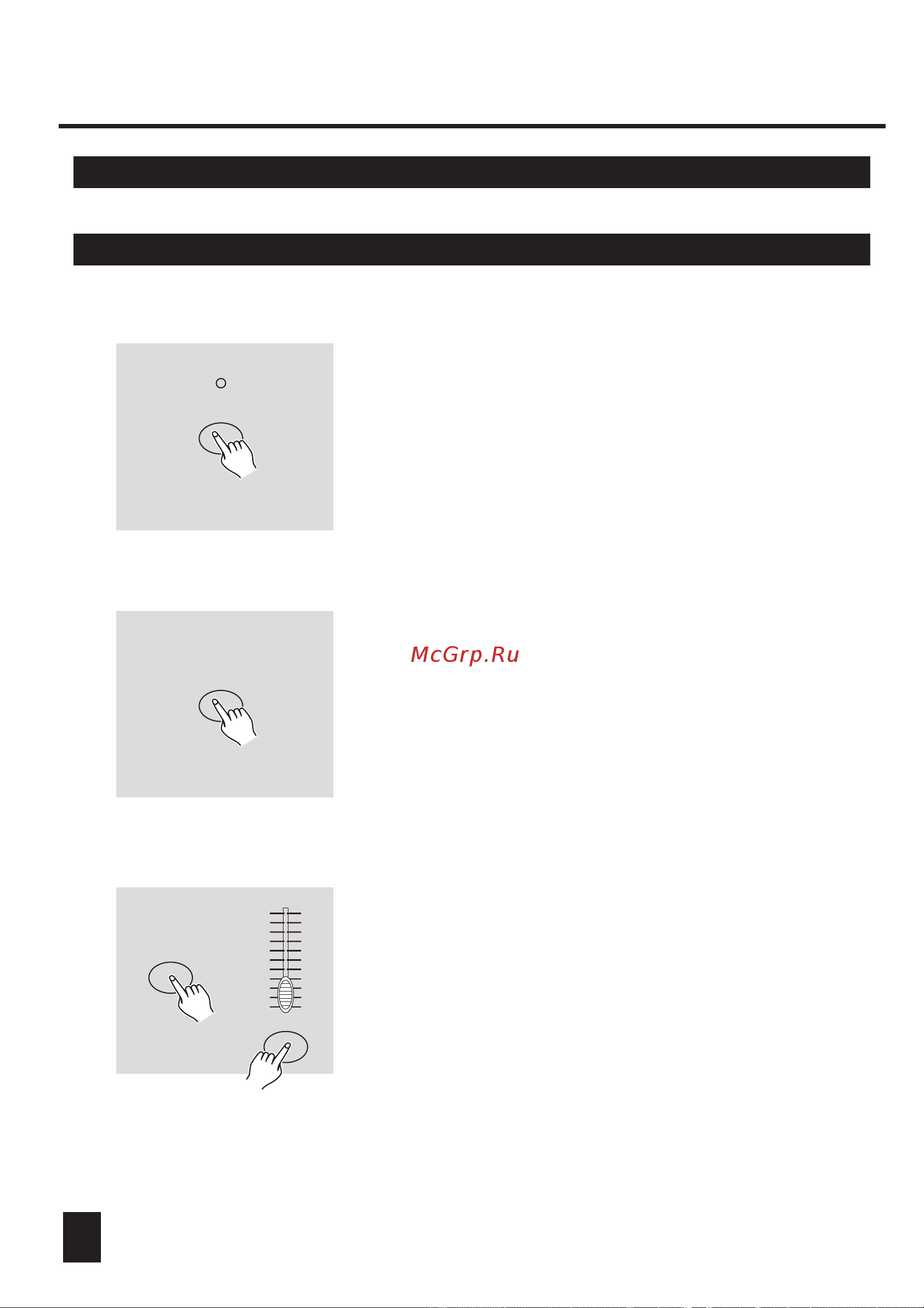

1. Enter Edit mode.

2. Tap the Step button to scroll to the step you wish

to modify.

3. Press and hold the Up button if you want to raise

the intensity.

If you want to lower the intensity, press and hold

down the Down button.

5. Repeat steps 2, 3 and 4 until all the steps have

been modified.

6. Exit Edit mode.

4. While holding down the Up or Down button, tap

the Flash button corresponding to the DMX

channel of the scene you wish to modify until

you reach the desired intensity value read from

the Segment Display. Then you may tap the

Flash buttons until you are satisfied with the

new scene.
