3.6 Implementation
4. There are two types of file dump mode described as below:
5. The controller will send and receive Note On and Note Off data via the Flash buttons.
Functions
Velocity
Note NO.
turn on or off program 1-48Program master
22-69
activate Channel 1-24Channel intensity
70--93
FULL -ON
94
DARK
95
HOLD
96
Turn on or off AUDIO
97
CHNS SCENES
98
DOUBLE PRESET Mode
99
SINGLE PRESET Mode
100
Step
101
BLACK OUT
102

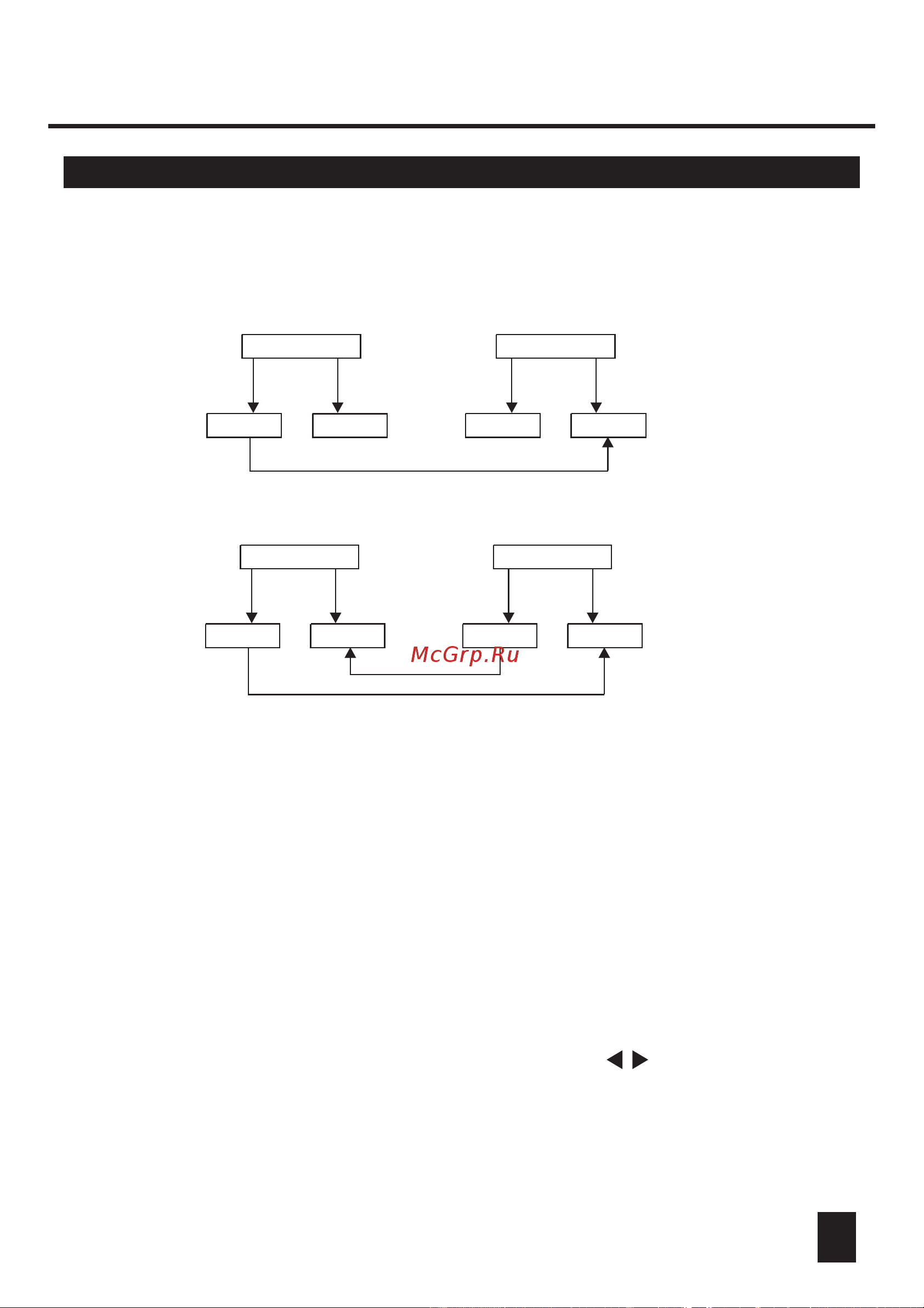

CONTROLLER RECEIVER
MIDI OUT
MIDI IN
MIDI OUT
MIDI IN
CONTROLLER RECEIVER
MIDI OUT
MIDI IN
MIDI OUT
MIDI IN
Close Loop Mode
Open Loop Mode
26
3. MIDI Operation & DMX Channel Setup
