ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 19

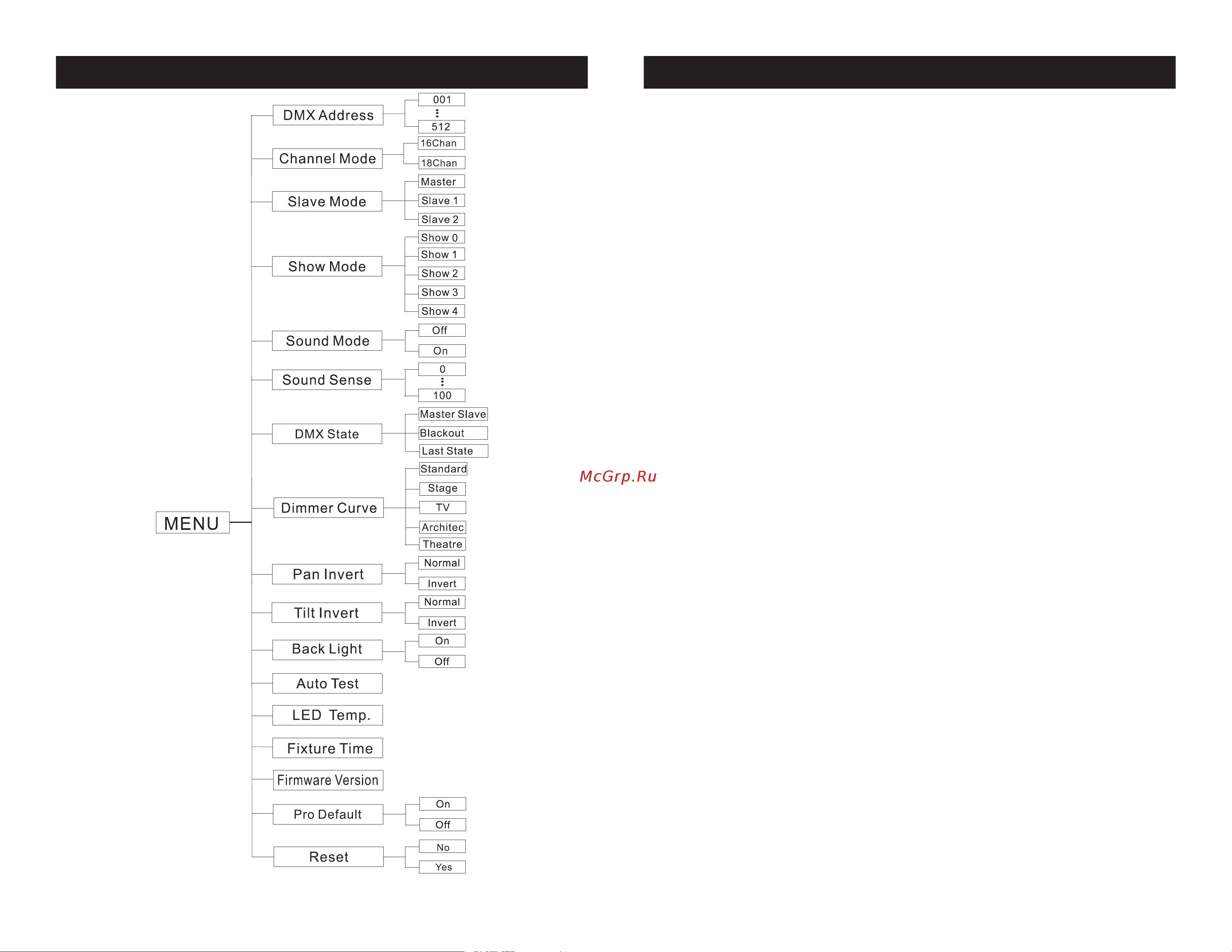

Focus Spot Two System Menu
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button
for at least 3 seconds. To exit without making any adjust-
ments press the MENU button. The display will lock after 30
seconds, press the MENU button for 3 seconds to unlock.
DMX Address - Set the DMX Address -
1. Press the MENU button until “DMX Addresss” is displayed, press
ENTER.
2. “X” will now be displayed, “X” represents the displayed address.
Press the UP or DOWN buttons to nd your desired address.
3. Press ENTER to conrm, and then press and hold the MENU button
for at least three seconds to assign.
Channel Mode - This will let you select your desired
DMX Channel mode.
1. Press the MENU button until “Channel Mode” is displayed, press
ENTER.
2. “X Chan” will now be displayed, “X” represents the displayed DMX
channel mode. Press the UP or DOWN buttons to nd your desired
Channel mode.
3. Press ENTER to conrm.
Slave Mode - This will let you set unit as a master or
slave in a master/slave conguration.
1. Press the MENU button until “Slave Mode” is displayed, press
ENTER. Either “Master”, “Slave 1” or “Slave 2” will be displayed.
2. Press the UP or DOWN buttons until your desired setting is dis-
played, then press ENTER to conm.
NOTE: In a Master/Slave conguration you can make one xture the
Master and then set the next xture to “Slave 2”, the xtures will now
have contrast movement to each other.
Focus Spot Two System Menu
