AMERICAN DJ Focus Spot TWO [9/18] Channel value function
![AMERICAN DJ Focus Spot TWO [9/18] Channel value function](/views2/2008201/page9/bg9.png)

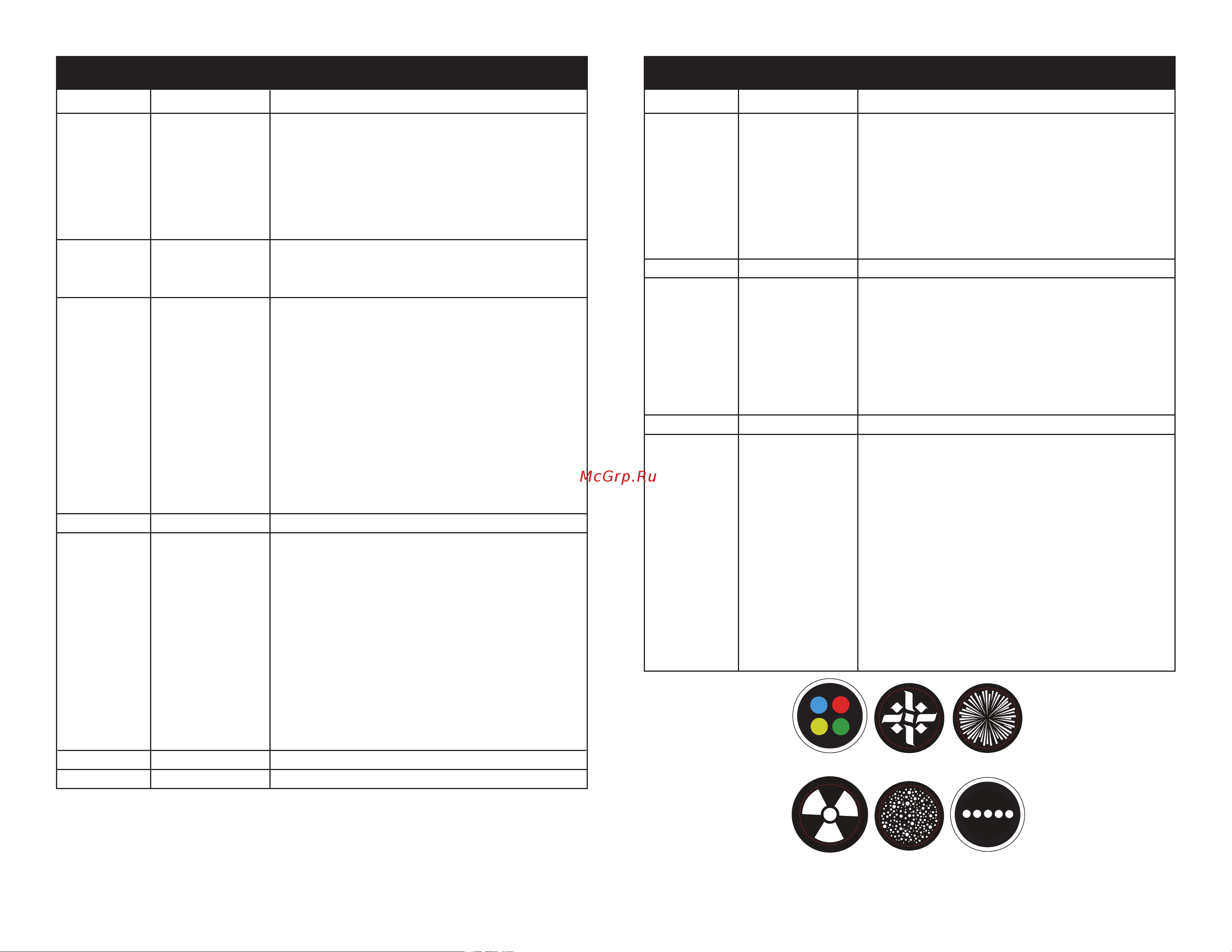

ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 17
Focus Spot Two 18 Channel Mode
Channel Value Function
7 GOBO ROTATION
0 - 127 INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 STOP
194 - 255 COUNTER-CLOCKWISE ROTATION
SLOW - FAST
8 PRISM
0 - 7 NO EFFECT
8 - 255 PRISM EFFECT
9 STROBE/SHUTTER
0 - 7 OFF
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE SLOW - FAST
248 - 255 OPEN
10 0 - 255 MASTER DIMMER 0% - 100%
11 UV STROBE/SHUTTER
0 - 7 OFF
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE SLOW - FAST
248 - 255 OPEN
12 0 - 255 UV MASTER DIMMER 0% - 100%
13 0 - 255 FOCUS 0%- 100%
Focus Spot Two 18 Channel Mode
Channel Value Function
14 SHOW
0 OFF
1 - 21 SHOW 1
22 - 41 SHOW 2
42 - 61 SHOW 3
62 - 81 SHOW 4
82 - 255 SHOW 0 (RANDOM SHOW)
15 0 - 255 SHOW SPEED FAST - SLOW
16 DIMMER MODES
0 - 20 STANDARD
22 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT
17 0 - 255 PAN/TILT SPEED FAST - SLOW
18 FUNCTION
0 - 69 NOTHING
70 - 79 BLACKOUT WITH PAN/TILT
80 - 89 NOTHING
90 - 99 BLACKOUT WITH COLOR CHANGE
100 - 109 NOTHING
110 - 119 BLACKOUT WITH GOBO CHANGE
120 - 129 NOTHING
130 - 139 ENABLE SPLIT COLORS
140 - 209 RESET ALL
210 - 249 NOTHING
250 - 255 SOUND ACTIVE
GOBO 1 GOBO 2 GOBO 3
GOBO 4 GOBO 5 GOBO 6
