ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 7
Screw one clamp via a M12 screw and nut to the included
bracket. Attach the bracket using the omega locks to the
bottom of the Focus Spot Two. Attach and pull the safety-cable
through one of the safety holes located on the bottom base and
over the trussing system or a safe xation spot. Insert the end
in the carabine and tighten the safety screw.
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.

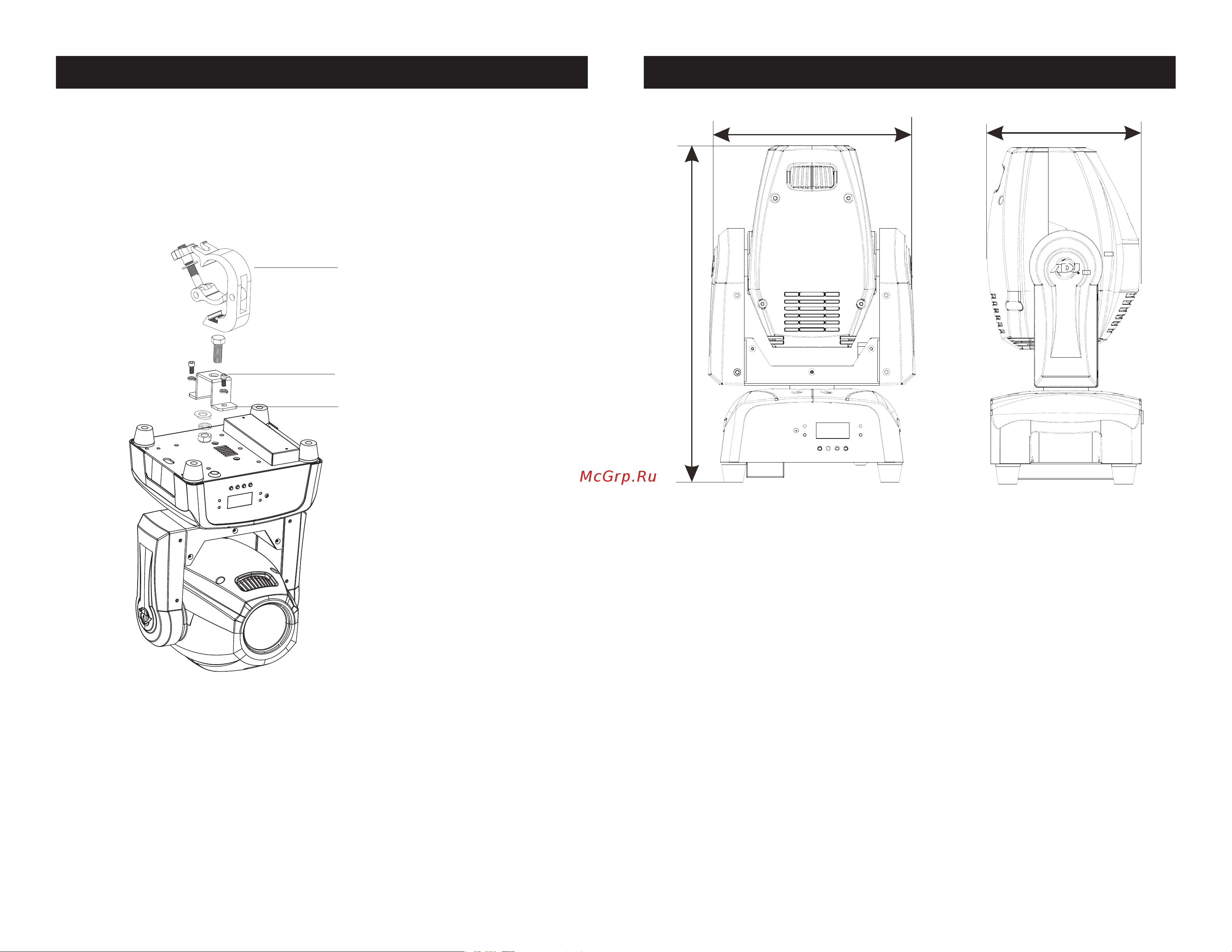

Focus Spot Two Mounting Focus Spot Two CAD Drawing
237mm/9.33”
385mm/15.15”
173mm/6.81”
Clamp
Suspender
Screew
Содержание
- Focus spot two 1
- User instructions 1
- Caution 2
- Customer support 2
- Introduction 2
- Unpacking 2
- Warning 2
- Mm 15 5 4
- Mm 6 1 4
- Mm 9 3 4
- Suspender screew 4
- Dmx 512 5
- Power supply 5
- Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior 6
- Conductor 5 pin xlr male in 3 pin xlr female out 6
- Data compliment signal 6
- Data true signal 6
- Focus spot two dmx set up 6
- Ground shield 6
- Not used 6
- Notice 6
- Pin 4 do not use 6
- Pin 5 do not use 6
- Pin xlr dmx connectors 6
- Pin xlr to 5 pin xlr conversion 6
- Some manufactures use 5 pin dmx 512 data cables for data transmission in place of 3 pin 5 pin dmx fixtures may be implemented in a 3 pin dmx line when inserting stan dard 5 pin data cables in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion 6
- Special note line termination 6
- When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 110 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior 6
- Your cables should be made with a male and female xlr connector on either end of the cable also remember that dmx cable must be daisy chained and cannot be split 6
- Channel value function 7
- Focus spot two 16 channel mode 7
- Channel value function 8
- Focus spot two 16 channel mode 8
- Focus spot two 18 channel mode 8
- Channel value function 9
- Focus spot two 18 channel mode 9
- Channel mod 10
- Dmx addres 10
- Set the dmx address 10
- Slave mode 10
- System menu when making adjustments press enter to confirm your setup then press and hold the menu button for at least 3 seconds to exit without making any adjust ments press the menu button the display will lock after 30 seconds press the menu button for 3 seconds to unlock 10
- This will let you select your desired dmx channel mode 10
- This will let you set unit as a master or slave in a master slave configuration 10
- Dimmer curv 11
- Dmx stat 11
- In this mode the unit will run in sound active mode 11
- In this mode you can adjust the sound sensitivity of the sound active mode 11
- In this mode you can select the dimmer curve 11
- Show mod 11
- Show modes 0 4 factory programs show mode can run with or without sound active mode active 11
- Sound mod 11
- Sound sens 11
- This mode can be used as a precaution mode that in case the dmx signal is lost the operating mode chosen in the setup is the running mode the fixture will go into when the dmx signal is lost you can also set this as the operating mode you would like the unit to return to when power is applied 11
- Auto tes 12
- Back ligh 12
- Firmware versio 12
- Fixture tim 12
- Led temp 12
- Pan inver 12
- Pan inversion 12
- Pro defaul 12
- Restore the factory settings 12
- This function will run a self test program 12
- This will display the firmware soft ware version 12
- Tilt inver 12
- Tilt inversion 12
- Use this function to reset the motors 12
- With this function you can display the run ning temperature of the unit 12
- With this function you can display the running time of the unit 12
- With this function you can make the back light automatically turn off after one minute 12
- Adjustment of the pan home position 13
- Adjustment of the tilt home position 13
- Color offse 13
- Focus offse 13
- Gobo offse 13
- Pan offse 13
- Prism offse 13
- Rgobo offse 13
- Setting adjustment for the color wheel 13
- Setting adjustment for the focus 13
- Setting adjustment for the gobo wheel 13
- Setting adjustment for the prism 13
- Setting adjustment for the rotating gobo motor 13
- Tilt offse 13
- Master slave operation 14
- Show mode 14
- Sound active mode 14
- Universal dmx control 14
- Gently and carefully remove the retainer ring after the re tainer ring is removed carefully remove the gobo 5 change the gobo and replace the retainer ring carefully slide the gobo holder back into the housing slot 15
- Once you loosen the single screw you are able to swing the head back see instruction number 2 on the next page you will now be able to access the gobo wheel turn the wheel with your hand until you come across the gobo you would like to change 15
- Reassemble the unit 15
- The gobo s in this unit are interchangable please be very care ful when replacing the gobo caution never open the unit when in use always disconnect the main power before attempting to change the gobos 15
- To change a gobo rotate the moving head so that the uv lens is located on top unscrew the single middle screw see instruction number 1 on the next page 15
- To remove the gobo holder gently pull the gobo holder to wards the front of the unit and slide it up and out 15
- Focus spot two dimmer curve chart 16
- Focus spot two photometric chart 16
- Focus spot two removing the head casing 16
- Remove the lens 4 unscrew the 4 screws located on the other side 16
- Unscrew the single screw 2 flip the top cover back 16
- Adj products llc www adj com focus spot two instruction manual page 32 adj products llc www adj com focus spot two instruction manual page 33 17
- Be sure the external fuse has not blown the fuse is located on the rear panel of the unit 2 be sure the fuse holder is completely and properly seated unit does not respond to sound 17
- Due to fog residue smoke and dust cleaning the internal and exter nal optical lenses and mirror should be carried out periodically to optimize light output cleaning frequency depends on the environ ment in which the fixture operates i e smoke fog residue dust dew in heavy club use we recommend cleaning on a monthly basis periodic cleaning will ensure longevity and crisp output 1 use normal glass cleaner and a soft cloth to wipe down the out side casing 2 use a brush to wipe down the cooling vents and fan grill 3 clean the external optics with glass cleaner and a soft cloth every 20 days 4 clean the internal optics with glass cleaner and a soft cloth every 30 60 days 5 always be sure to dry all parts completely before plugging the unit back in 17
- Focus spot two cleaning 17
- Focus spot two fuse replacement 17
- Focus spot two trouble shooting 17
- Focus spot two warranty 17
- Locate and remove the unit s powercon cord once the cord has been removed the fuse holder is located under the power socket use a phil ips head screw driver unscrew the fuse holder remove the bad fuse and replace with a new one 17
- Low frequencies bass should cause the unit to react to sound tapping on the microphone quiet or high pitched sounds may not activate the unit 17
- No light output from the unit 17
- Trouble shooting listed below are a few common problems that you may encounter with solutions 17
