ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 9ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 8
Power Supply: The ADJ Focus Spot Two contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged into
the power source. With this switch there is no need to worry about the
correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Focus Spot Two can be controlled via DMX-512 proto-
col. The Focus Spot Two has 2 DMX channel modes; 16 channel mode
& 18 channel mode. The DMX address is set elec-
tronically using the controls on the front panel of
the unit. Your unit and your DMX controller require
a approved DMX-512 110 Ohm Data cable for data
input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your
own cables, be sure to use standard 110-120 Ohm
shielded cable (This cable may be purchased at
almost all professional sound and lighting stores).
Focus Spot Two DMX Set Up
Figure 1

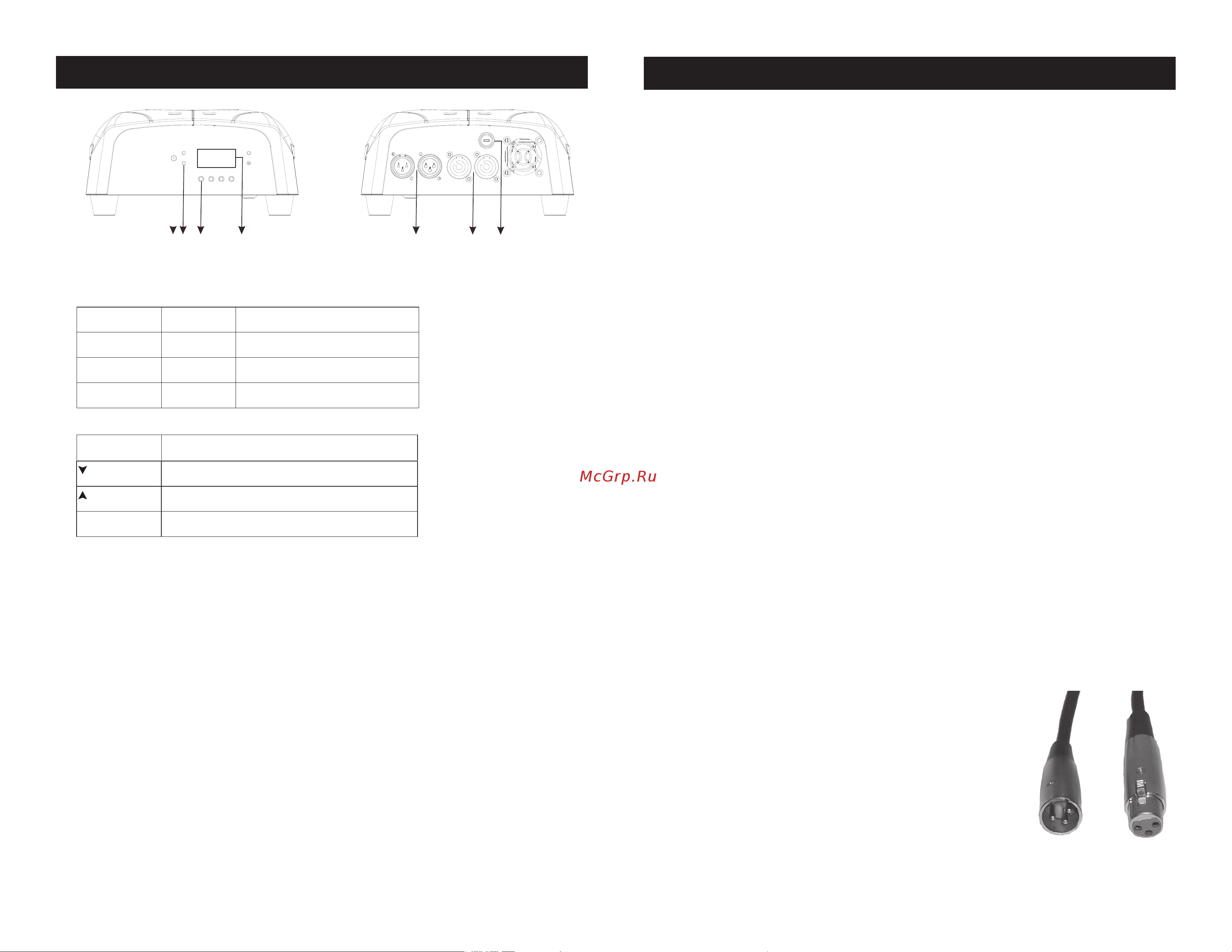

Focus Spot Two Base Layout
1
2 3
4
5
6
7
1. IRreceiver: ToreceivetheIRsignal;
2. LED:
DMX On DMX inputpresent
MASTER On MasterMode
SL AVE ON Slave Mode
SOUND Flashing Sound activation
3. Button:
MENU Toselecttheprogramming functions
UP Togoforwardintheselectedfunctions
DOWN Togobackwardintheselectedfunctions
ENTER Toconrmtheselectedfunctions
4. Display:Toshow thevariousmenusandtheselectedfunction;
5. DMXIn/Out: 3‐pinXLRconnectorsforDMX512operation;
6. PowerIn/out: Connectors for powerinput/output;
7. Fuse(T6.3Amp): Protectstheunitfromover‐voltageorshortcircuit.
