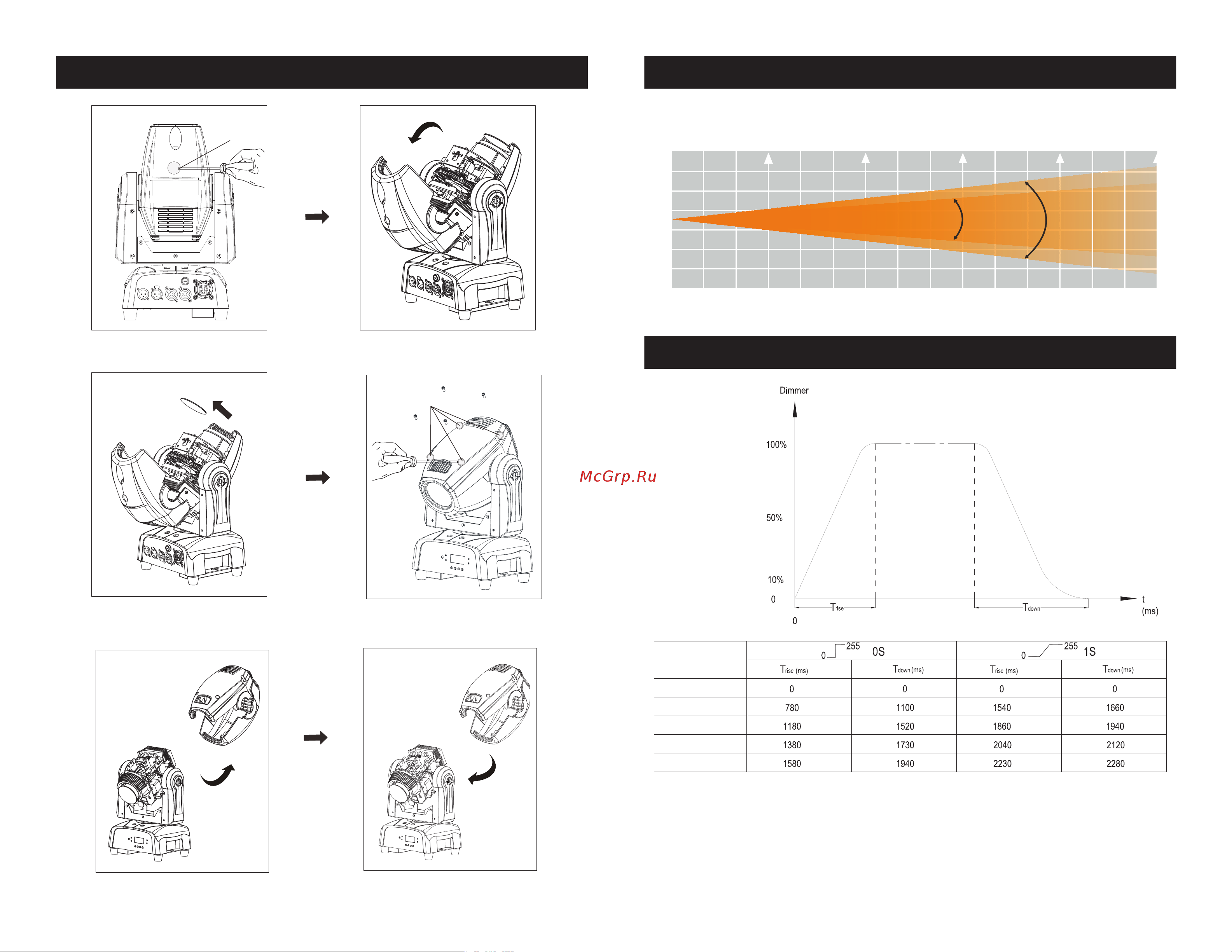

AMERICAN DJ Focus Spot TWO [16/18] Unscrew the single screw 2 flip the top cover back

ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 30 ADJ Products, LLC - www.adj.com - Focus Spot Two Instruction Manual Page 31

Screw

Scr e w

Focus Spot Two Removing the Head Casing

1. Unscrew the single screw 2. Flip the top cover back

3. Remove the lens

4. Unscrew the 4 screws

located on the other side

Focus Spot Two Dimmer Curve Chart

(Fade Time) (Fade Time)

Ramp Effect

Standard

Stage

Architectural

Theatre

Focus Spot Two Photometric Chart

Distance(m)

Lux

34410 8370 3790 2090

Lux

25700 6240 2780 1530W

0.317

0.634

0.95

1.267

Diameter(m)15°

Diameter(m)20°

0.389

0.778

1.166

1.555

1.584

1.944

1300

950

ADJ-MS60

Содержание

Focus spot two 1
User instructions 1
Caution 2
Customer support 2
Introduction 2
Unpacking 2
Warning 2
Mm 15 5 4
Mm 6 1 4
Mm 9 3 4
Suspender screew 4
Dmx 512 5
Power supply 5
Be sure to follow figures two and three when making your own cables do not use the ground lug on the xlr connector do not con nect the cable s shield conductor to the ground lug or allow the shield conductor to come in contact with the xlr s outer casing grounding the shield could cause a short circuit and erratic behavior 6
Conductor 5 pin xlr male in 3 pin xlr female out 6
Data compliment signal 6
Data true signal 6
Focus spot two dmx set up 6
Ground shield 6
Not used 6
Notice 6
Pin 4 do not use 6
Pin 5 do not use 6
Pin xlr dmx connectors 6
Pin xlr to 5 pin xlr conversion 6
Some manufactures use 5 pin dmx 512 data cables for data transmission in place of 3 pin 5 pin dmx fixtures may be implemented in a 3 pin dmx line when inserting stan dard 5 pin data cables in to a 3 pin line a cable adaptor must be used these adaptors are readily available at most electric stores the chart below details a proper cable conversion 6
Special note line termination 6
When longer runs of cable are used you may need to use a terminator on the last unit to avoid erratic behavior a terminator is a 110 120 ohm 1 4 watt resistor which is con nected between pins 2 and 3 of a male xlr connector data and data this unit is inserted in the female xlr connector of the last unit in your daisy chain to terminate the line using a cable terminator adj part number z dmx t will decrease the possibilities of erratic behavior 6
Your cables should be made with a male and female xlr connector on either end of the cable also remember that dmx cable must be daisy chained and cannot be split 6
Channel value function 7
Focus spot two 16 channel mode 7
Channel value function 8
Focus spot two 16 channel mode 8
Focus spot two 18 channel mode 8
Channel value function 9
Focus spot two 18 channel mode 9
Channel mod 10
Dmx addres 10
Set the dmx address 10
Slave mode 10
System menu when making adjustments press enter to confirm your setup then press and hold the menu button for at least 3 seconds to exit without making any adjust ments press the menu button the display will lock after 30 seconds press the menu button for 3 seconds to unlock 10
This will let you select your desired dmx channel mode 10
This will let you set unit as a master or slave in a master slave configuration 10
Dimmer curv 11
Dmx stat 11
In this mode the unit will run in sound active mode 11
In this mode you can adjust the sound sensitivity of the sound active mode 11
In this mode you can select the dimmer curve 11
Show mod 11
Show modes 0 4 factory programs show mode can run with or without sound active mode active 11
Sound mod 11
Sound sens 11
This mode can be used as a precaution mode that in case the dmx signal is lost the operating mode chosen in the setup is the running mode the fixture will go into when the dmx signal is lost you can also set this as the operating mode you would like the unit to return to when power is applied 11
Auto tes 12
Back ligh 12
Firmware versio 12
Fixture tim 12
Led temp 12
Pan inver 12
Pan inversion 12
Pro defaul 12
Restore the factory settings 12
This function will run a self test program 12
This will display the firmware soft ware version 12
Tilt inver 12
Tilt inversion 12
Use this function to reset the motors 12
With this function you can display the run ning temperature of the unit 12
With this function you can display the running time of the unit 12
With this function you can make the back light automatically turn off after one minute 12
Adjustment of the pan home position 13
Adjustment of the tilt home position 13
Color offse 13
Focus offse 13
Gobo offse 13
Pan offse 13
Prism offse 13
Rgobo offse 13
Setting adjustment for the color wheel 13
Setting adjustment for the focus 13
Setting adjustment for the gobo wheel 13
Setting adjustment for the prism 13
Setting adjustment for the rotating gobo motor 13
Tilt offse 13
Master slave operation 14
Show mode 14
Sound active mode 14
Universal dmx control 14
Gently and carefully remove the retainer ring after the re tainer ring is removed carefully remove the gobo 5 change the gobo and replace the retainer ring carefully slide the gobo holder back into the housing slot 15
Once you loosen the single screw you are able to swing the head back see instruction number 2 on the next page you will now be able to access the gobo wheel turn the wheel with your hand until you come across the gobo you would like to change 15
Reassemble the unit 15
The gobo s in this unit are interchangable please be very care ful when replacing the gobo caution never open the unit when in use always disconnect the main power before attempting to change the gobos 15
To change a gobo rotate the moving head so that the uv lens is located on top unscrew the single middle screw see instruction number 1 on the next page 15
To remove the gobo holder gently pull the gobo holder to wards the front of the unit and slide it up and out 15
Focus spot two dimmer curve chart 16
Focus spot two photometric chart 16
Focus spot two removing the head casing 16
Remove the lens 4 unscrew the 4 screws located on the other side 16
Unscrew the single screw 2 flip the top cover back 16
Adj products llc www adj com focus spot two instruction manual page 32 adj products llc www adj com focus spot two instruction manual page 33 17
Be sure the external fuse has not blown the fuse is located on the rear panel of the unit 2 be sure the fuse holder is completely and properly seated unit does not respond to sound 17
Due to fog residue smoke and dust cleaning the internal and exter nal optical lenses and mirror should be carried out periodically to optimize light output cleaning frequency depends on the environ ment in which the fixture operates i e smoke fog residue dust dew in heavy club use we recommend cleaning on a monthly basis periodic cleaning will ensure longevity and crisp output 1 use normal glass cleaner and a soft cloth to wipe down the out side casing 2 use a brush to wipe down the cooling vents and fan grill 3 clean the external optics with glass cleaner and a soft cloth every 20 days 4 clean the internal optics with glass cleaner and a soft cloth every 30 60 days 5 always be sure to dry all parts completely before plugging the unit back in 17
Focus spot two cleaning 17
Focus spot two fuse replacement 17
Focus spot two trouble shooting 17
Focus spot two warranty 17
Locate and remove the unit s powercon cord once the cord has been removed the fuse holder is located under the power socket use a phil ips head screw driver unscrew the fuse holder remove the bad fuse and replace with a new one 17
Low frequencies bass should cause the unit to react to sound tapping on the microphone quiet or high pitched sounds may not activate the unit 17
No light output from the unit 17
Trouble shooting listed below are a few common problems that you may encounter with solutions 17
A d j supply europe b v junostraat 2 6468 ew kerkrade the netherlands service adjgroup eu www adj eu tel 31 45 546 85 00 fax 31 45 546 85 99 18
Auto sensing voltage 18
Model focus spot two 18
Please note 18
Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice 18
This fixture contains a automatic volt age switch which will auto sense the voltage when it is plugged into the power source adj products llc 6122 s eastern ave los angeles ca 90040 usa tel 323 582 2650 fax 323 725 6100 web www adj com e mail info americandj com 18
