Using the SKM 500 G4
113
Using the SKM 500 G4
These sections contain detailed information about using the SKM 500 G4.
You can find information on installation and startup of the SKM 500 G4 un-
der “Installing the SKM 500 G4”.

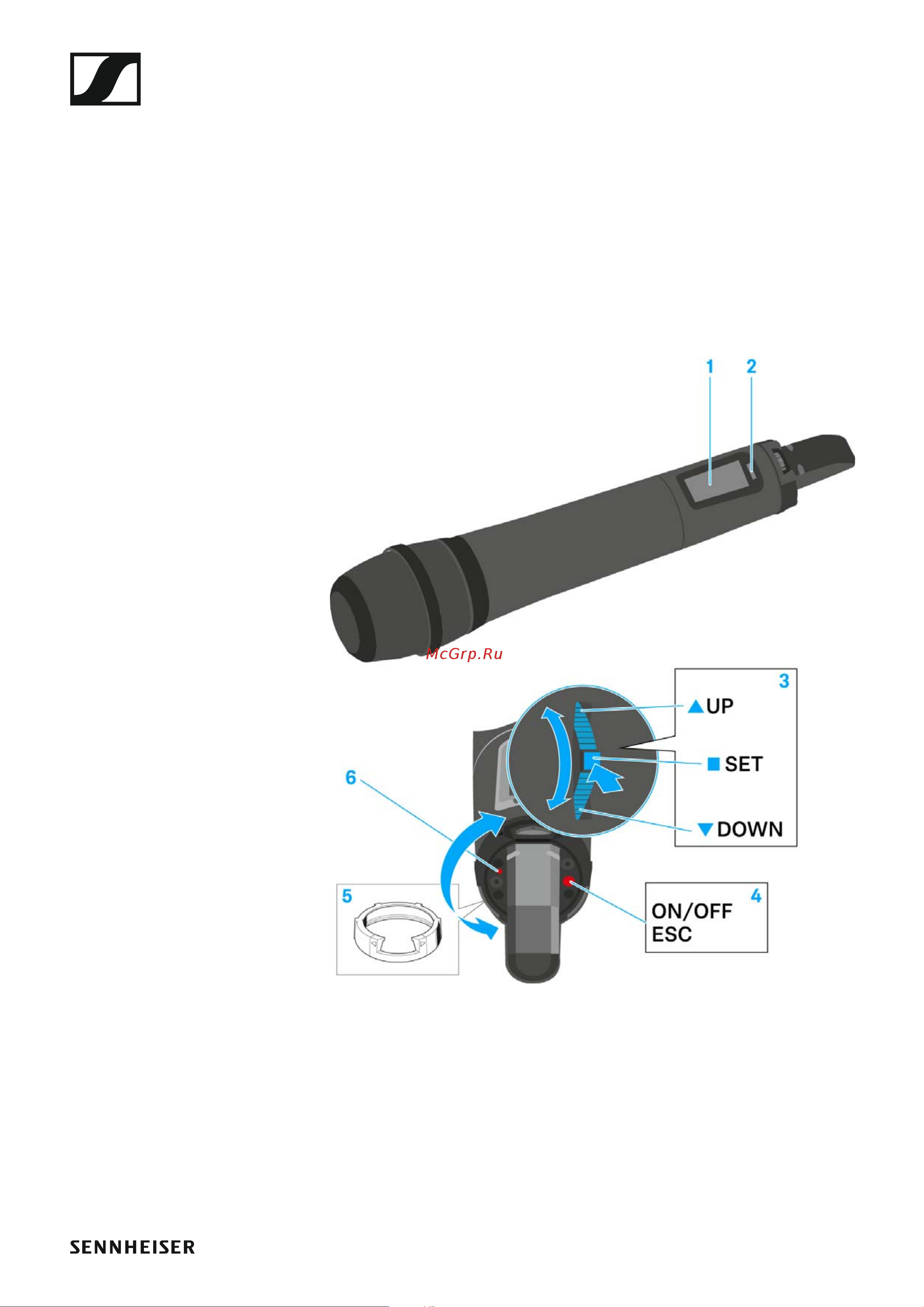

Operating elements of the SKM 500 G4 handheld
transmitter
►
1 Display panel
• See “Displays on the SKM 500 G4 handheld transmitter display pan-
el”
2 Infra-red interface
• See “Synchronizing devices”
3 DOWN, UP and SET multi-function switch
• See “Buttons for navigating the SKM 500 G4 menu”
