Using the SK 300 G4
130
Muting the bodypack transmitter (AF mute)
You can mute the audio signal in two ways:
Muting the audio signal with the MUTE switch
You can mute the audio signal with the MUTE switch.
To do this, the MUTE switch function must be configured to AF On/Off.
You can find more information about this subject under “Advanced > Mute
Mode menu item”.

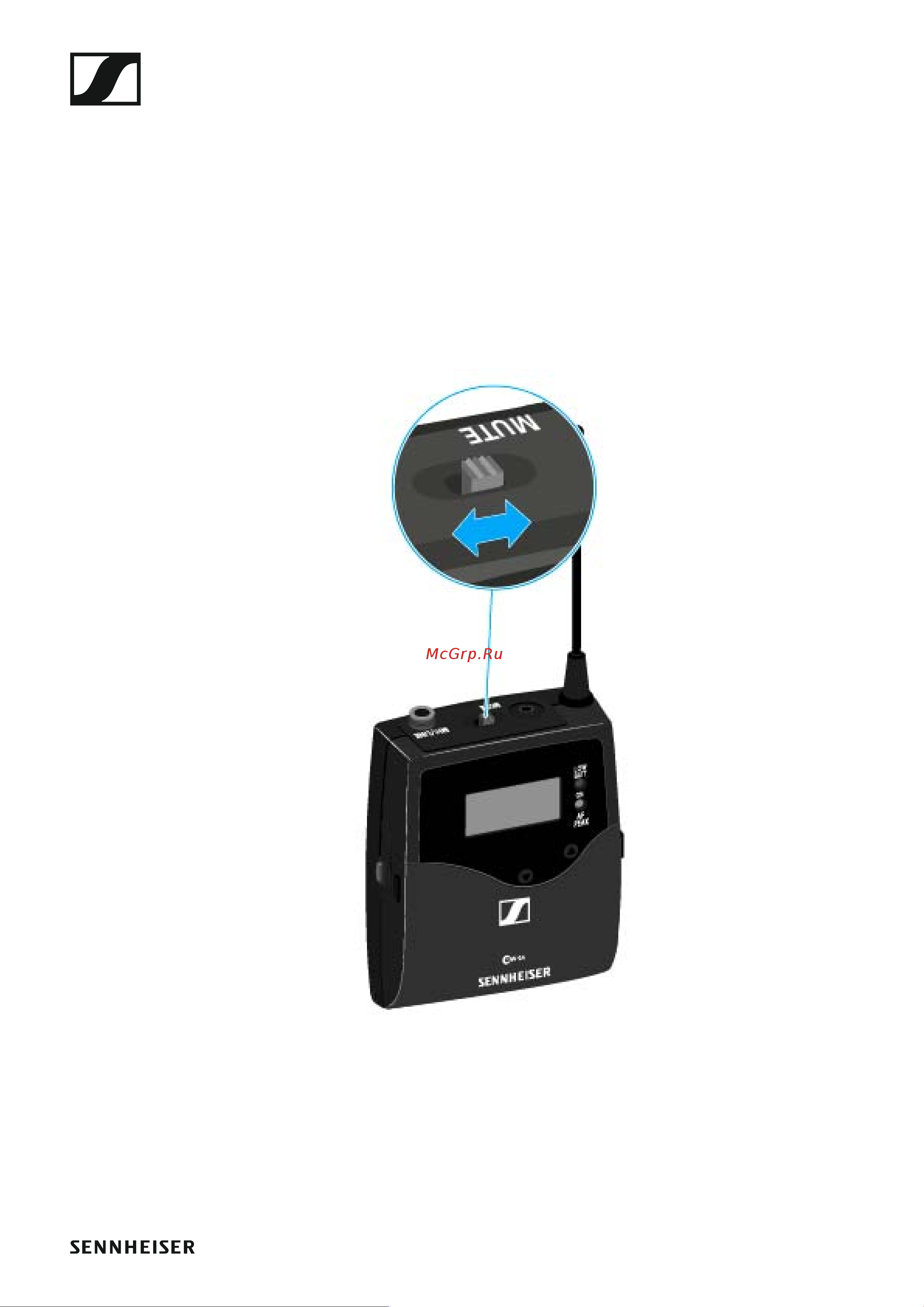

▷ Slide the MUTE switch to the MUTE position.
The audio signal is muted. The message MUTE is shown on the display.
Muting the audio signal with the RMS 1 remote mute switch
See “Using the SK 300 G4 with the RMS 1 remote mute switch”
