Using the SK 500 G4
161
Advanced > Tune menu item
• Configuring the transmission frequency and frequency bank U
When you have configured the bodypack transmitter to a system bank and
you call up the Tune menu item, channel 1 of the frequency bank U is auto-
matically set. The message U.1 briefly appears in the display. In the factory
settings, the channels of the frequency bank U are not assigned to any
transmission frequency.
While you work in the Tune menu, the RF signal is deactivated.
You can configure a transmission frequency for the current channel or se-
lect a channel in the frequency bank U and configure a transmission fre-
quency for this channel in the Tune menu. Be sure to note the information
on frequency selection, see “Setting notes”.
Only adjusting the frequency

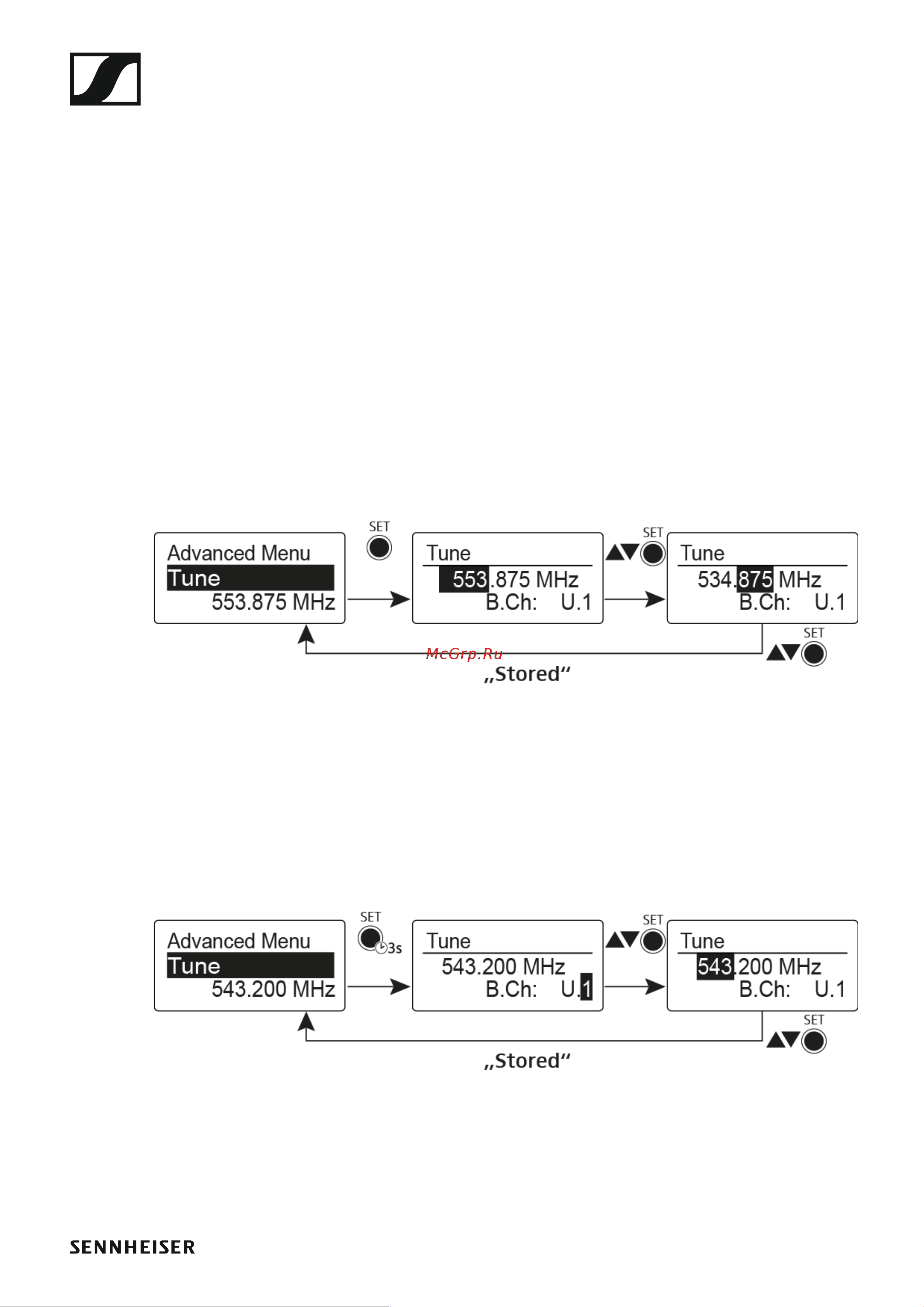

To configure the transmission frequency for the current channel:
▷ Open the Tune menu item in the Advanced menu.
The frequency selection appears.
►
▷ Configure the desired frequency.
▷ Press the SET button.
Your settings will be saved. You are now back in the operating menu.
Setting the channel and frequency
To select a channel and assign it a frequency:
▷ Open the Tune menu item in the Advanced menu by pressing and hold-
ing the SET button until the frequency bank selection appears.
►
▷ Set the desired channel.
▷ Press the SET button.
The frequency selection appears.
▷ Configure the frequency.
