Synchronizing devices
165
Synchronizing devices
You can synchronize ew 300-500 G4 series transmitters and receivers via
the receiver’s infrared interface.
You can adjust the Parameters to be transferred to the transmitter here:
“Advanced -> Sync Settings menu item”.

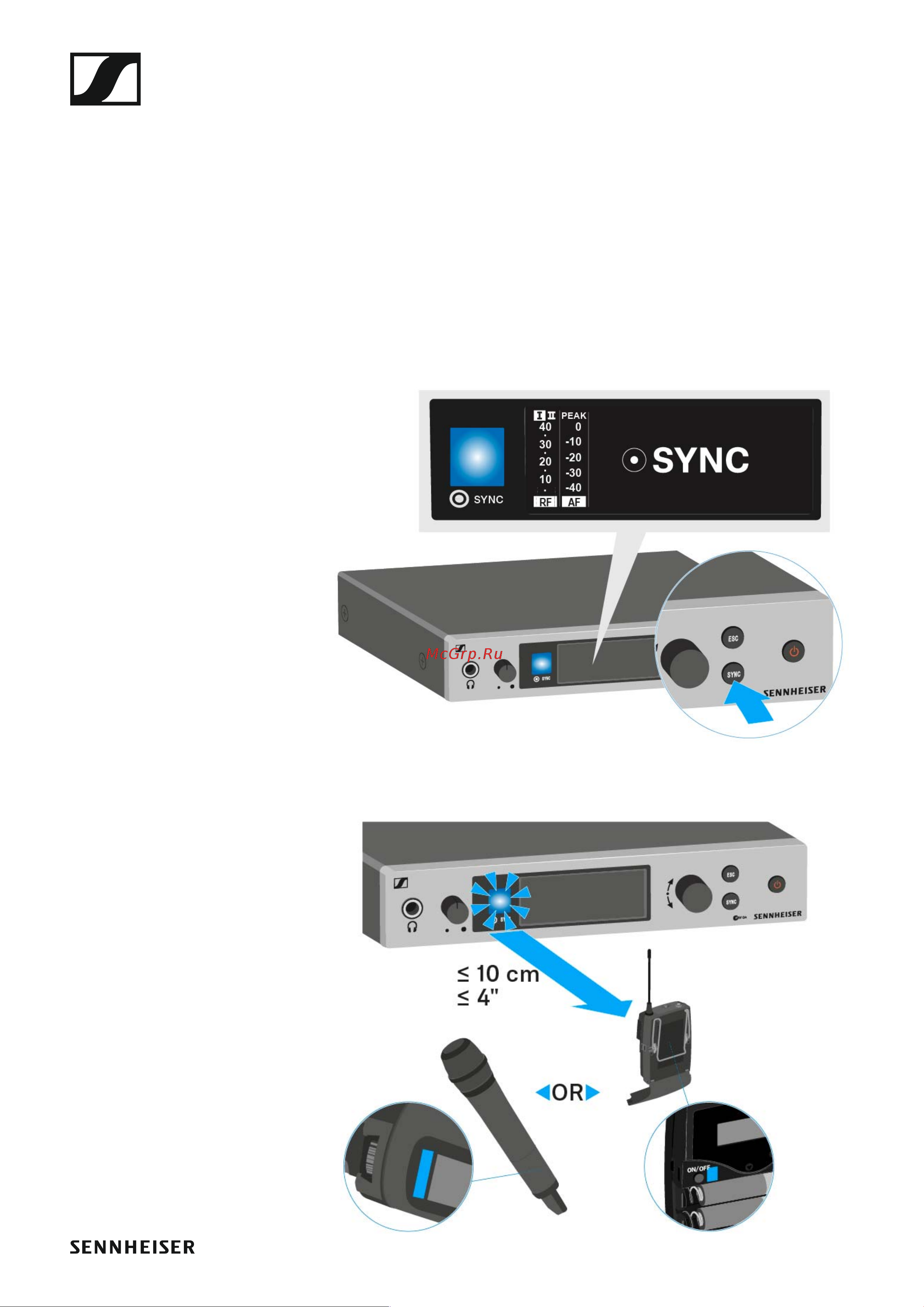

To synchronize the devices:
▷ Switch the transmitter and the receiver on.
▷ Press the SYNC button on the receiver.
Sync appears in the receiver’s display and the blue LED turns blue.
▷ Hold the infra-red interface of the transmitter in front of the infra-red
interface of the receiver.
