Accessories
18

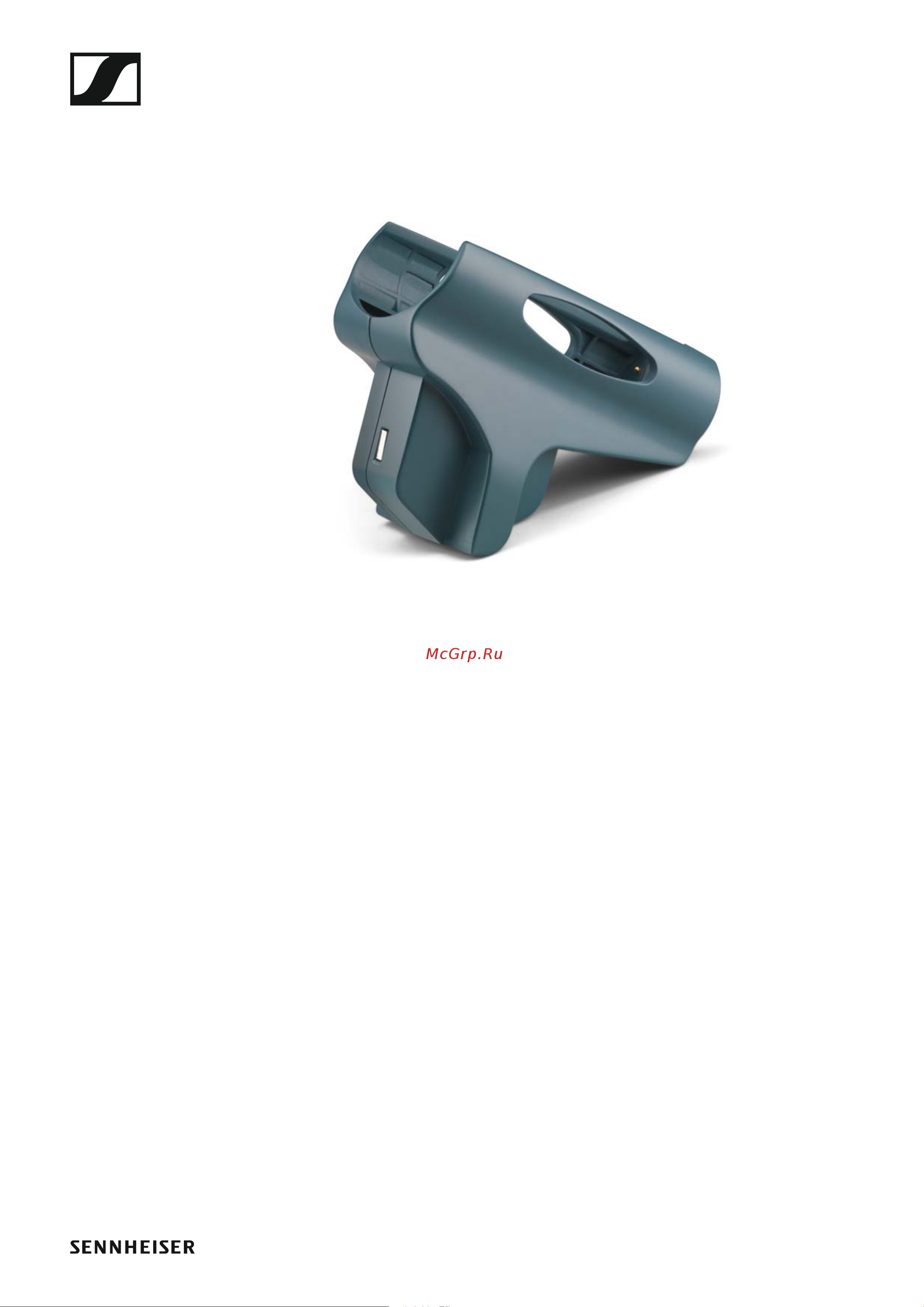

LA 2 charging adapter
Charging adapter for L 2015 charger for charging SKM G4 handheld trans-
mitters with installed BA 2015 rechargeable battery.
Article no. 503162
►
