Using the SK 300 G4
144

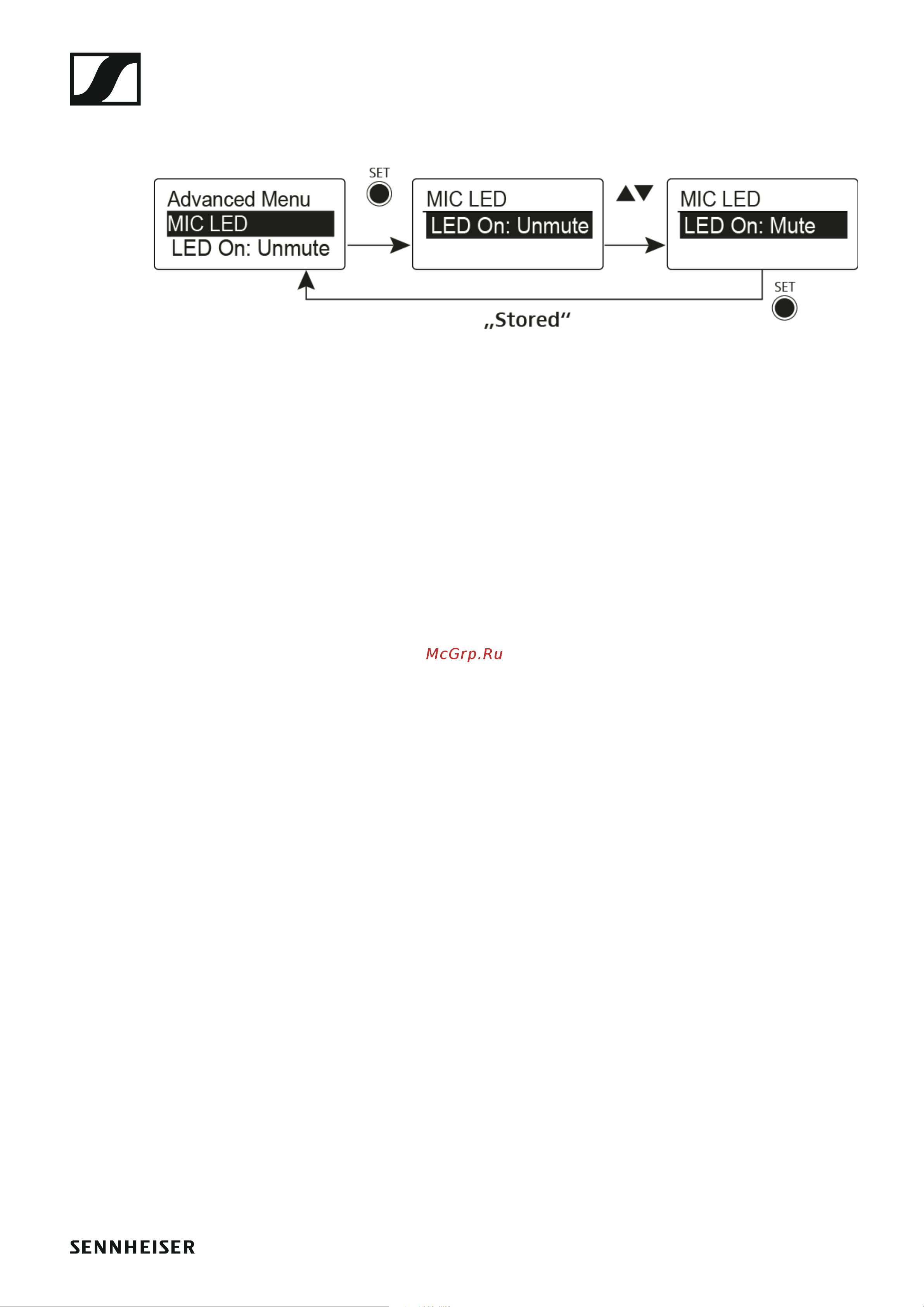

Advanced > MIC LED menu item
•Configure the STATUS LED of the RMS 1 remote mute switch
►
In the MIC LED menu item you can configure and deactivate the STATUS
LED (see “Connecting the RMS 1 mute switch to the SK 300”) of the RMS 1
remote mute switch regardless of the settings of the “Advanced > Mute
Mode menu item” and the status of the RF signal.
LED On: setting Unmute
•The STATUS LED is illuminated when the bodypack transmitter is send-
ing an RF signal or is not muted.
LED On: setting Mute
•The STATUS LED is illuminated when the bodypack transmitter is not
sending an RF signal or is muted.
Disable LED setting
•The STATUS LED is deactivated.
