Installing the ASA 214
57
Configuring multi-channel systems
The following options for connecting multi-channel systems are possible:

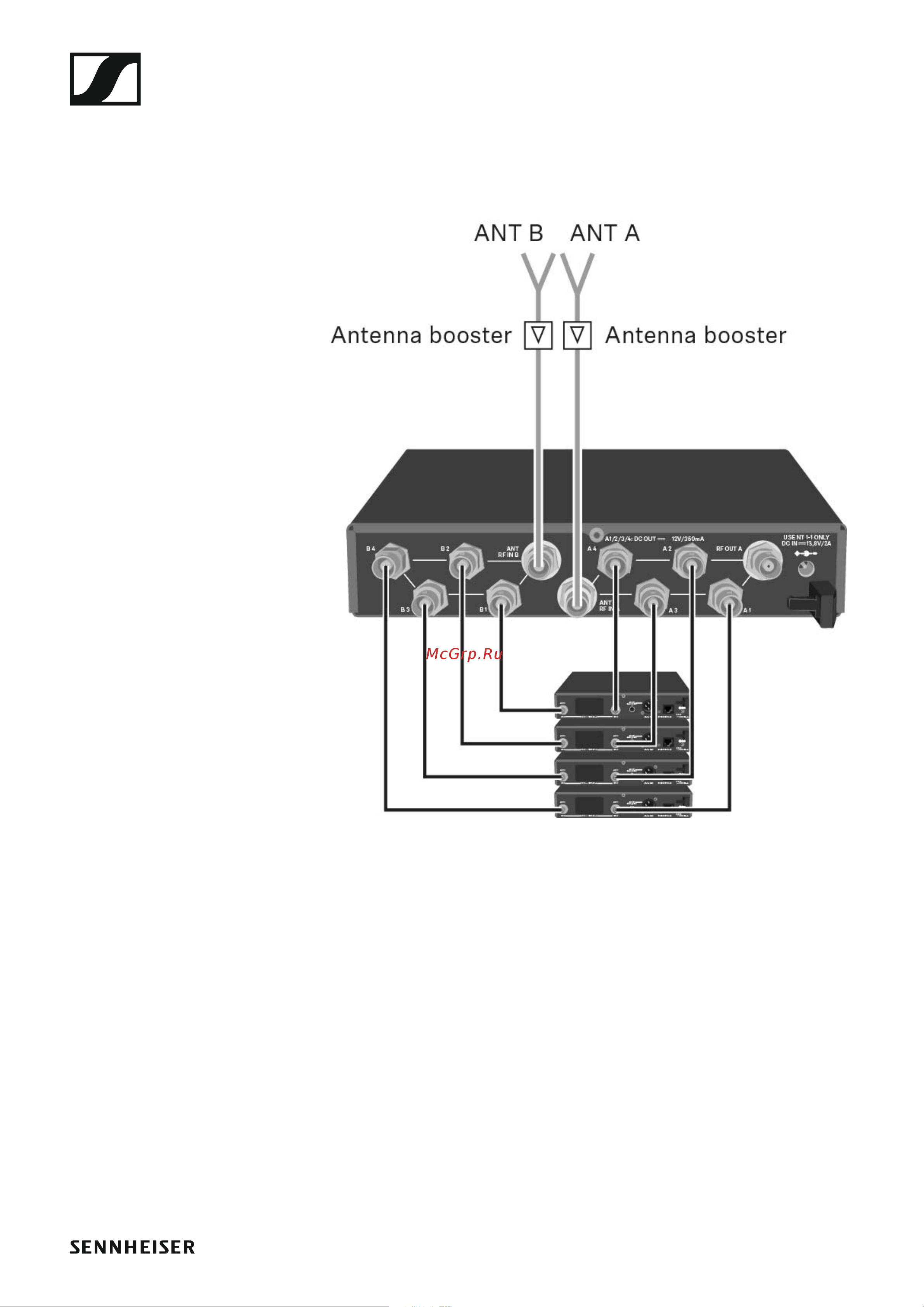

Option 1: Two antennas supply a 4-channel system
