Using ew 300–500 G4 series devices
65

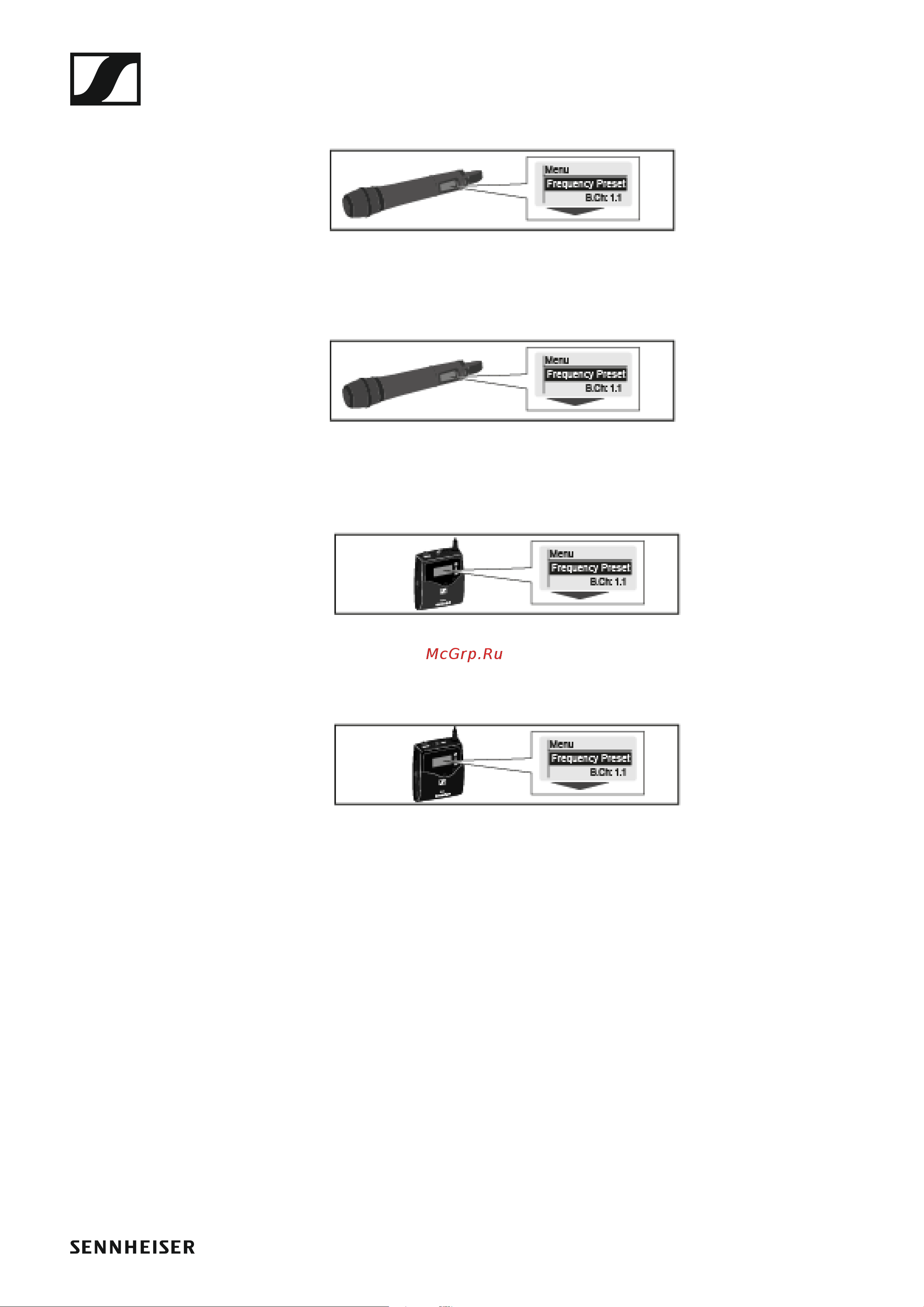

• Operating the menu of the handheld transmitter SKM 300 G4 >> “Dis-
plays on the SKM 300 G4 handheld transmitter display panel”
• Operating the menu of the handheld transmitter SKM 500 G4 >> “Dis-
plays on the SKM 500 G4 handheld transmitter display panel”
• Operating the menu of the bodypack transmitter SK 300 G4 >> “Dis-
plays on the SK 300 G4 bodypack transmitter display panel”
• Operating the menu of the bodypack transmitter SK 500 G4 >> “Dis-
plays on the SK 500 G4 bodypack transmitter display panel”
