Using the EM 300-500 G4
83

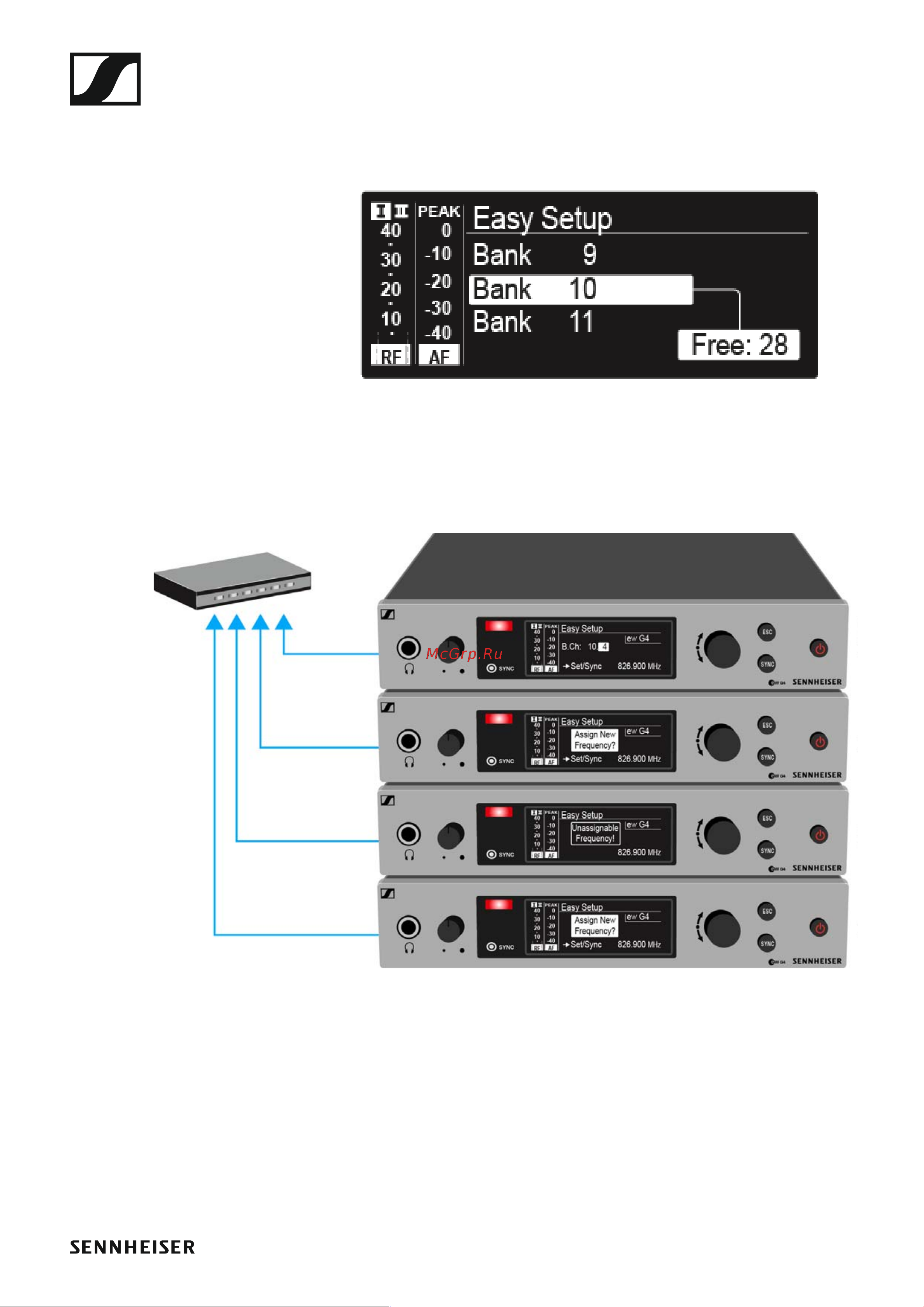

▷ Perform the frequency scan on the master receiver as described above.
▷ From the scan results in the master receiver, select a frequency bank
with enough free channels.
After you make your selection, the display panels of the other receivers
will display the message Assign New Frequency?.
Receivers with non-compatible frequency ranges will display the mes-
sage Unassignable Frequency!.
