6-50
Program Mode
The Controllers (CTLS) Page
The Controllers (CTLS) Page

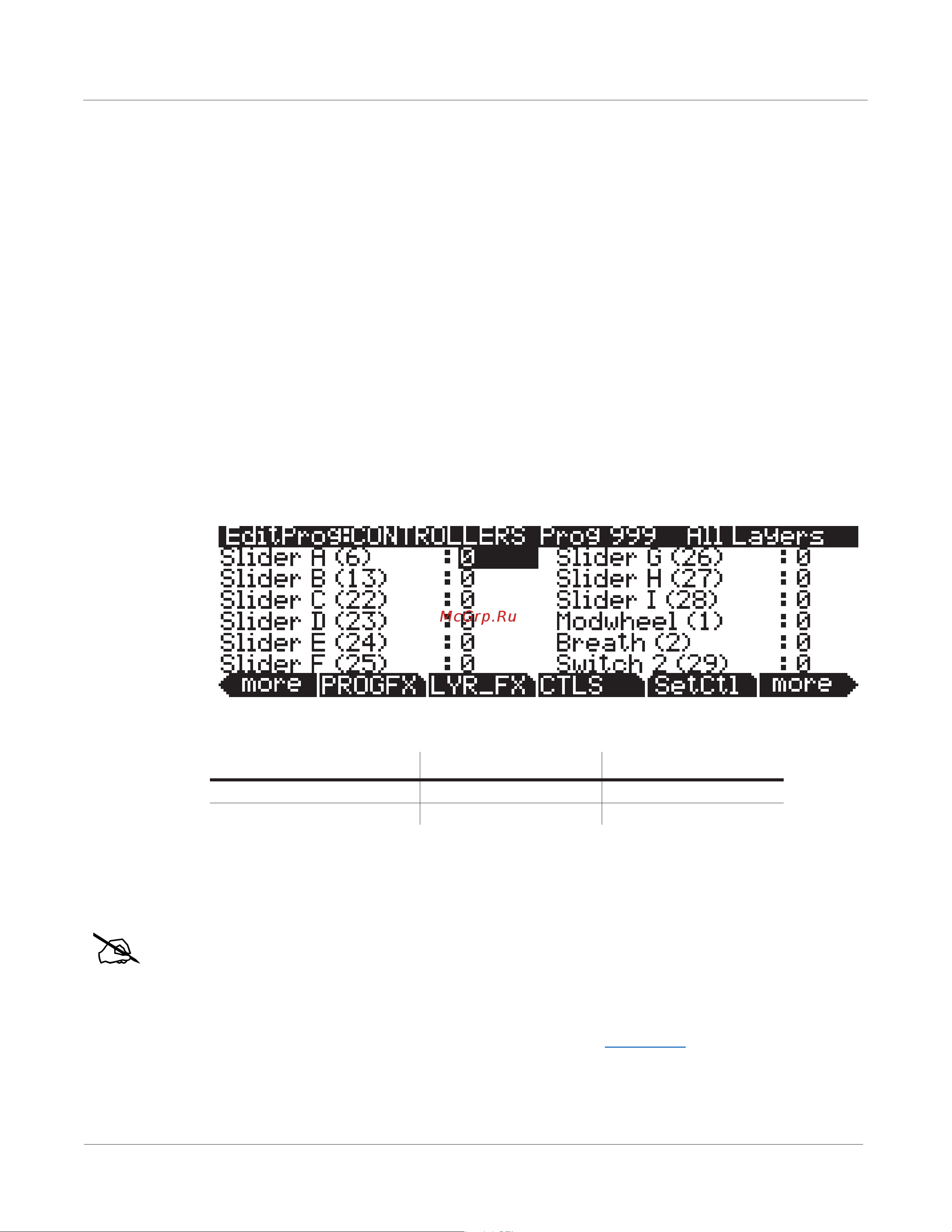

Press the CTLS soft button to call up the CONTROLLERS page. The CONTROLLERS page
shows a list of the PC3A’s controllers (sliders, Mod wheel, switch, etc.,) which can be used to
control program parameters. Use this page to set values for each controller that will be saved
with the program (entry values.) When a program is loaded, the entry values on this page are
sent to any program parameters that have been assigned to these controllers.
For example, the electric piano program 25 WoodstockClunker has Tremolo Depth assigned to
be controlled by the Mod Wheel. Turning up the Mod Wheel increases the Tremolo Depth and
allows you to hear more of the Tremolo eect. If you look at the CONTROLLERS page for 25
WoodstockClunker, Modwheel (1) is set to 37. This means the Mod Wheel sends a value of 37 to
set Tremolo Depth when the program is selected, allowing you to hear the Tremolo eect. If you
do not want to hear the Tremolo eect when the program is selected, edit the program and use
the CONTROLLERS page to set Modwheel (1) to 0, then save the program.
For controllers that have an entry value set to None, no value is sent for that controller when a
program is loaded. When and entry value of None is used, the value last used for that controller
(in the previous program or setup) is used. To set a value of None, use the alpha wheel or -/+
buttons to scroll below 0, or use the alphanumeric pad to enter -1, then press the Enter button.
Controller Range of Values Default Value
Slider A (6)...Breath (2) None, 0-127 0
Switch 2 (29) None, 0, 127 0
You can automatically set the values on the CONTROLLERS page to the physical controllers
current values by using the SetCtl soft button (located to the right of the CTLS soft button.) The
SetCtl soft button captures the positions of the controllers listed on the page.
Note: If you change programs, and then press the SetCtl soft button before moving any of the
controllers, the parameters on the CONTROLLERS page will remain at their previously set
values.
The number in parentheses that appears next to each controller name is the MIDI controller
number that each controller transmits by default, i.e., with the Control Setup set to 126 Internal
Voices on the MIDI mode Transmit page. See Control Setup on page 6-9 for details.
