15-8
Tutorial: Song Mode
Part 5: Fixing Mistakes
For each track in Song mode, you can x mistakes in your performance without re-recording the
entire performance. Here we will describe the method that is easiest for xing specic passages
in a track. (Forawaytoxsinglenotes,seeSong Editor: The EVENT Page on page 12-31 in Chapter 12,
Song Mode and the Song Editor.)

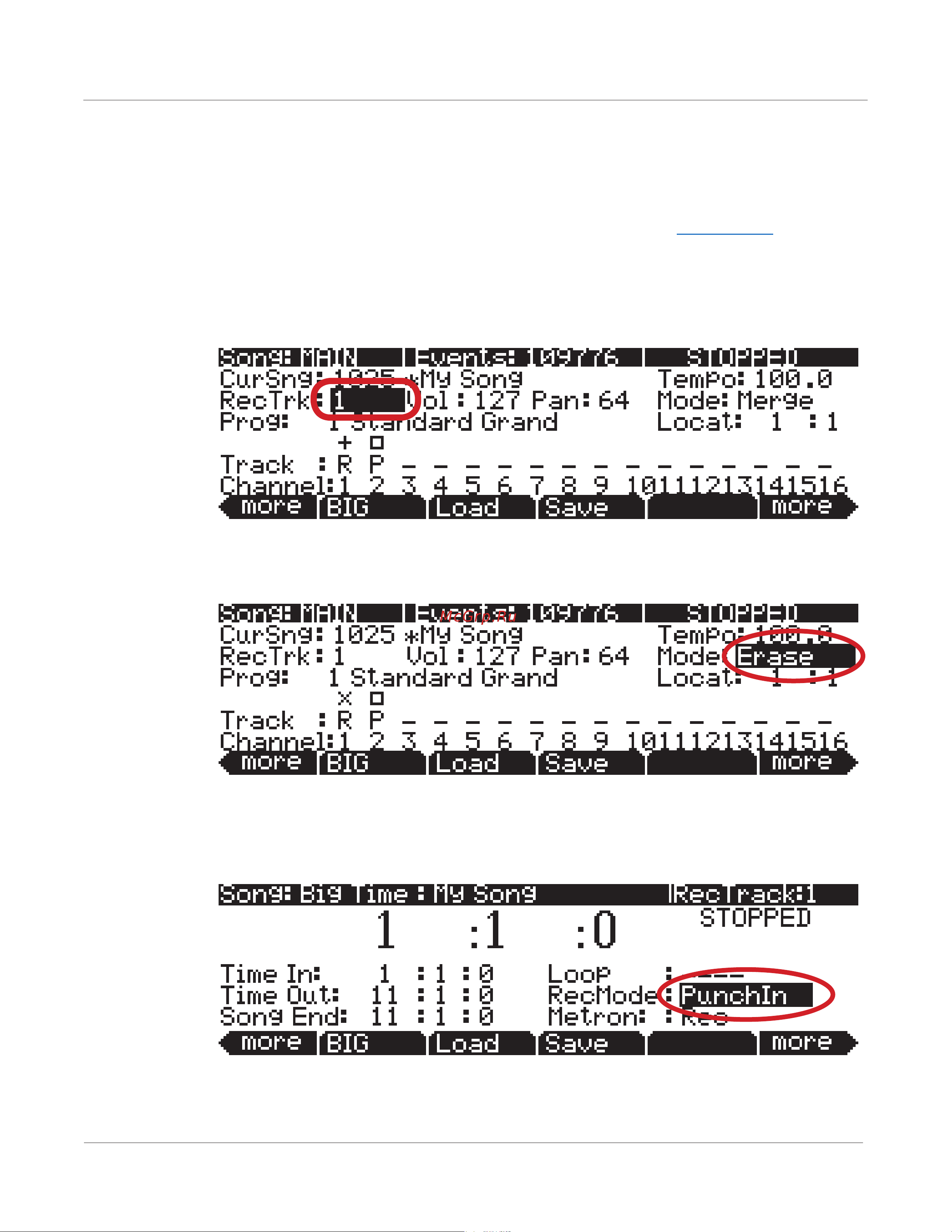

1. On the Song mode MAIN page, use the Chan/Zone buttons (to the left of the display) to Set
the RecTrk parameter to the track that you want to x. For example, let’s x track 1 (see
below.)
2. Set the Mode parameter to Erase (see below.) This causes previously recorded notes to be
erased when a track is being recorded into.
3. Press the BIG soft button to go to the Big Time page.
4. On the Big Time page, set the RecMode parameter to PunchIn. This causes recording to
only take place between the times set in the Time In and Time Out elds.
