Setup Mode
The Programmable Switch Pages: SWPRG1 to SWPRG8
7-67
TRIGGER KEYS (KEYTRG)

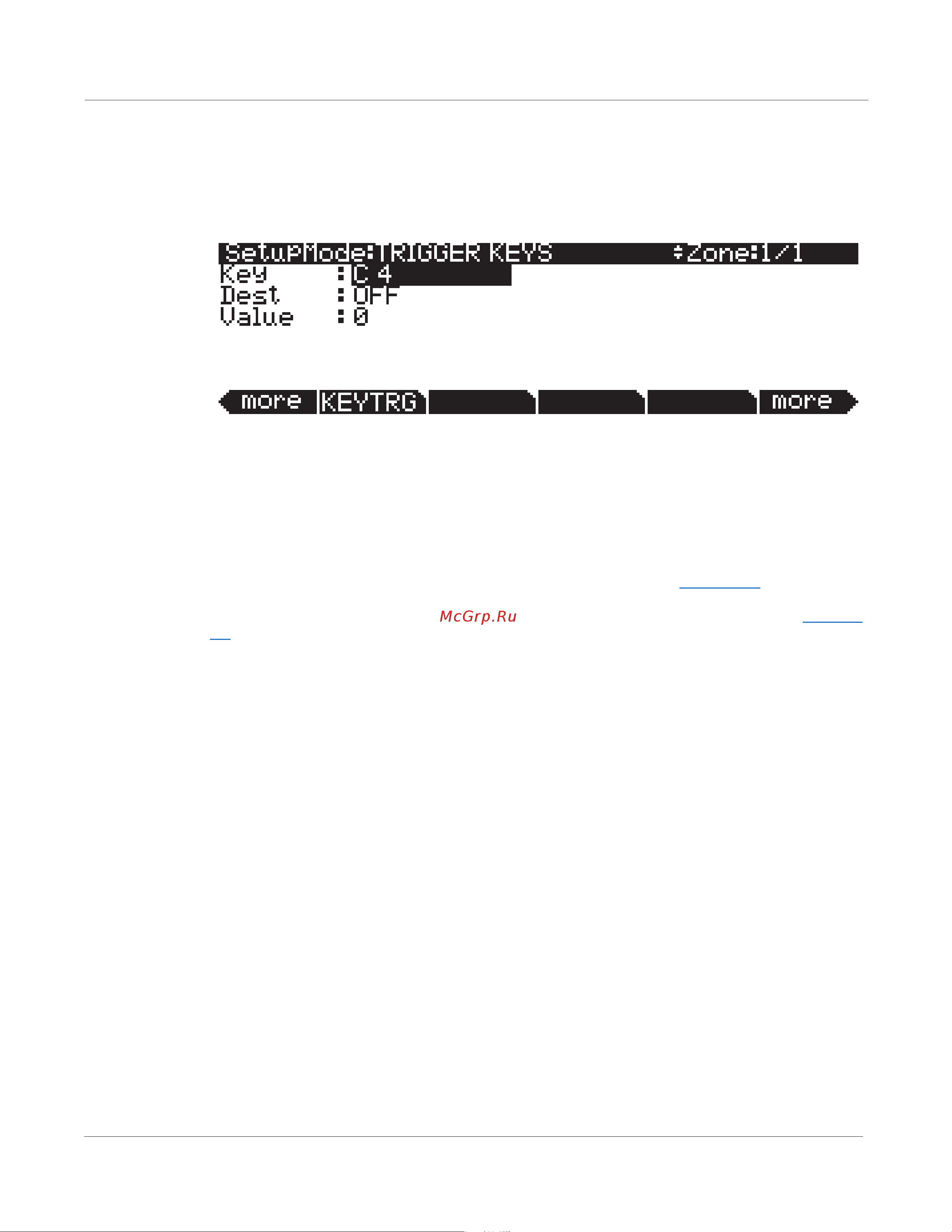

The TRIGGER KEYS page (see below) allows you to set a controller destination to be triggered by
playing a specic key.
In addition to generating a standard MIDI note on message, each key of the PC3A can be set to
trigger a controller destination. TRIGGER KEYS can be set independently per Zone. By using
Zones with overlapping key ranges, a single key can trigger multiple controller destinations. On
the TRIGGER KEYS page, select the Key eld and choose a note by holding the Enter button and
playing the desired key (you can also use the Alpha Wheel, -/+ buttons or alphanumeric pad to
choose a note.) With the desired note selected, use the Dest eld to select a controller destination
(see The Controller Destination List for details.) Set a value to send to the controller destination
with the Value eld. Once a destination and value are set, the playing the key will send the value
to the controller destination on the Zone’s MIDI Channel (see Channel on page 7-5 for details on
setting each Zone’s MIDI channel.) This may also send a continuous controller message to the
MIDI or USB out ports, depending on the Zone’s Destination parameter (see Destination on page
7-5 for details.)
