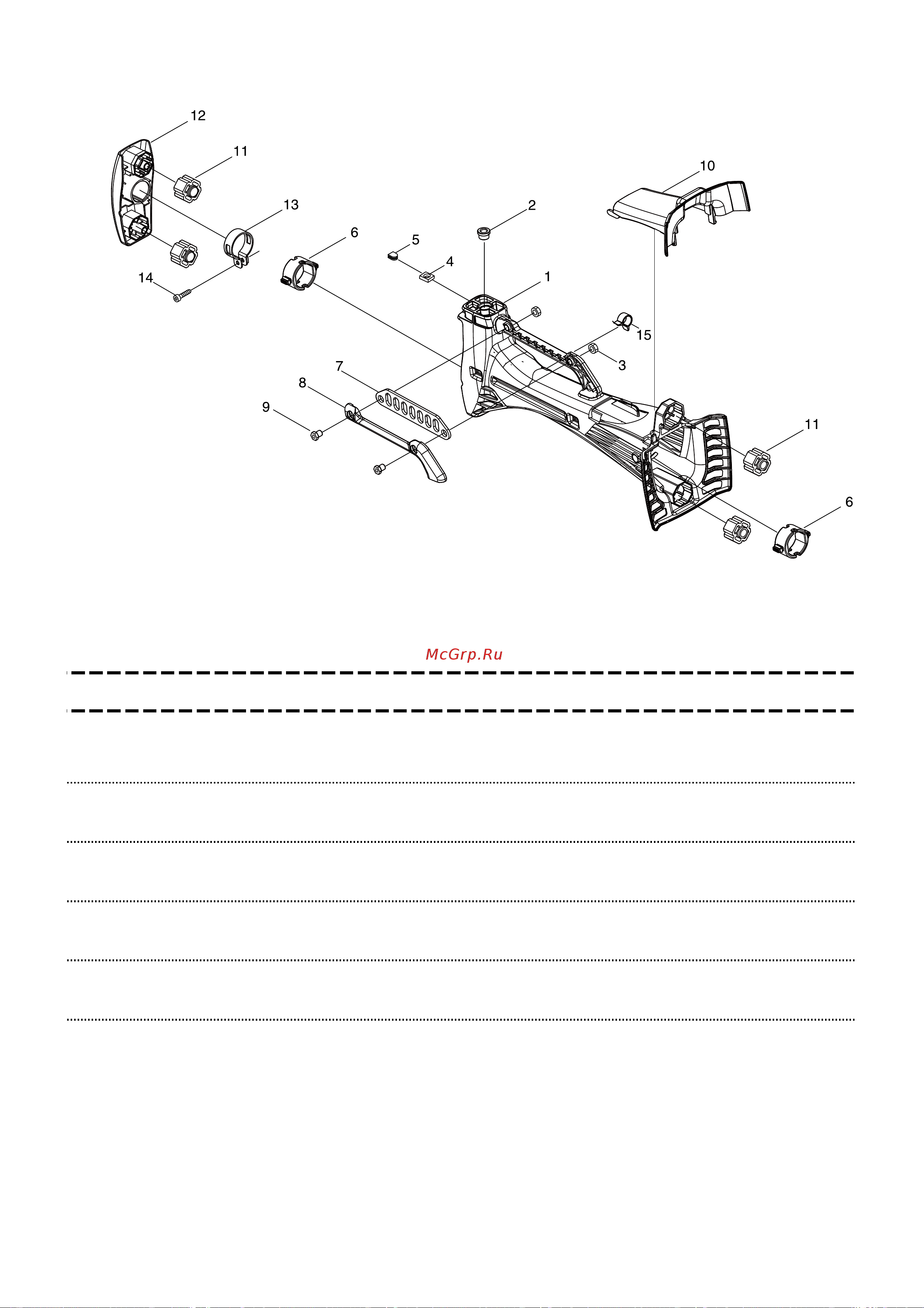

SRM-420ES/U(37)
9. SUPPORT,HANDLE
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 C415-000170 1
SUPPORTER, HANDLE
2 V355-000750 1
COLLAR,8
SRM-420ES
3 V263-000020 2
NUT,5
4 900565-50008 1
NUT
5 101538-28230 1
GROMMET,PLUG
6 C427-000050 2
STOPPER, HAMDLE
7 V150-003590 1
PLATE,EYE
8 C648-000030 1
HOLDER,LIFTING
9 V805-000150 2
BOLT, TORX 5
TB-5*16 10.9
10 C480-000140 1
GUIDE, CABLE
11 V420-004100 4
CUSHION
12 C610-000060 1
FIXTURE, CUSHION
13 V495-002880 1
BAND
14 V805-000150 1
BOLT, TORX 5
TB-5*16 10.9
15 V490-001220 1
CLIP
