ECHO INCORPORATED ECHO SRM-420ES (деталировка) [4/22] Crankcase fancover
![ECHO INCORPORATED ECHO SRM-420ES (деталировка) [4/22] Crankcase fancover](/views2/2011429/page4/bg4.png)
SRM-420ES/U(37)

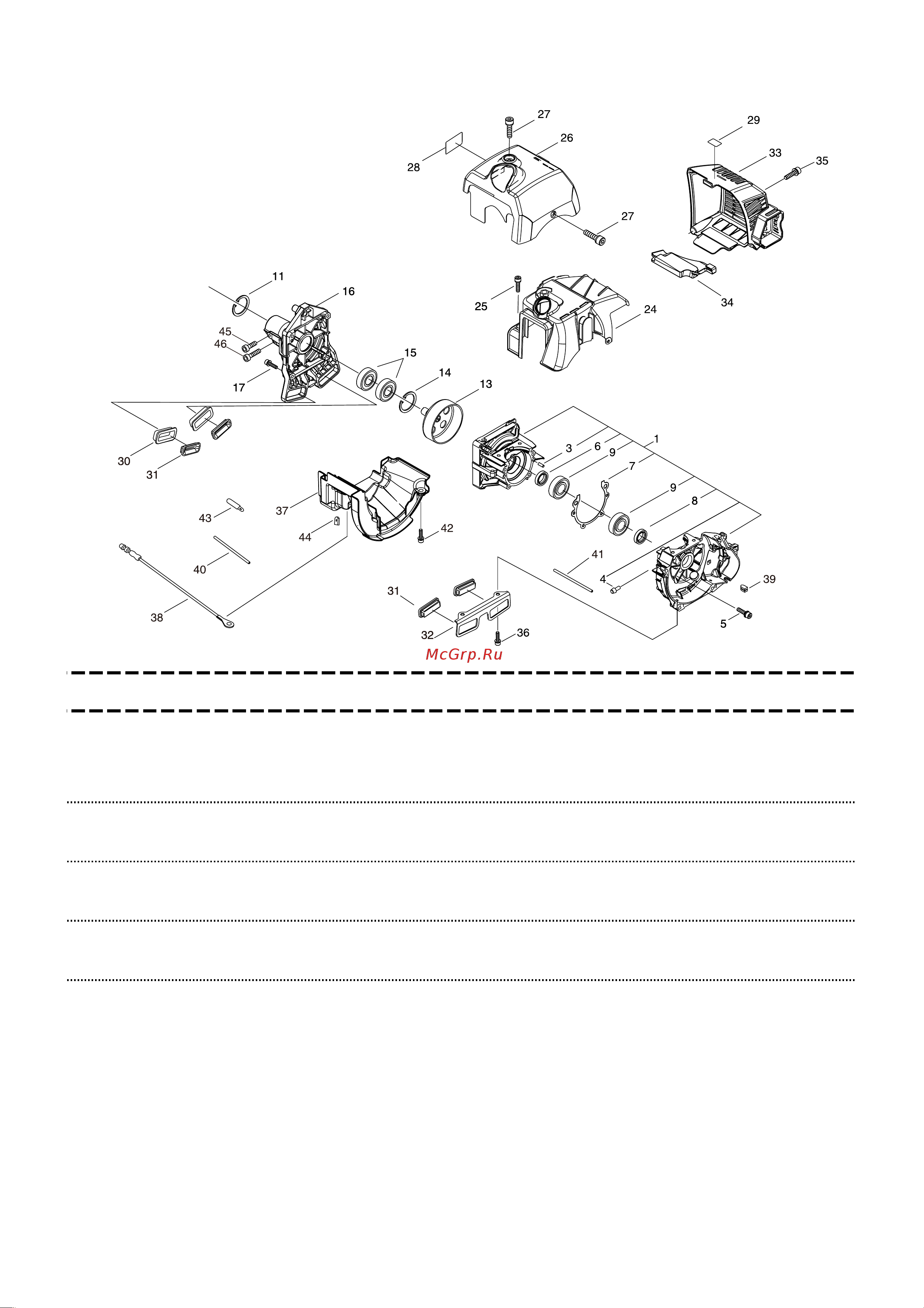

2. CRANKCASE, FANCOVER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
34 V541-000540 1
SEAL
35 V805-000260 2
BOLT, TORX 5
TB-5*25 10.9
36 V805-000150 2
BOLT, TORX 5
TB-5*16 10.9
37 A209-000740 1
PLATE, INSULATOR
38 V485-002570 1
LEAD
39 156114-07320 1
GROMMET
40 V475-007610 1
TUBE
8*9*114
41 V471-004040 1
PIPE
3*6*165
42 V835-000000 2
BOLT, TORX 5
43 159116-21231 1
CLAMP
44 156110-04920 1
BUSHING
45 V805-000130 1
BOLT, TORX 5
TB-5*10 10.9
46 V805-000160 1
BOLT, TORX 5
TB-5*20 10.9
- 3 -
