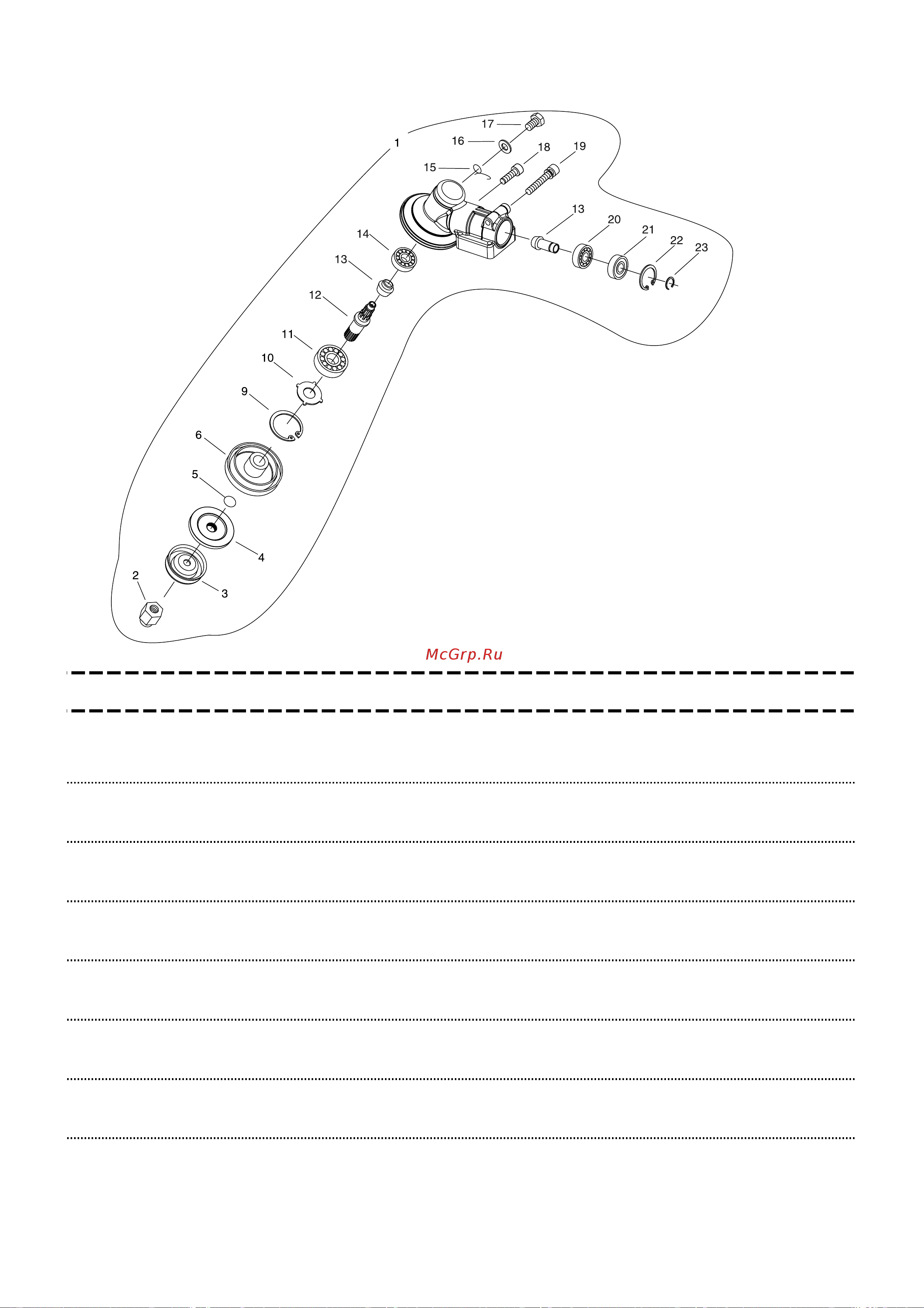

SRM-420ES/U(37)
10. GEAR CASE
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 P021-041340 1
CASE,GEAR
2 + 610320-52130 1
NUT 10
3 + 699229-56830 1
PLATE, COVER
4 + 610314-52130 1
PLATE, ADAPTER (L)
5 + 900720-00012 1
O-RING 12
P-12
6 + 610313-52932 1
FIXTURE,BLADE
9 + 900702-00032 1
CIRCLIP 32
CR-32
10 + 610444-56830 1
WASHER
11 + 900812-06201 1
BEARING, BALL 6201
12 + 610310-56931 1
SHAFT, P.T.O.
13 + 610300-56930 1
GEAR SET
14 + 900810-00629 1
BEARING, BALL 629
15 + V452-001310 1
SPRING,TORSION
16 + 900603-50008 1
WASHER
8.5*18*0.8T
17 + 610434-50031 1
BOLT 8* 8
M8*8
18 + V805-000130 1
BOLT, TORX 5
TB-5*10 10.9
19 + V806-000100 1
BOLT, TORX 6
TB-6*30 10.9
20 + 900800-06001 1
BEARING, BALL 6001
21 + 900803-06001 1
BEARING, BALL 6001
22 + 900702-00028 1
CIRCLIP 28
CR-28
23 + 900701-00012 1
CIRCLIP 12
CS-12
- 11 -
