SRM-420ES/U(37)

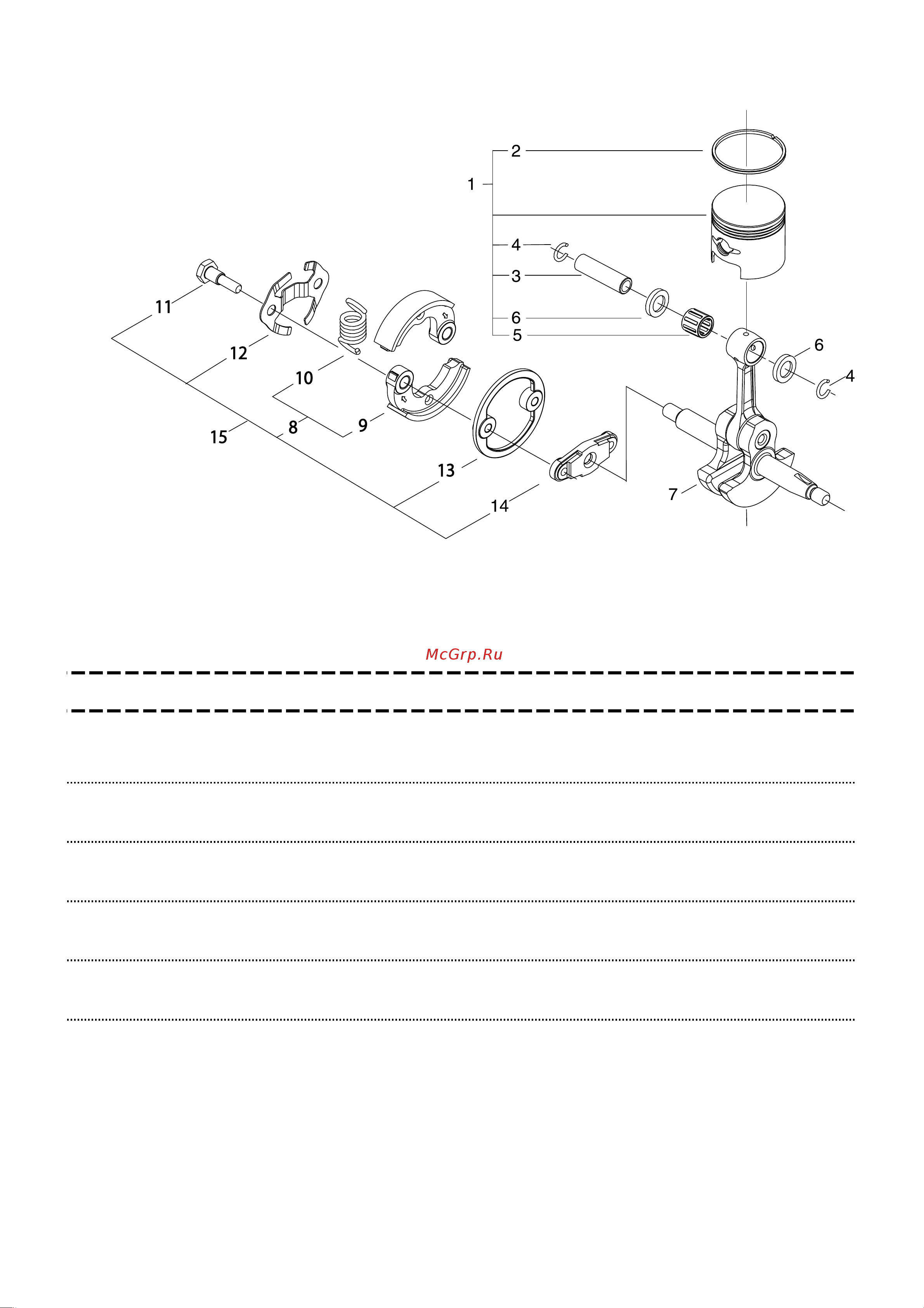

3. CRANK SHAFT, PISTON
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 P021-041390 1
PISTON KIT
2 + A101-000160 2
RING, PISTON
40*B1.5*T1.8
3 + V608-000000 1
PIN,ENG 10
4 + V580-000010 2
RING,END
0.8
5 + 100012-19830 1
BEARING, NEEDLE
6 + 100014-17330 2
SPACER, PISTON PIN
7 A011-001230 1
CRANKSHAFT,ASY
15 P021-041140 1
CLUTCH ASY
8 + P021-041130 1
CLUTCH SHOE SET
9 ++ A553-000170 2
ARM, CLUTCH
10 ++ A566-000230 1
SPRING, CLUTCH
11 + A557-000190 2
SHAFT, CLUTCH
12 + V453-000230 1
SPRING,FLAT
13 + V376-001980 1
SPACER
14 + A552-000390 1
HUB, CLUTCH
- 4 -
