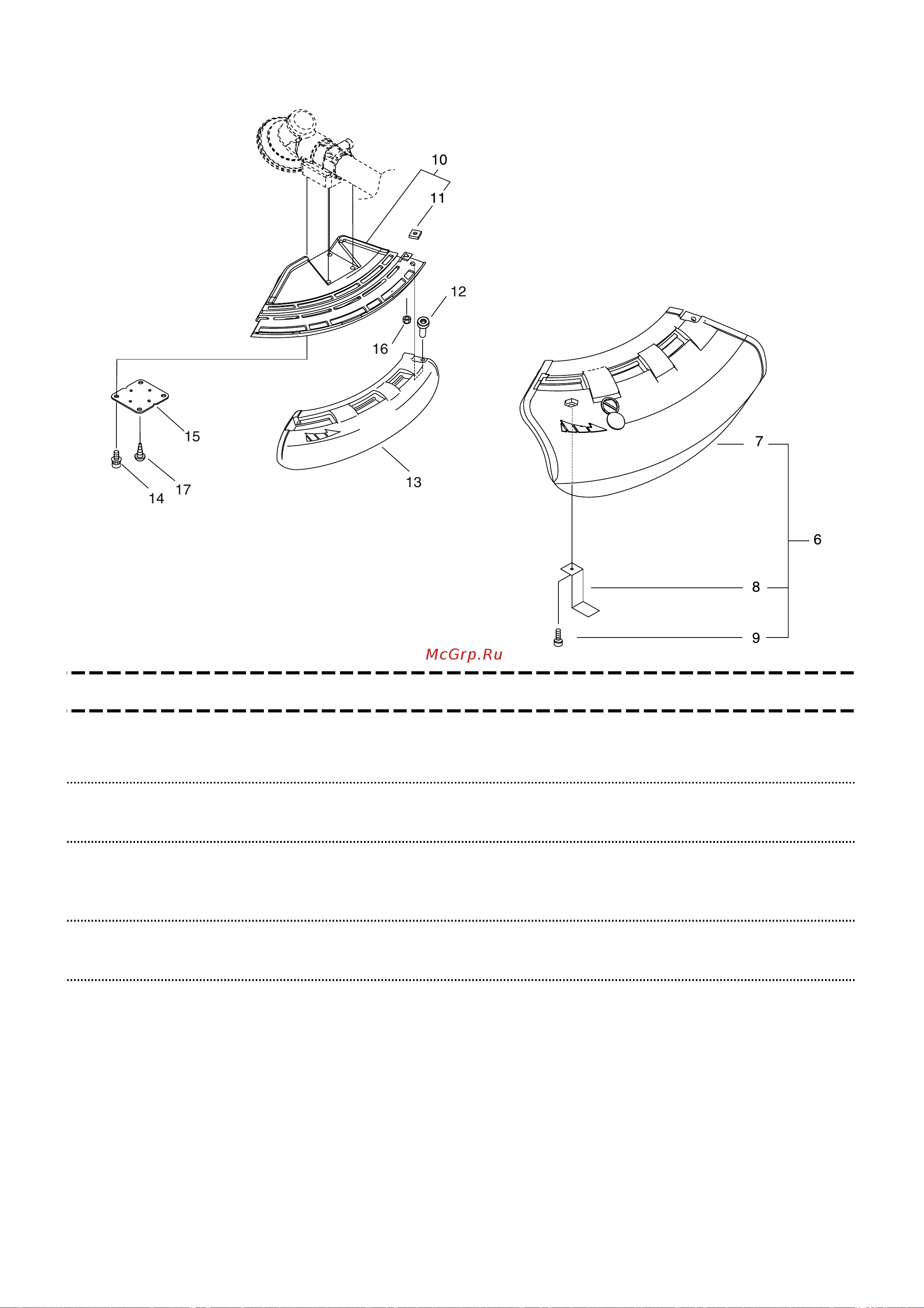

SRM-420ES/U(37)
13. SHIELD
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
6 P021-041320 1
SHIELD ASY, BLADE
7 + C550-000570 1
SHIELD,BLADE
8 + C554-000030 1
KNIFE, CORD
9 + V805-000150 1
BOLT, TORX 5
TB-5*16 10.9
10 C550-000511 1
SHIELD,BLADE
11 + 900565-00005 1
NUT
5
12 V805-000170 1
BOLT, TORX 5
TB-5*25 10.9
13 C550-000551 1
SHIELD,BLADE
14 V805-000260 4
BOLT, TORX 5
TB-5*25 半10.9
15 C552-000200 1
PLATE, SHIELD
16 900562-00005 1
NUT, LOCK
5
17 91316-04010 1
SCREW
M4*10
- 14 -
