SRM-420ES/U(37)

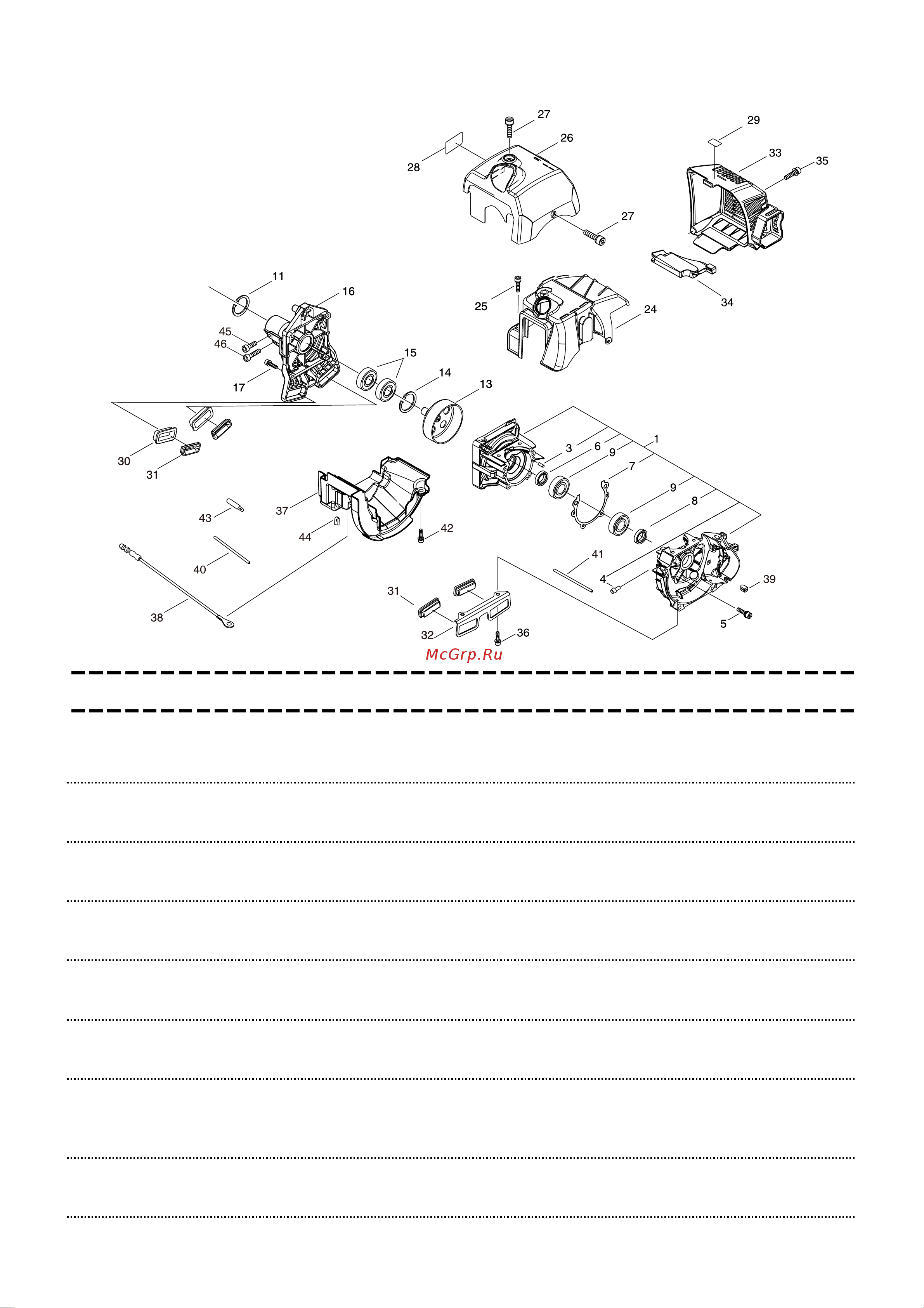

2. CRANKCASE, FANCOVER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 P021-041380 1
CRANKCASE SET
3 + 100215-03930 4
PIN, DOWEL
4 + 130113-12330 1
CONNECTER
6 + V505-000020 1
SEAL,OIL 12
12*22*7
7 + V102-000250 1
GASKET,CRANKCASE
8 + 100213-05530 1
OILSEAL
ISCD 12 22 7
9 + 900888-36201 2
BEARING, BALL 6201
6201
5 V805-000290 4
BOLT, TORX 5
TB-5*35 12.9
11 900701-00012 1
CIRCLIP 12
CS-12
13 A556-001540 1
DRUM, CLUTCH
14 900702-00028 1
CIRCLIP 28
CR-28
15 94018-46001 2
BEARING, BALL
16 A570-000290 1
CASE,CLUTCH
17 V805-000170 4
BOLT, TORX 5
TB-5*25 10.9
24 A160-002620 1
COVER,CYLINDER
25 V835-000000 1
BOLT, TORX 5
26 A160-002630 1
COVER,CYLINDER
27 V835-000000 2
BOLT, TORX 5
28 X547-002290 1
LABEL,ECHO
ECHO SRM-420ES
29 X505-002310 1
LABEL,CAUTION
HOT CAUTION
30 V423-000090 2
HOLDER,CUSHION
31 131920-61830 4
CUSHION, FUEL TANK
32 A393-000300 1
BRACKET,FUEL TANK
T1.5
33 A320-000970 1
COVER,MUFFLER
SRM-420ES
- 2 -
