ECHO INCORPORATED ECHO SRM-420ES (деталировка) [7/22] Recoil starter
![ECHO INCORPORATED ECHO SRM-420ES (деталировка) [7/22] Recoil starter](/views2/2011429/page7/bg7.png)
SRM-420ES/U(37)

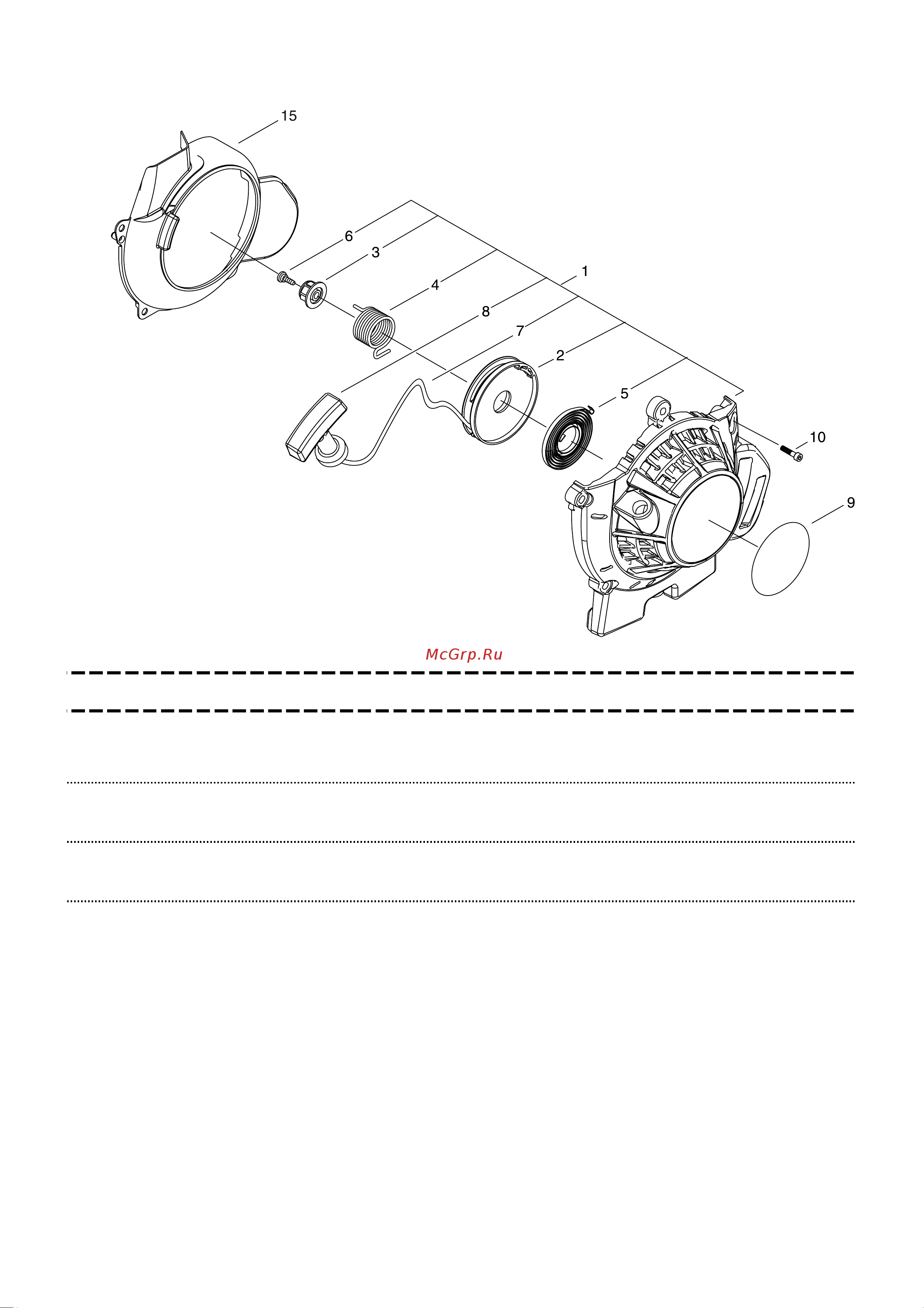

5. RECOIL STARTER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 A051-002630 1
STARTER,RECOIL ASY
2 + P022-023140 1
DRUM, STARTER
3 + P022-033830 1
CAM
4 + P022-023120 1
SPRING,DAMPER
5 + P022-004680 1
SPRING, SPIRAL
6 + P022-023110 1
SCREW
7 + P022-023100 1
ROPE, STARTER
8 + 177228-27030 1
GRIP, STARTER
9 X502-000900 1
LABEL,ECHO
10 V835-000030 4
BOLT, TORX 5
TB-5*20 10.9
15 A172-002240 1
COVER,FAN
- 6 -
