SRM-420ES/U(37)

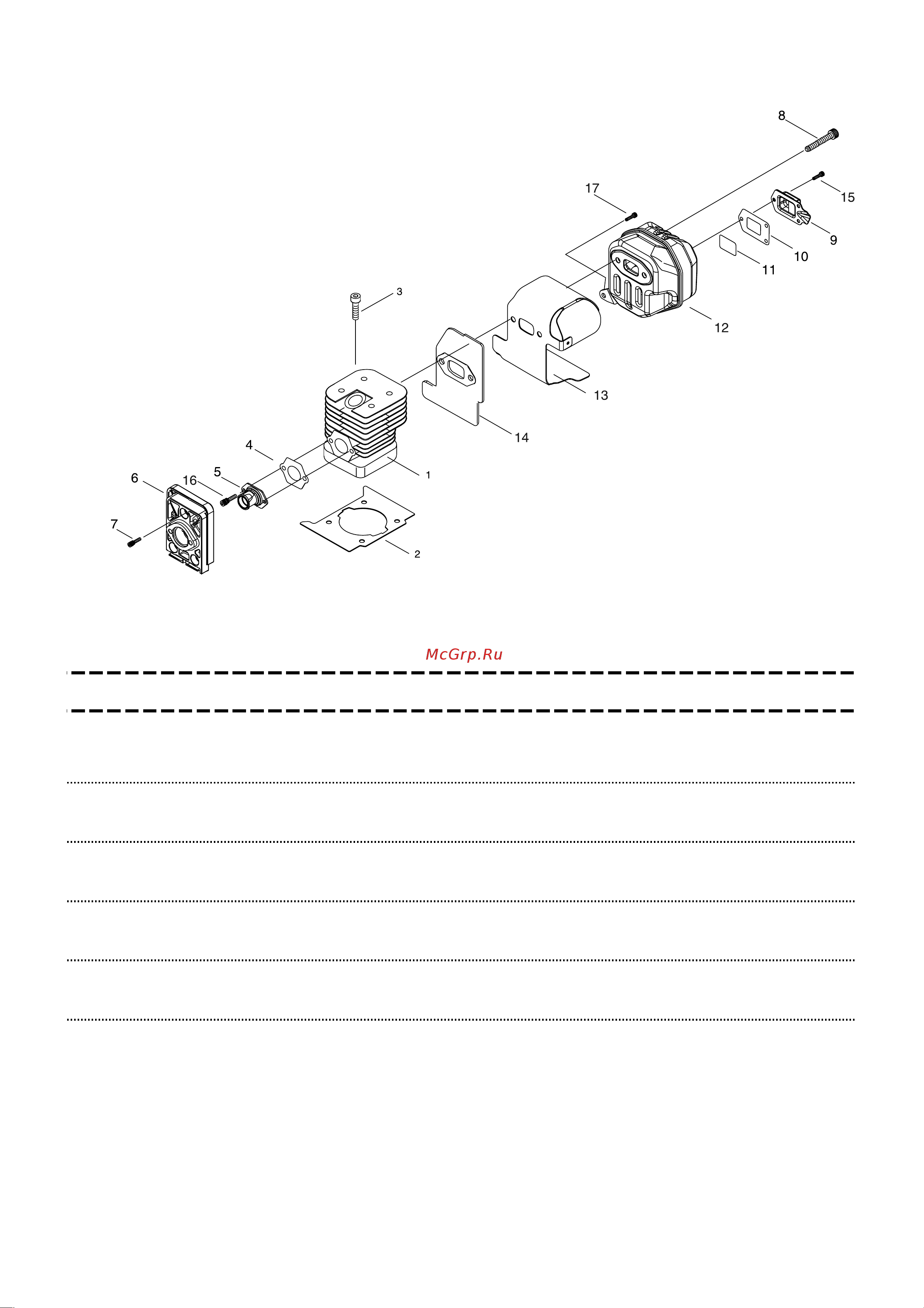

1. CYLINDER, MUFFLER
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 A130-002070 1
CYLINDER
2 V100-000760 1
GASKET,CYL
3 V805-000210 4
BOLT, TORX 5
TB-5*20 12.9
4 V103-001620 1
GASKET,INTAKE
5 A202-000250 1
BELLOWS, INTAKE
6 A200-000990 1
INSULATOR, INTAKE
7 V835-000030 3
BOLT, TORX 5
TB-5*20 10.9
8 V806-000050 2
BOLT, TORX 6
TB-6*20 12.9
9 A313-001910 1
GUIDE, EXHAUST
10 V104-002040 1
GASKET,EXHAUST
11 145862-40630 1
SCREEN, MUFFLER
12 A300-001700 1
MUFFLER, EXHAUST
13 V104-002020 1
GASKET,EXHAUST
14 V104-002030 1
GASKET,EXHAUST
15 V804-000080 3
BOLT, TORX 4
TB4*8
16 V835-000010 2
BOLT, TORX 5
TB-5*12 10.9
17 V805-000250 1
BOLT, TORX 5
TB-5*16 12.9
- 1 -
