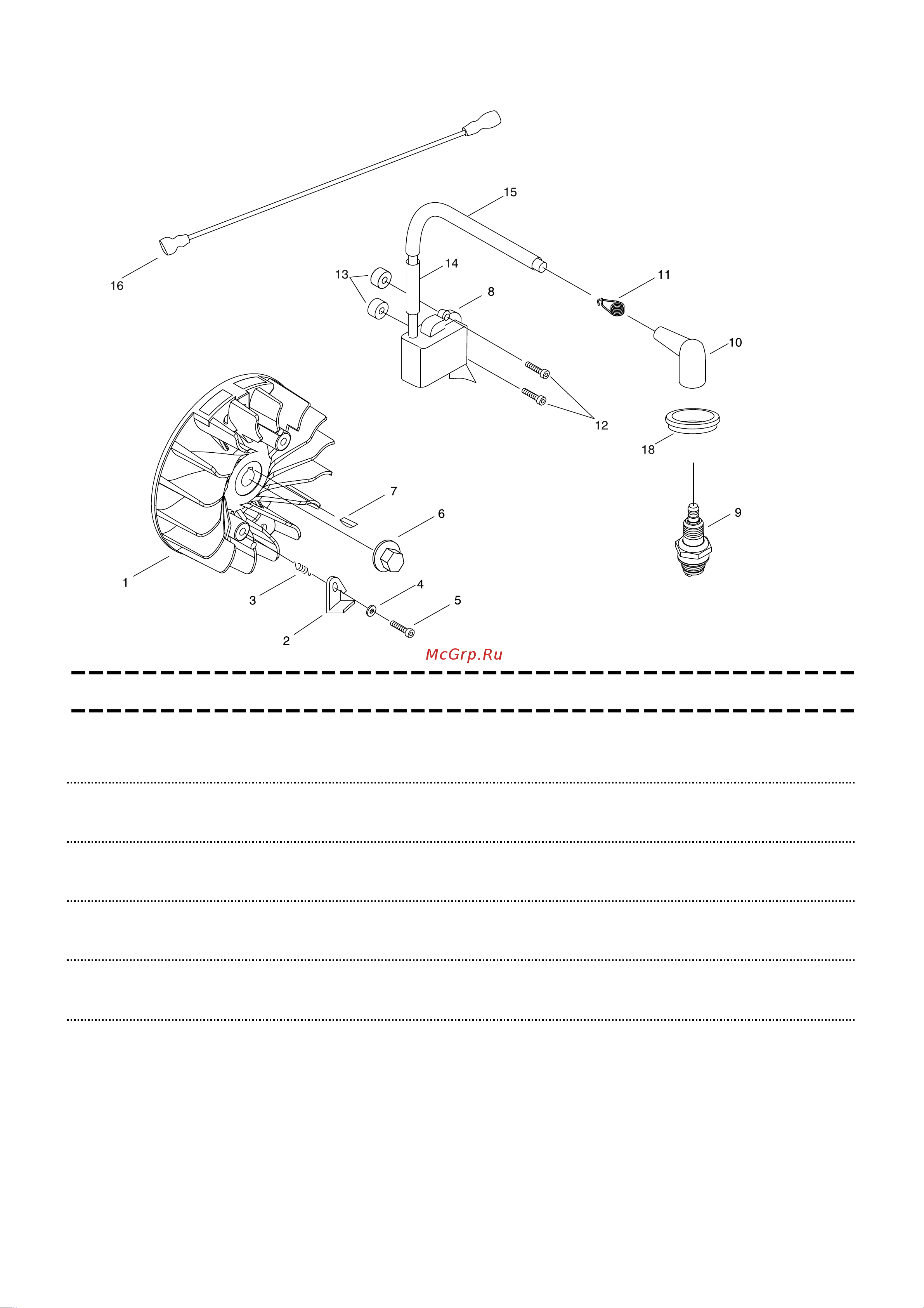

SRM-420ES/U(37)
4. MAGNETO
KEY
LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 A409-001210 1
ROTOR, MAGNETO
2 A514-000280 2
PAWL
3 V452-001470 2
SPRING,TORSION
4 177247-04630 2
SPACER, RATCHET
5.2*8*2.1
5 V805-000140 2
BOLT, TORX 5
TB-5*12 10.9
6 92105-08000 1
NUT, FLANGE
M8*1.25 L
7 100142-12330 1
KEY, WOODRUFF
8 A411-001370 1
COIL, IGNITION
9 A425-000000 1
SPARKPLUG
BPMR8Y
10 A427-000060 1
CAP,SPARK PLUG
11 A426-000010 1
TERMINAL,SPARKPLUG
12 V805-000150 2
BOLT, TORX 5
TB-5*16 10.9
13 V353-000630 2
COLLAR,5
14 V475-007540 1
TUBE
15 V475-007550 1
TUBE
16 V485-002331 1
LEAD
18 A429-000090 1
COVER,CAP
- 5 -
