English
10

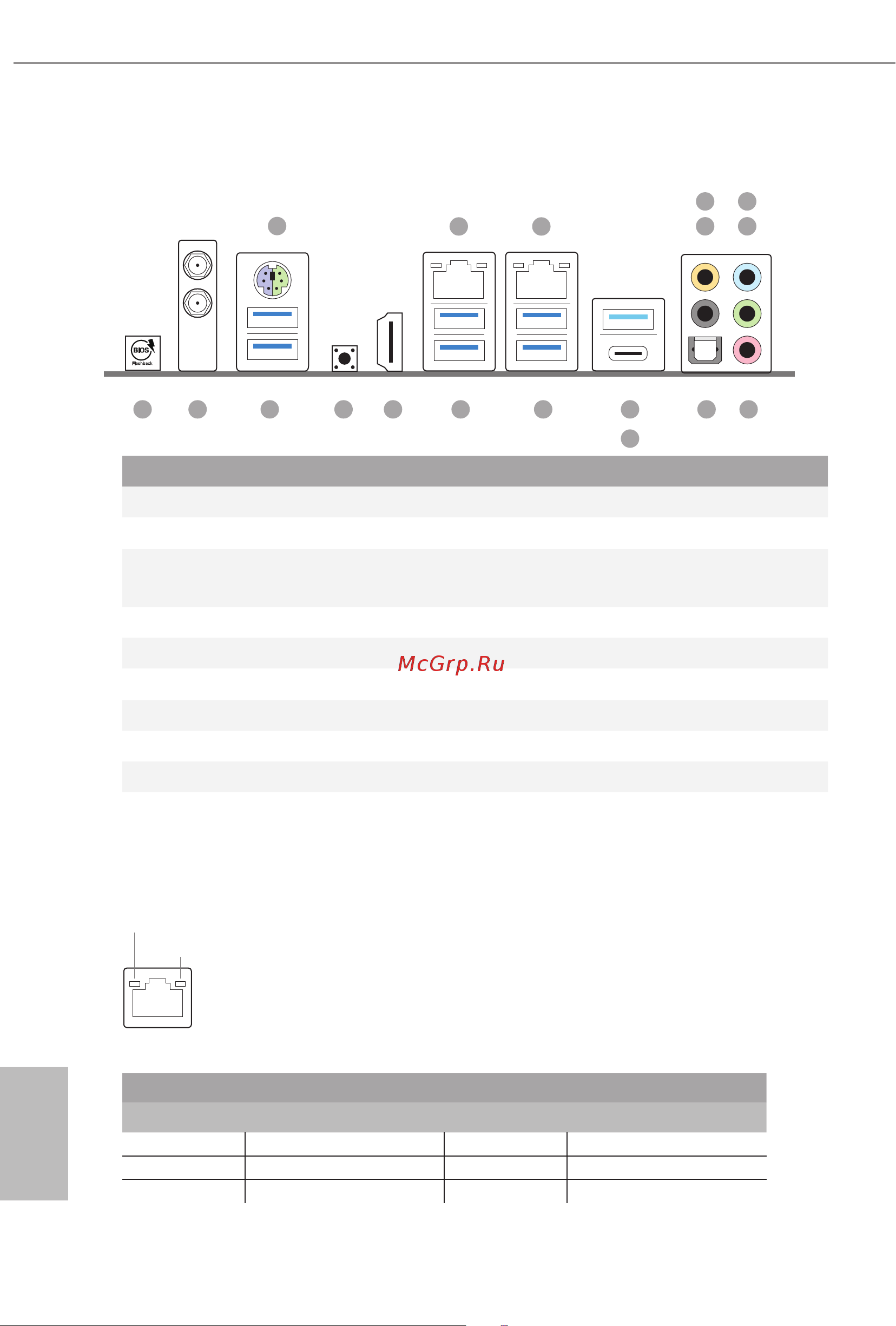

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port (PS2_KB1) 10 USB 3.2 Gen2 Type-A Port (USB31_TA_1)
2 LAN RJ-45 Port (Intel® I211AT)* 11 USB 3.2 Gen2 Type-C Port (USB31_TC_1)
3
2.5G LAN RJ-45 Port(Dragon
RTL8125AG)**
12 USB 3.2 Gen1 Ports (USB3_5_6)****
4 Central / Bass (Orange) 13 USB 3.2 Gen1 Ports (USB3_3_4)
5 Rear Speaker (Black) 14 HDMI Port
6 Line In (Light Blue) 15 Clear CMOS Button
7 Front Speaker (Lime)*** 16 USB 3.2 Gen1 Ports (USB3_1_2)
8 Microphone (Pink) 17 Antenna Ports
9 Optical SPDIF Out Port 18 BIOS Flashback Button
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
11
1
891016
5
4
7
6
151718 1314
2
12
3
